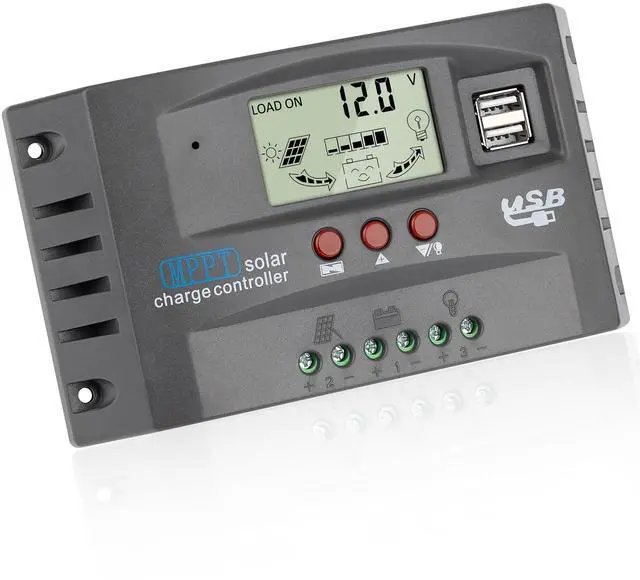

60A MPPT Solar Charge Controller 12V/24V Auto Tracking Solar Panel Regulator with Dual USB Port, LCD Display and 3 Timer Settings Suitable for Lead-Acid/Lithium-Ion/Lithium Iron Phosphate Battery Grey
- Upgraded MPPT Solar Panel Controller: The 60A solar controller adopts innovative MPPT technology and is equipped with an industrial-grade main control chip. Its tracking efficiency can reach up to 99%, and its charging efficiency is 15-30% higher than that of standard controllers (continuously detecting during the charging process, with bidirectional focusing tracking and automatic focusing tracking for charging). Anti-backflow circuit design, ultra-low heat generation.
- Compatible Battery TypesThe 60A MPPT charging controller is compatible with various lead-acid batteries (including open, sealed, AGM batteries, etc.). If you want to charge lithium batteries, you need to be very familiar with the characteristics of lithium batteries. After connecting the power, the charging parameters must be set properly before use.

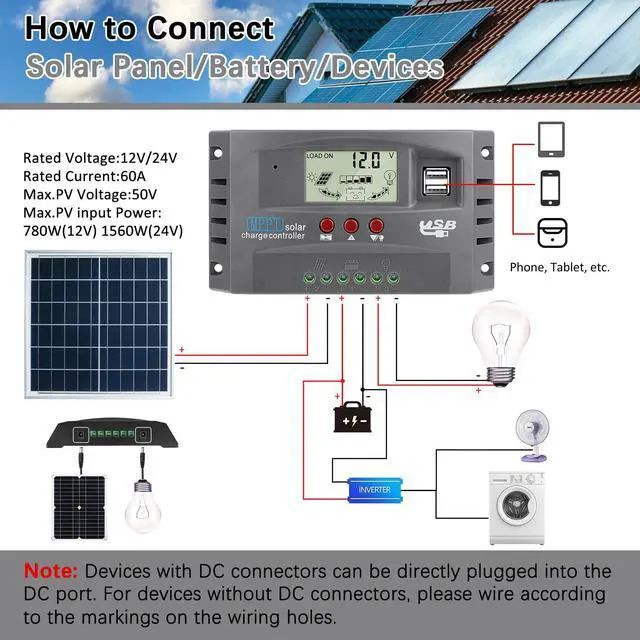

- Automatic Recognition of 12V/24V: After connecting the positive and negative terminals of the battery to the controller as shown in the diagram, the controller will automatically detect the battery voltage and automatically identify 12V/24V. When installing for the first time, please ensure that the battery has sufficient voltage so that the controller can recognize it as the correct battery type.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical Parameters of 60A MPPT Solar Panel Charging Controller:
Batt voltage: 12V/24V auto
Charge current: 60A
Discharging current: 30A
Max solar input: For 12V batteries: 15-23V solar panels, for 24V batteries: 30-46V solar panels
Float charge: 14.2V (default, adjustable)
Discharge stop: 10.5V(default, adjustable)
Discharge reconnect: 12.6V (default, adjustable)
Voltage of open light: Solar panel 8V(Light lights delay)
Voltage of close light: Solar panel 8V(Light off delay)
USB output: 2 way USB output, 5V/2A(MAX)
Self-consum: <10mA
Operating temperature: -35~+60°C

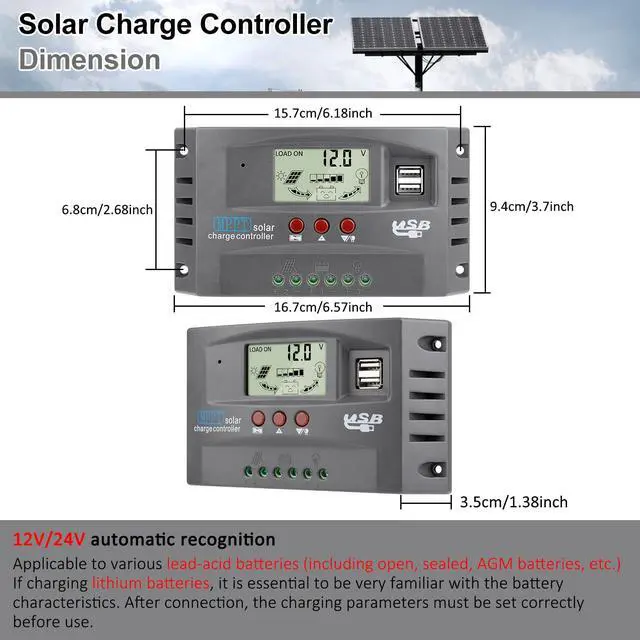

Size/Weight: 168*95*45mm/300g
What You Get:
1* 60A MPPT Solar Charge Controller
1* English Instruction Manual
