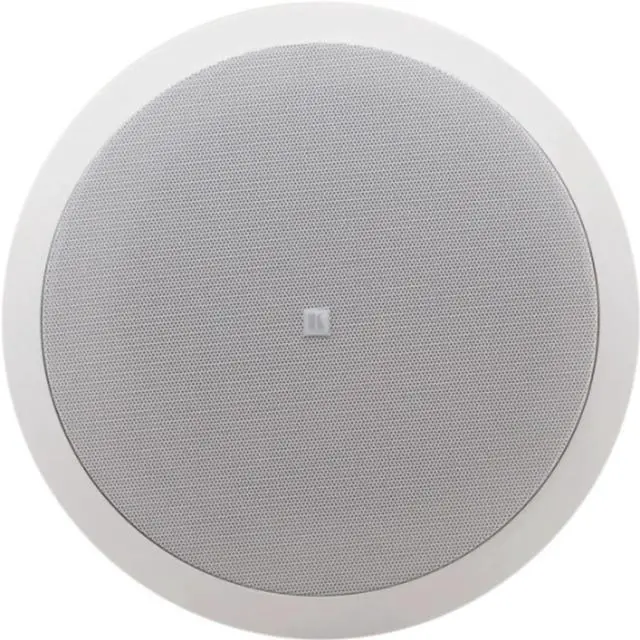

Kramer GALIL-8-C-PAIR 8in 2 Way Closed Back Ceiling Speakers 60-000057

Product Information

• Part Number: 60-000057
• Product Name: Kramer GALIL-8-C-PAIR 8in 2 Way Closed Back Ceiling Speakers
• Manufacturer: Kramer
• Color: White
• Product Type: Ceiling Speakers

Product Description

The Kramer GALIL-8-C-PAIR is a set of two 8-inch, 2-way coaxial ceiling speakers designed for a variety of commercial audio applications such as conference rooms, hotels, and classrooms. The closed-back design ensures a more controlled sound dispersion and prevents sound from leaking into adjacent spaces. These speakers feature a multi-tap power transformer that allows for selection between 8 impedance or 70V/100V power settings, providing flexibility for array installations. The speakers are UL 1480 and UL 2043 approved for safety and fire resistance in plenum spaces. The package includes a ceiling mounting kit for easy installation and a template for accurate cut-out dimensions.

Product Specifications

• Speaker Type: 2-way, coaxial, closed-back
• Woofer: 8" (20.3 cm) polypropylene cone
• Tweeter: 1" (2.5 cm) silk dome
• Frequency Response: 65 Hz to 20 kHz @ -10 dB
• Power Handling: 64W RMS, 180W continuous program
• Impedance: 8 (when transformer is off)
• Transformer Taps: 70V: 64W/32W/16W/8W/4W/Off (Lo-Z); 100V: 64W/32W/16W/8W/Off (Lo-Z)
• Sensitivity: 89 dB SPL, 1W @ 1m
• Coverage Angle: 110°
• Dimensions: 12" (30.5 cm) external diameter
• Cutout Diameter: 10.75" (27.3 cm)
• Mounting Depth: 8.9" (22.6 cm)
• Weight (per speaker): 10.8 lbs (4.9 kg)
• Material: ABS bezel, aluminum grille, metal back can
