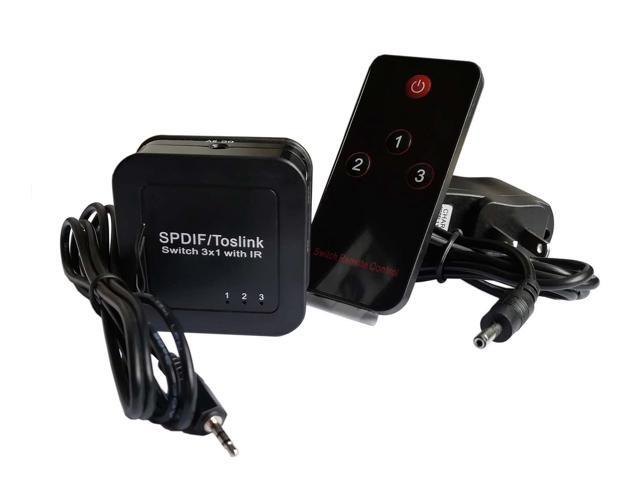

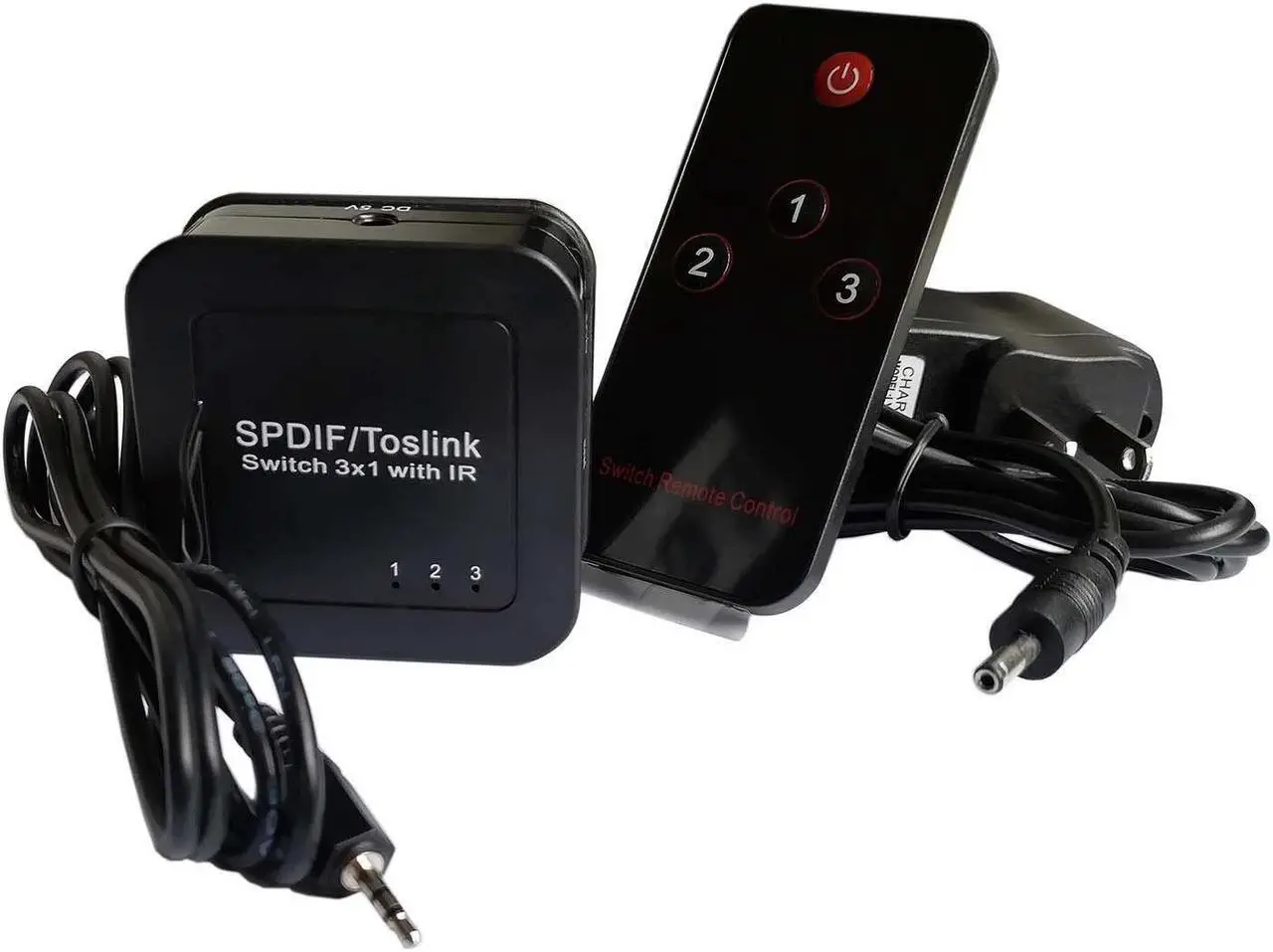

3 x1 SPDIF TOSLINK Optical Digital Audio Switch with Infrared Remote Control and Remote Control

This SPDIF/Toslik Digutal Optical Audio Switchers can let the users to connect three digital optical Toslink sources to one optical Toslink (SPDIF) input on your AV amplifier.
Specifications Support audio format: LPCM 2.0 /DTS/Dolby-AC3
Peak wavelengtht: 650nm
Max baud ratet: 16Mbps
Output cable distance: =40m(Use the optical fiber cable loss less the 0.2D b/m)
Power Supply: USB Power
Cable Operating Temperature ranget: (0 to 40? )
Operating Humidity range: 5 to 90%RH (No condensation) Features Three ways of optical fiber signals switch to one sets of SPDIF/Toslink signal receiving device Support signal retiming
Audio format support: LPCM 2.0 /DTS/Dolby-AC3 Use optical fiber cable loss less the 0.2D b/m, Output distance is up to 40m The input control can through R/M and also can directly press the button Support last time working state memory when power off Over-voltage protection can prevent the damage caused by connecting unmatched to the machine LED status indication No loss of quality Installs in minutes Connection and Operation A. If no sound output, (1) Check the signal receiving equipment and the machine connected are in good condition (2) To check if the signal source is on and well connected (3) Check the system connection quality (4) Check if the line is all quality B. If sound interrupted, please try again to connect the cable to be free from the unsuccessful connection. Package include 1 X SPDIF Toslink Switcher 3x1 1 X USB Power Cable 1 X Remote control 1 X IR extender receiver 1 X User Manual #optical switch #optical switcher with remote #optical switcher #audio switcher box #3x1 optical switch
