Analog to Digital Converter RCA to Optical Toslink Digital Audio Converter Adapter

This Analog to digital audio converter is designed for either home or professional audio switching. It converts analog stereo audio signal from R/L input to coaxial and toslink outputs simultaneously. You can connect either or both outputs to an appropriate digital audio input on a TV, AV receiver, or anything else.
Specifications Input Audio: L/R audio
Output Audio: Coaxial + Toslink digital audio signals

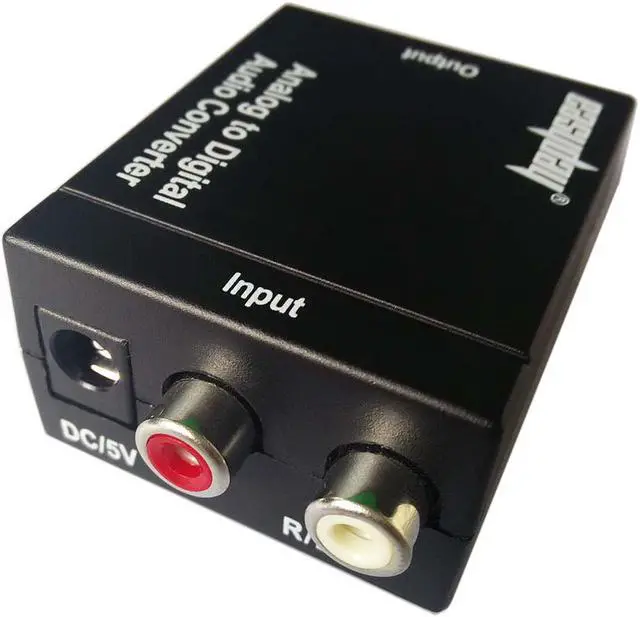

Input audio connector: 2 x RCA(R/L)

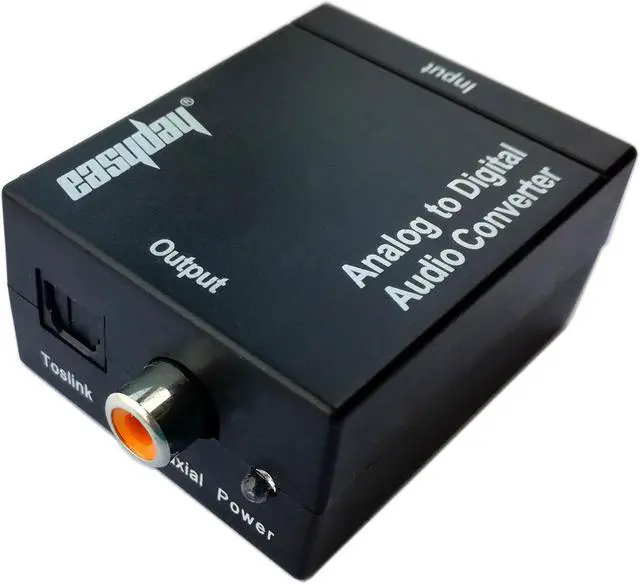

Output audio connector: 1 x Toslink, 1 x RCA (Coaxial)
Frequency Response: < +/- 0.5 dB 20Hz-20kHz
Crosstalk: < -85dB RMS Level (CH1 /
CH2): 1.0 Vrms analog input at the - 7.4 dBFS digital output level
Power input: 5V
DC Dimensions: 50X40X35MM
Weight (Net): 56g Feature Simply plug in your analog audio source into the RCA input ports, then connect your digital receiving device to your choice of either coaxial or optical digital output. Both digital outputs may also be used simultaneously. Power-cycle all connected equipment, and you will be enjoying digitally converted audio from your analog source at the receiving device. The digital output signals will be a 2 channel uncompressed LPCM (linear pulse code modulation) with sampling rate at 48KHz. Very user-friendly, easy to learn, and easy to install. Converts analog L/R RCA input to SPDIF Optical or Coaxial digital PCM audio. Supports 48 kHz output sampling frequency. Supports uncompressed 2-channel LPCM digital audio signal output. Provides electromagnetic-noise-free transmission
Compatible with: TV, DVD Player, Sky box, STB, Blue-Ray player, You

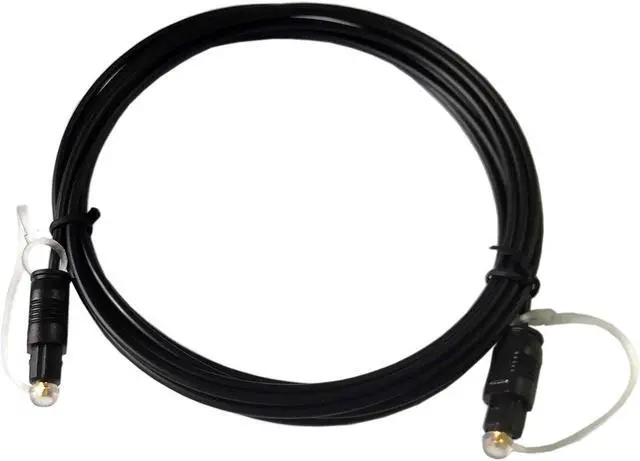

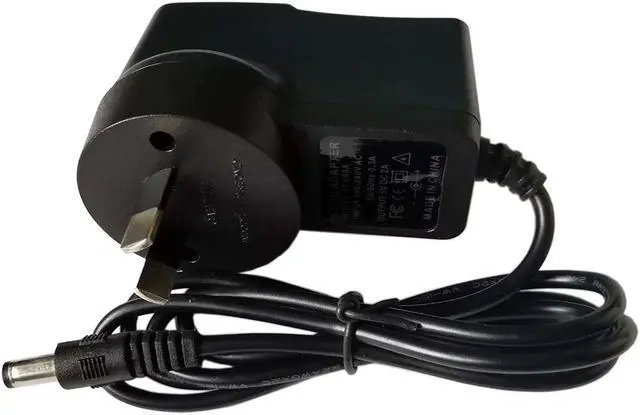

View Box, All Devices with R/L output. Ideal for interfacing between analog audio/video devices with modern digital. Package 1 x Analog to Digital Audio Converter Adapter 1 x AU Power Adapter 1 x 3.0 m Optical Fiber Cable 1 x English User Manual
