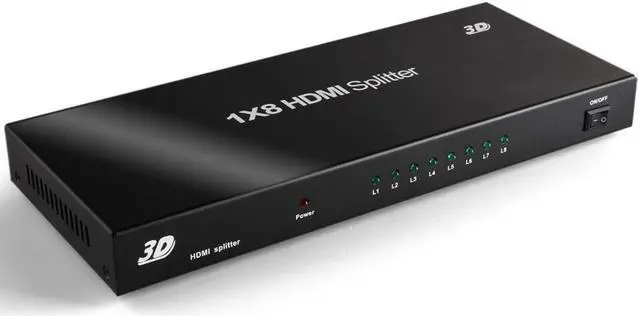

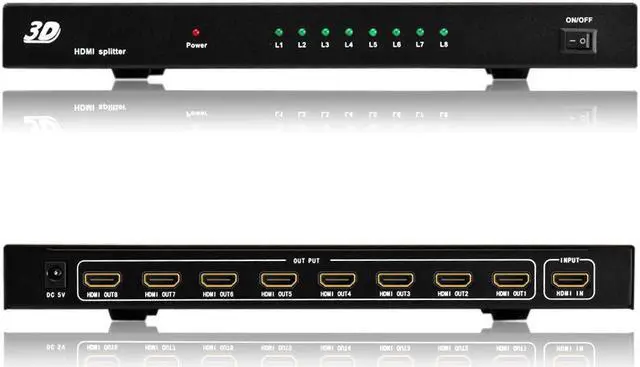

1x8 HDMI Splitter 1 In 8 Out Amplified Powered Signal Distributor Full HD 1080P

This splitter is beautiful in appearance. It distributes the input of the HDMI signal into the eight identical outputs simultaneously. It supports HDCP and the real HDMI 1.3 b. Its video amplifier bandwidth can be up to 2.25G pbs/225MHz. The HDMI Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Specifications Signal Input: HDMI Signal
Input Video Signal: 0.5 - 1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 1920X1200, 1080P
Output Video: HDMI 1.3 b+ HDCP 1.0 / 1.1 / 1.2
VGA: 640x480, 800x600, 1024x768, 1920x1200
HDMI Compliance: HDMI 1.3 b
Video Amplifier Bandwidth: 2.25G pbs/225MHz
Interlaced(50&60Hz): 480i, 576i, 1080i
Progressive(50&60Hz): 480p, 576p, 720p, 1080p
Operating Temperature: 0?? to +70??
Storage Humidity: 5% to 90 % RH (no condensation)

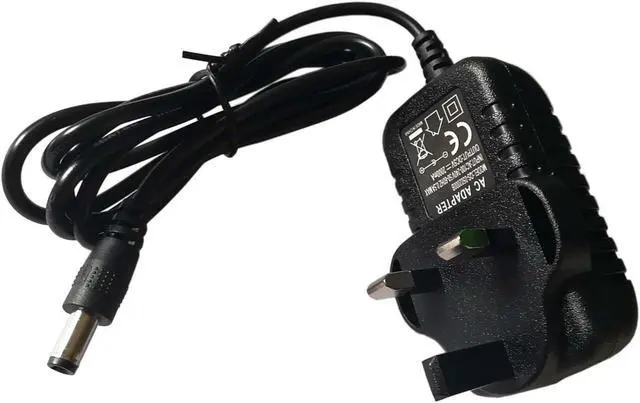

External Power Supply: 5V DC Converter Unit Cert.: FCC, CE
Power Supply Cert.: CE, FCC
Net Weight: 727g
Feature Cascaded: Large distribution achieved by cascading the HDMI Amplifier Splitter. Support HDMI 1.3 b HDCP pass-through Support highest video resolution 1080p High performance up to 2.25G bps Support uncompressed audio such as LPCM Support compressed audio such as DTS Digital, Dolby Digital( including DTS-HD and Dolby True HD ) Support 3D Package 1 x HDMI Splitter 1x8 1 x UK Power Supply Adapter 1 x English User Manual
