DSD lossless HIFI Bluetooth music mastering player digital USB hard drive turntable DTS AC3 decoding 9038
Note: The product system supports English display
Product Description
1: Support DSD, DSF, DFF (DSD64-DSD256) format music playback, DTS, AC3 format music playback support WAV, APE, FLAC, WMA, MP3 and other formats music playback.
Support 512 folders and 99999 music storage playback.
2: Support DSD playback, support Dolby AC3 and DTS decoding, imported CPU technology, powerful sound card decoding function.
3: Using ES9038Q2M as the main decoder chip, each channel independent op-amp, providing higher signal ratio and better audio separation. High sampling accuracy, low distortion, maximum restoration of high-quality audio source details support 32BIT/PCM768K\DSD256, letter ratio (DNR) up to 129DB and -120DB distortion (THD + N), with excellent decoding capabilities to provide excellent analogue
audio.
4: QCC5125 high-definition Bluetooth module technology, support LDAC, APTXHD, APTXLL, SBC, AAC.
5: can be directly connected to the pure back stage amplifier used by the RH-202X digital broadcast control, through the Canon interface or even RCA output, playback of DSD audio set the output mode for hardware decoding DSD, playback of other formats can be selected from the analog PCM output, through the optical or coaxial connection to the back stage with decoding amplifier, you can select the output analog select digital source code output multi-channel audio output, the output mode to select digital PCM for compressed two-channel output, output style select digital DOP for DSD digital audio output.
6: support for U disk, mobile hard drive and SD card multimedia playback, U disk and SD card maximum capacity of 128G / FAT32 format, hard drive 2.5 -inch or 3.5 -inch mobile hard drive (requires external power supply) maximum capacity of 2T, the hard drive format needs to be FAT32 format.
Product Parameter
Support digital audio decoding format: DOLBY DIGITAL (AC3) /DTS/PCM
USB/SD playback audio format: MP3/APE/FLAC/WAV/DTS/AC3/DSD256/SACD ISO
DSP sampling frequency: 32 ~ 768KHZ
Bluetooth parameters: Qualcomm classic chip version 5.1 Support LDAC-HD/LDAC/APTX
DSP Bit Rate: 16 ~ 32 BIT
Digital Input Level: 0.1 ~ 1.5VP -P
2.0 Analogue Output (1KHZ@ODB): 2V RMS
2.0 Balanced Output (1KHZ@ODB): 1V RMS
Signal-to-noise ratio@ODB(CCIR/ARM): 129DB
Distortion (THD+N): 0.03 % (120DB)
Frequency Response: 20HZ~20KHZ
Maximum operating current: 2.5A
Power supply voltage specification: AC 220V-230V 50HZ or AC 100V-110V 60HZ
Operating Temperature: -10~+60°C
Operating humidity: 10~90%RH (non-condensing)
Storage humidity: 5~95%RH (non-condensing)

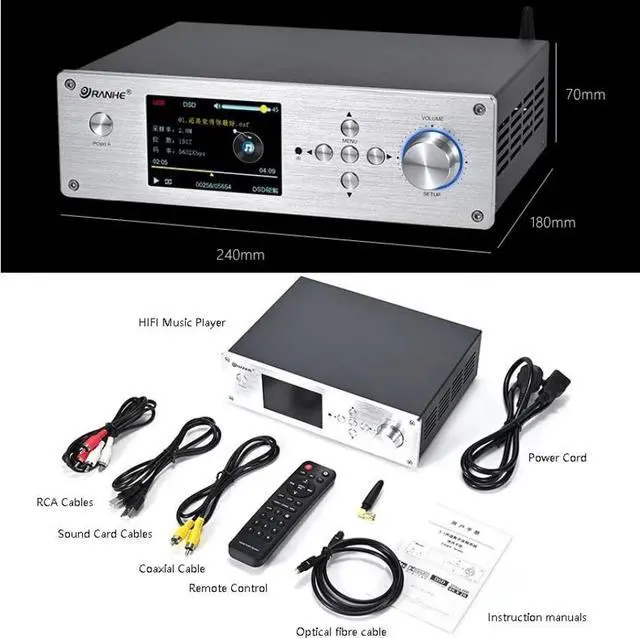

Shell size: 240MM*180MM*70MM
Net weight: 2250G
