AVPro Edge AC-DA-18X2 48Gbps 1x8 HDMI Distribution Amplifier
- 48 Gbps Support (8K FLR 6) - Full 8K bandwidth extension (select 10K FRL 3, FRL 4, and FRL 5 resolutions are supported). Available dynamic range headroom for any 8K source.
- Downscaling Each HDMI output may configured for downscaling. An 8K signal may be downscaled to 4K or 1080p, while 4K content may be downscaled to 1080p for systems with legacy display technology.
- Extracted Audio Multi-channel digital audio up to 7.1 may be intercepted from the HDMI stream and output via TOSLINK. 2-channel Analog audio may be output via the 5-pin balanced terminal block; however, note that the source must originate as 2-channel PCM.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

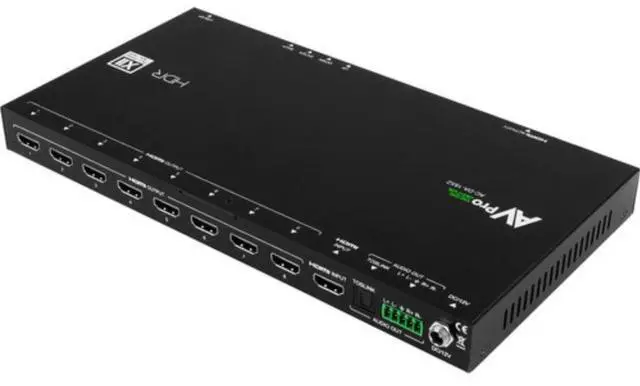

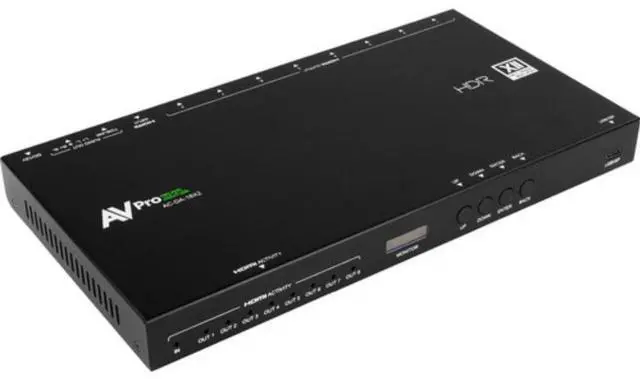

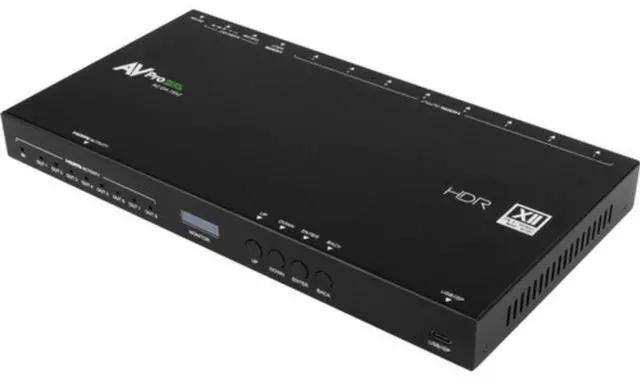

The AVPro Edge AC-DA-18X2 is a one-input to eight-output, 48 Gbps HDMI 2.1b distribution amplifier that flawlessly divides incoming HDMI signals up to 8K/60 fps into eight separate output streams.
Though designed as a next-gen 48 Gbps device, this does not preclude using the AC-DA-18X2 for large legacy system applications where installation stumbling blocks may be immediately remedied. Generationally dated but functioning displays intersecting in systems with overlapping HDMI and HDCP versions can handcuff a system into resolution downscaling all displays for compatibility. The AC-DA-18X2 enables mixed-display systems to coexist at their native rates, with plenty of available dynamic headroom.
An AC-DA-18X2 output may be scaled to provide a 3D immersive audio format signal to a decoding audio playback device still viable for that purpose, though dated for video signal passthrough, allowing the AVR or Pre-processor to remain operational for as long as required.
Box Contains
Though designed as a next-gen 48 Gbps device, this does not preclude using the AC-DA-18X2 for large legacy system applications where installation stumbling blocks may be immediately remedied. Generationally dated but functioning displays intersecting in systems with overlapping HDMI and HDCP versions can handcuff a system into resolution downscaling all displays for compatibility. The AC-DA-18X2 enables mixed-display systems to coexist at their native rates, with plenty of available dynamic headroom.
An AC-DA-18X2 output may be scaled to provide a 3D immersive audio format signal to a decoding audio playback device still viable for that purpose, though dated for video signal passthrough, allowing the AVR or Pre-processor to remain operational for as long as required.
Box Contains
- 1 x 12V Power Supply
- 1 x 5-Pin Terminal Block
- 1 x Set of Mounting Brackets
