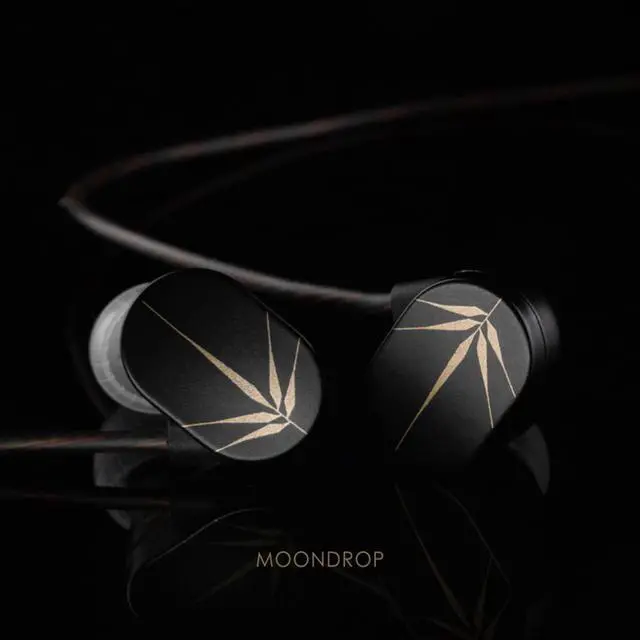

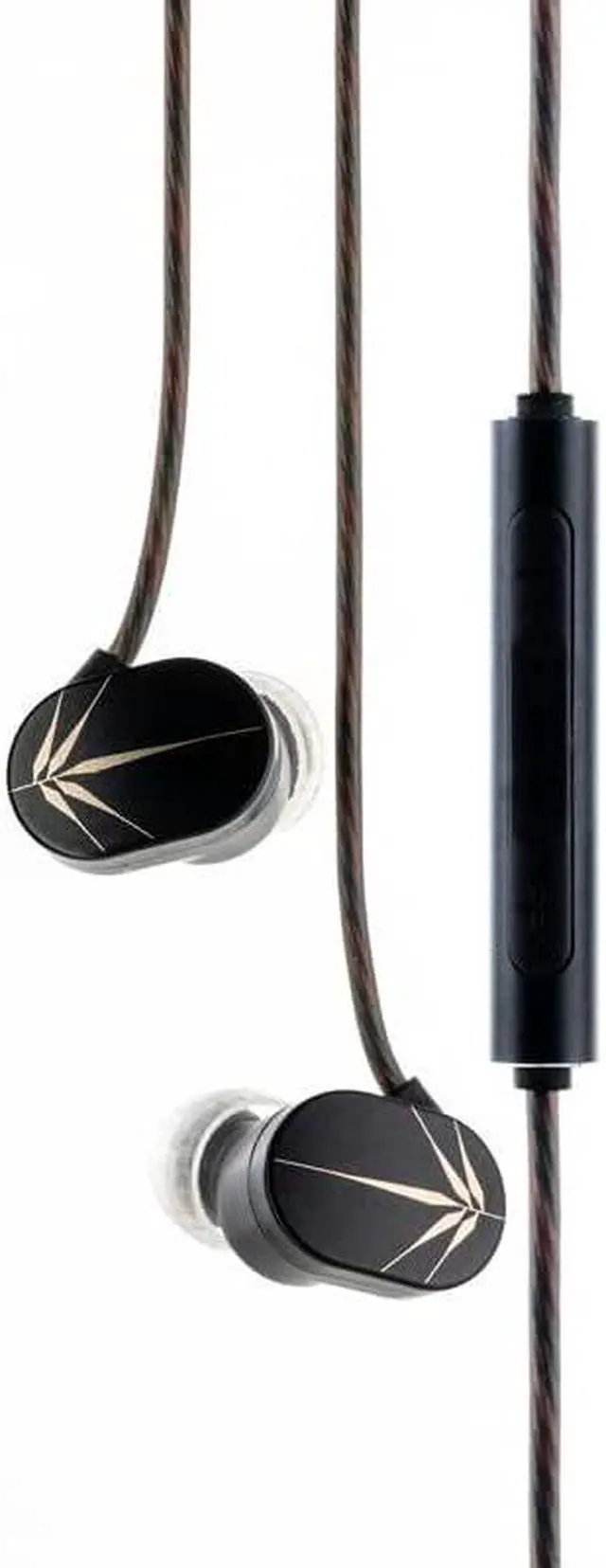

Moondrop CHU High Performance Dynamic Driver IEMs in-Ear Earphone (with mic)
- Nano-Crystal Coating Composite Diaphragm

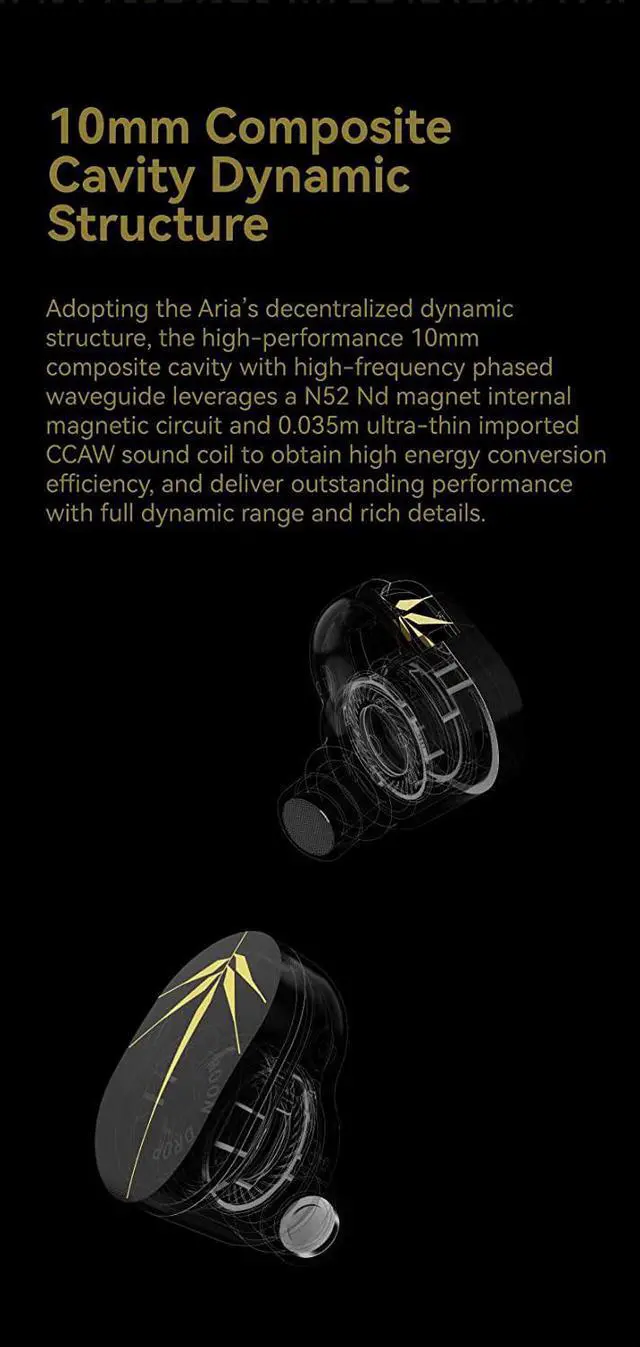

- 10mm Composite Cavity Dynamic StructureAdopting the Aria's decentralized dynamic structure, the high-performance 10mm composite cavity with high-frequency phased waveguide leverages a N52 Nd magnet internal magnetic circuit and 0.035m ultra-thin imported CCAW sound coil to obtain high energy conversion efficiency, and deliver outstanding performance with full dynamic range and rich details.

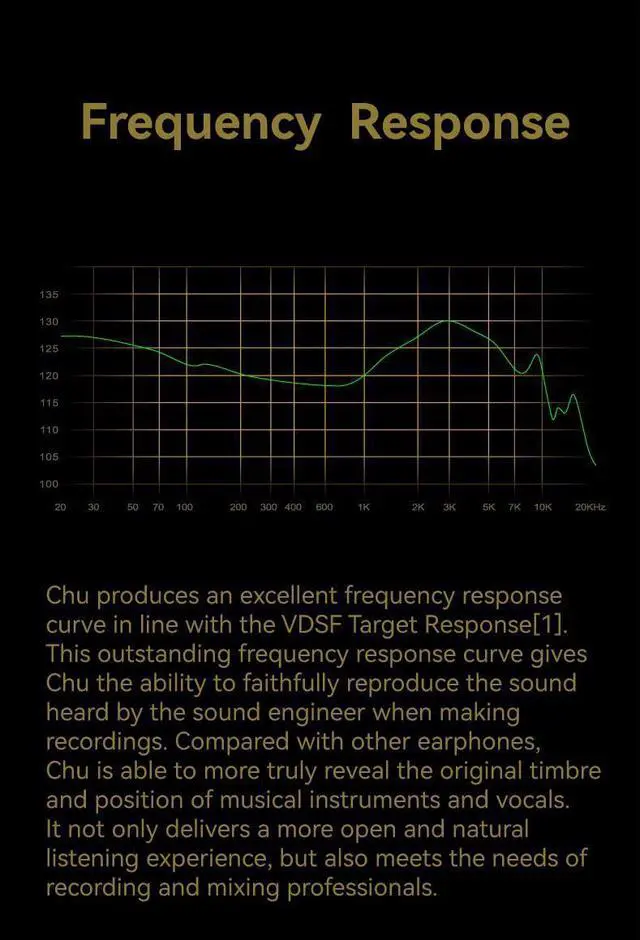

- Accurate Calculatioof Acoustic Coupling CavityIn order to match the frequency response as closely as possible to the VDSF Target Response, the acoustic coupling cavity needs to be carefully controlled. Through volume and dimension calculation, FEA finite element simulation and 3D printing experiment verification, an acoustic coupling cavity has been created which can accurately reproduce the ideal frequency response.
- Alloy Casting External CavityThe metal outer cavity is manufactured from alloy materials using melting and injection molding technology,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

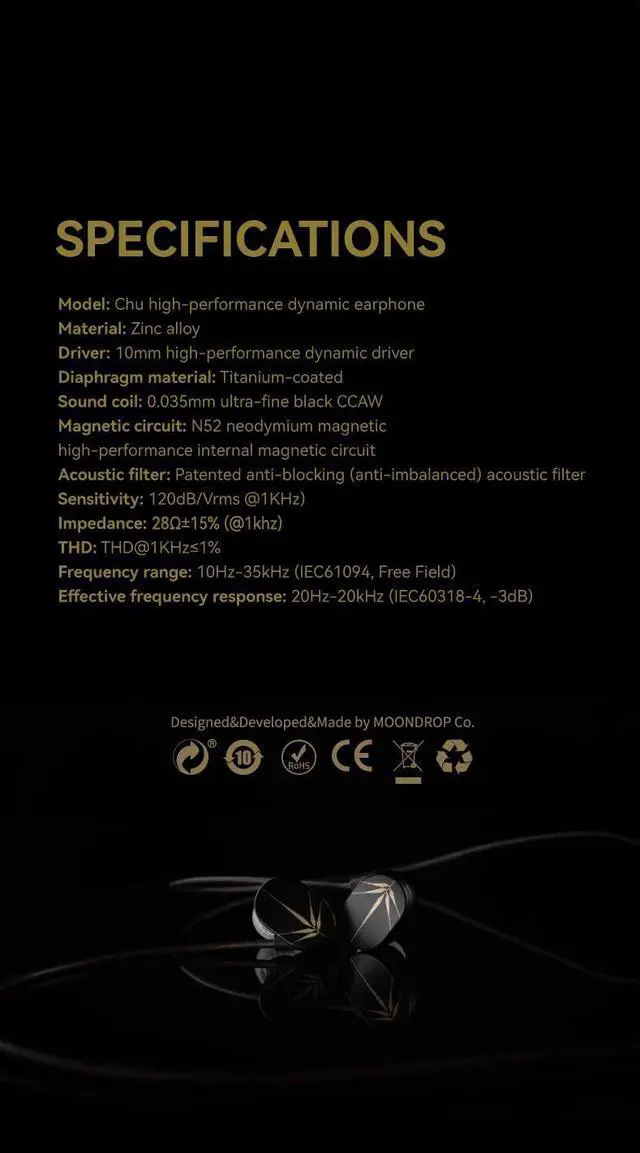

SPECIFICATIONS
Model: Chu high-performance dynamic earphone
MaterialZinc alloy
Driver: 10mm high-performance dynamic driver
Diaphragm material: Titanium-coated
Sound coil: 0.035mm ultra-fine black CCAW
Magnetic circuit: N52 neodymium magnetic
high-performance internal magnetic circuit
Acoustic filter: Patented anti-blocking (anti-imbalanced) acoustic filter
Sensitivity: 120dB/Vrms @1KHz)
Impedance: 28±15% (@1khz)
THD: THD@1 KHz1%
Frequency range: 10Hz-35kHz (EC61094, Free Field)
Effective frequency response: 20Hz- 20kHz (IEC60318-4, -3dB)
Model: Chu high-performance dynamic earphone
MaterialZinc alloy
Driver: 10mm high-performance dynamic driver
Diaphragm material: Titanium-coated
Sound coil: 0.035mm ultra-fine black CCAW
Magnetic circuit: N52 neodymium magnetic
high-performance internal magnetic circuit
Acoustic filter: Patented anti-blocking (anti-imbalanced) acoustic filter
Sensitivity: 120dB/Vrms @1KHz)
Impedance: 28±15% (@1khz)
THD: THD@1 KHz1%
Frequency range: 10Hz-35kHz (EC61094, Free Field)
Effective frequency response: 20Hz- 20kHz (IEC60318-4, -3dB)
