$34.99
Ships from China.
Meet Your Seller
Blue~Tooth Amplifier, DROK 2 Channel Wire~Less Audio Stereo Receiver Board 50W+50W 12V 24V 2A, BT 5.0 Hi-Fi Mini Power Amp with Blue~Tooth/AUX/USB Input for Headset Speaker Home Sound System DIY

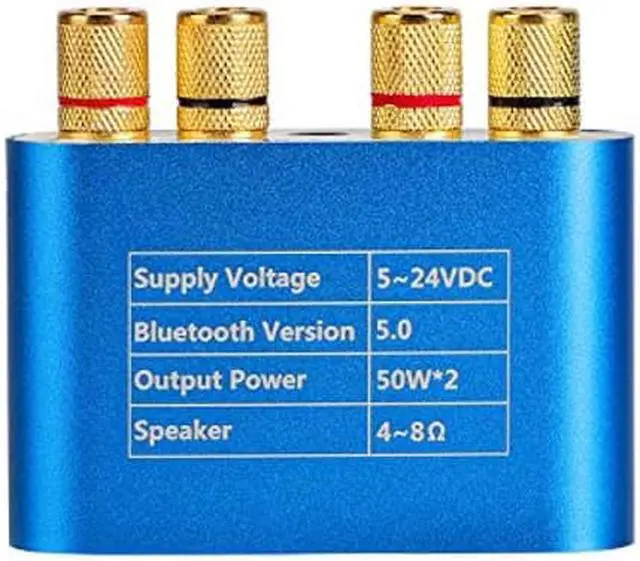

- Parameter --- Power supply voltage: DC 5-27V, over 2A (the best input range is 8-24V), can be powered by 12V or 24V; Dual channel: Left and right channels; Output power: 50W+50W, recommended 4O/8O speakers; Blue~tooth version: 5.0.

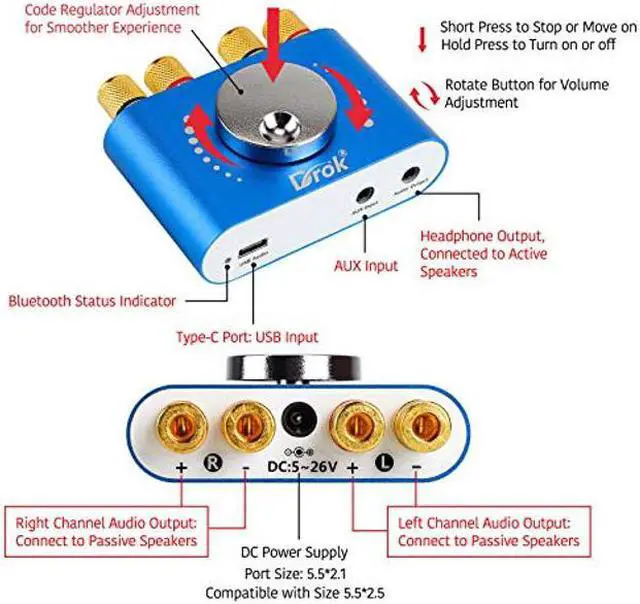

- Blue~tooth/AUX/USB Input --- This stereo amplifier board supports three types of input: 1. Blue~tooth 5.0, as being designed with a PCB antenna, in the condition of no obstruction, the visible distance of the connection can reach 15m, but do note that it must be far away from the router when using it; 2. AUX; 3. Type-C port for USB input. When being powered on, default to enter Blue~tooth mode.
- HD Sound Quality & Volume Control --- With the LC filtered output, the sound played by this power amplifier can be high quality, clean and pure. By effectively reducing electromagnetic interference, it won't get much background noise. And the volume control is easy to operate: rotate to turn up or down; Short press to stop or move on; Long press to tur
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DROK Blue~tooth 5.0
Audio Amplifier BoardParametersPower Supply Voltage: DC 5-27V, the best range is DC 8-24V.
Amplifier Chip: TPA3116D2 (Anti-interference Class D high efficiency power amplifier)
Channel: Left + right channel stereo
Output: LC filter output, high-definition sound quality
Transmission Distance: > 15m in the condition of no obstruction
Protection: Anti-static, power supply anti-reverse connection, short circuit protection, overheating protection, over voltage protection, under voltage protection, DC protection.
Adaptation Speaker: 10W-200W, 4O/8O
Output Power: 10W*2@12V, 8O; 20W*2@12V, 4O; 20W*2@18V, 8O; 40W*2@18V, 4O; 30W*2@22V, 8O; 50W*2@21V, 4O Instruction on Blue~tooth Connection When the Blue~tooth board is powered on, the blue LED flashes quickly and enters the Blue~tooth connection mode. Then search for XinYi on the phone, tap "XinYi" to complete the connection with an alert tone being played, and the blue LED turns strongly bright. At this time, open the phone music player to play music, the Blue~tooth LED will flash slowly which means being playing. For other precautions, please carefully read the User Manual.
Package Includes: DROK Blue~tooth Amplifier*1
Audio Amplifier BoardParametersPower Supply Voltage: DC 5-27V, the best range is DC 8-24V.
Amplifier Chip: TPA3116D2 (Anti-interference Class D high efficiency power amplifier)
Channel: Left + right channel stereo
Output: LC filter output, high-definition sound quality
Transmission Distance: > 15m in the condition of no obstruction
Protection: Anti-static, power supply anti-reverse connection, short circuit protection, overheating protection, over voltage protection, under voltage protection, DC protection.
Adaptation Speaker: 10W-200W, 4O/8O
Output Power: 10W*2@12V, 8O; 20W*2@12V, 4O; 20W*2@18V, 8O; 40W*2@18V, 4O; 30W*2@22V, 8O; 50W*2@21V, 4O Instruction on Blue~tooth Connection When the Blue~tooth board is powered on, the blue LED flashes quickly and enters the Blue~tooth connection mode. Then search for XinYi on the phone, tap "XinYi" to complete the connection with an alert tone being played, and the blue LED turns strongly bright. At this time, open the phone music player to play music, the Blue~tooth LED will flash slowly which means being playing. For other precautions, please carefully read the User Manual.
Package Includes: DROK Blue~tooth Amplifier*1
