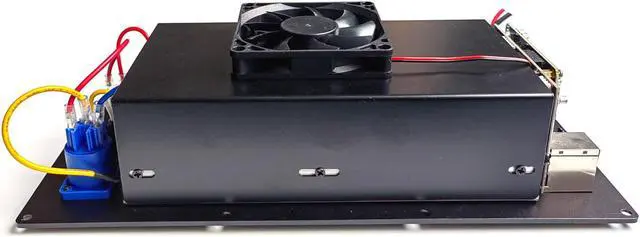

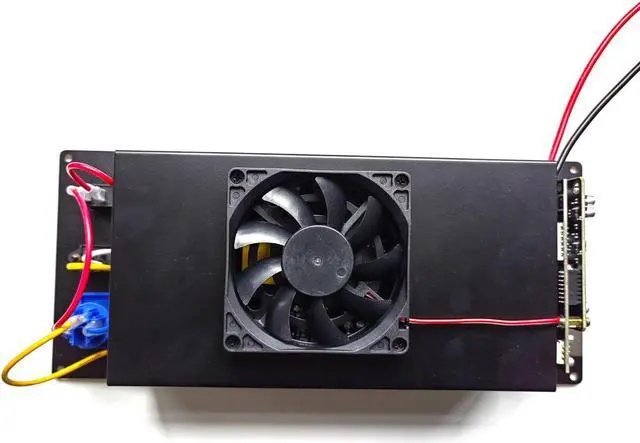

PSG Audio PDA801+CQ260 1200 Watt Subwoofer Amplifier Module with DSP
- 1200 Watt
- Digital Signal Processing
- Subwoofer Amplifier Module
- Highly Configurable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Thermal protection.
Power limiting, Short-circuit and overload output protection.
Permanent signal limiter.
Auxiliary output voltage: +/-15Vregulated. 1000mAmax; +5V1000m.
A max Bypass line outputs torexternalactive/passive filters.
Mute command.
Temperature controlled internal fan and output.
DSP or Analog processing plugin optional boards.
SPECS
AUDIO
Power/8 EIA 1 kHz 1% THD 800
Power/4 EIA 1 kHz 1% THD 1200
Typical Distortion 0.05 %
Frequency Response (8 ohms) 20 Hz-20 kHz, ± 0.2 dB
Damping Factor (8 ohms) >600
Noise (20 Hz20 kHz, 32 dB Gain) <1mv
Maximum Gain ( 1.2V setting) 32dB

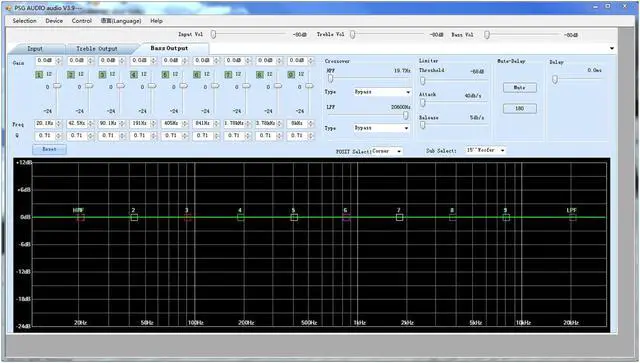

DSP
Analog Inputs and output (single ended) 1 in 2 out
Input-to-output latency 420µs
Gain 36dB
Dynamic Range (unity gain) typ. 95dB (A)
THD (@ 0dBu, 1kHz, unity gain) <0.01%
Frequency Response 20 Hz-20 kHz, ± 0.5 dB
Sample rate 48kHz
Delay 10ms
PEQ (each input and output) 7
Grouping EQ (each input) 7
Crossover (each input, LPF and HPF) 24dB/Oct
Crossover (each output, LPF and HPF) 24dB/Oct Crossover (each output, LPF and HPF) -Butterworth, Linkwitz, Bessel 6dB/oct~24dB/oct
Limiter attack 10240db/s
Limiter release 8040 db
S/N 80dB Limiter release 23db S/N 101dB
Power limiting, Short-circuit and overload output protection.
Permanent signal limiter.
Auxiliary output voltage: +/-15Vregulated. 1000mAmax; +5V1000m.
A max Bypass line outputs torexternalactive/passive filters.
Mute command.
Temperature controlled internal fan and output.
DSP or Analog processing plugin optional boards.
SPECS
AUDIO
Power/8 EIA 1 kHz 1% THD 800
Power/4 EIA 1 kHz 1% THD 1200
Typical Distortion 0.05 %
Frequency Response (8 ohms) 20 Hz-20 kHz, ± 0.2 dB
Damping Factor (8 ohms) >600
Noise (20 Hz20 kHz, 32 dB Gain) <1mv
Maximum Gain ( 1.2V setting) 32dB
DSP
Analog Inputs and output (single ended) 1 in 2 out
Input-to-output latency 420µs
Gain 36dB
Dynamic Range (unity gain) typ. 95dB (A)
THD (@ 0dBu, 1kHz, unity gain) <0.01%
Frequency Response 20 Hz-20 kHz, ± 0.5 dB
Sample rate 48kHz
Delay 10ms
PEQ (each input and output) 7
Grouping EQ (each input) 7
Crossover (each input, LPF and HPF) 24dB/Oct
Crossover (each output, LPF and HPF) 24dB/Oct Crossover (each output, LPF and HPF) -Butterworth, Linkwitz, Bessel 6dB/oct~24dB/oct
Limiter attack 10240db/s
Limiter release 8040 db
S/N 80dB Limiter release 23db S/N 101dB
