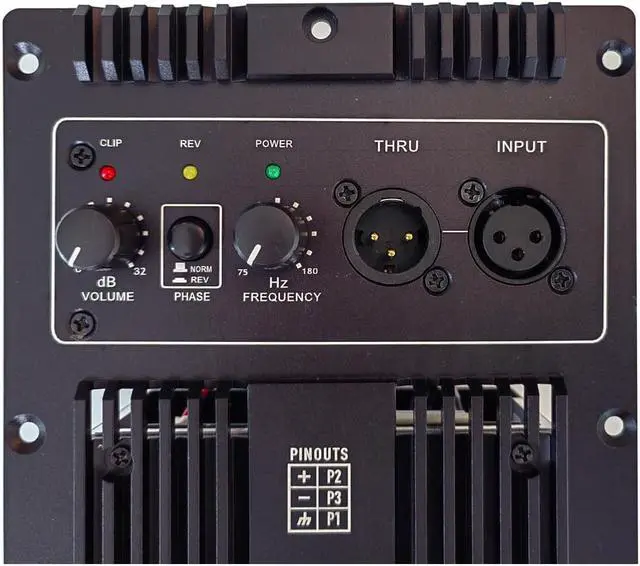

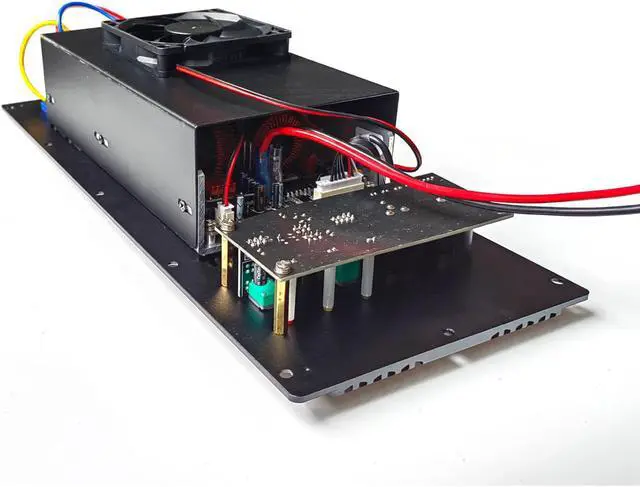

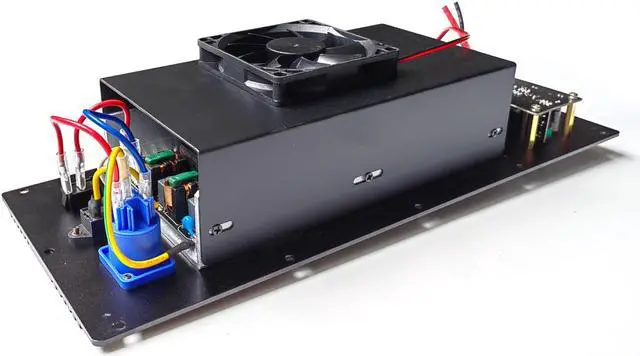

PSG Audio PDA601+PRE 900 Watt Subwoofer Amplifier Module with Frequency Selector
- 900 Watt
- Frequency Selector
- Subwoofer Amplifier Module
- Highly Configurable
+
+
Overview
Specs
Reviews
Thermal protection.
Power limiting, Short-circuit and overload output protection.
Permanent signal limiter.
Auxiliary output voltage: +/-15Vregulated. 1000mAmax; +5V1000m.
A max Bypass line outputs torexternalactive/passive filters.
Mute command.

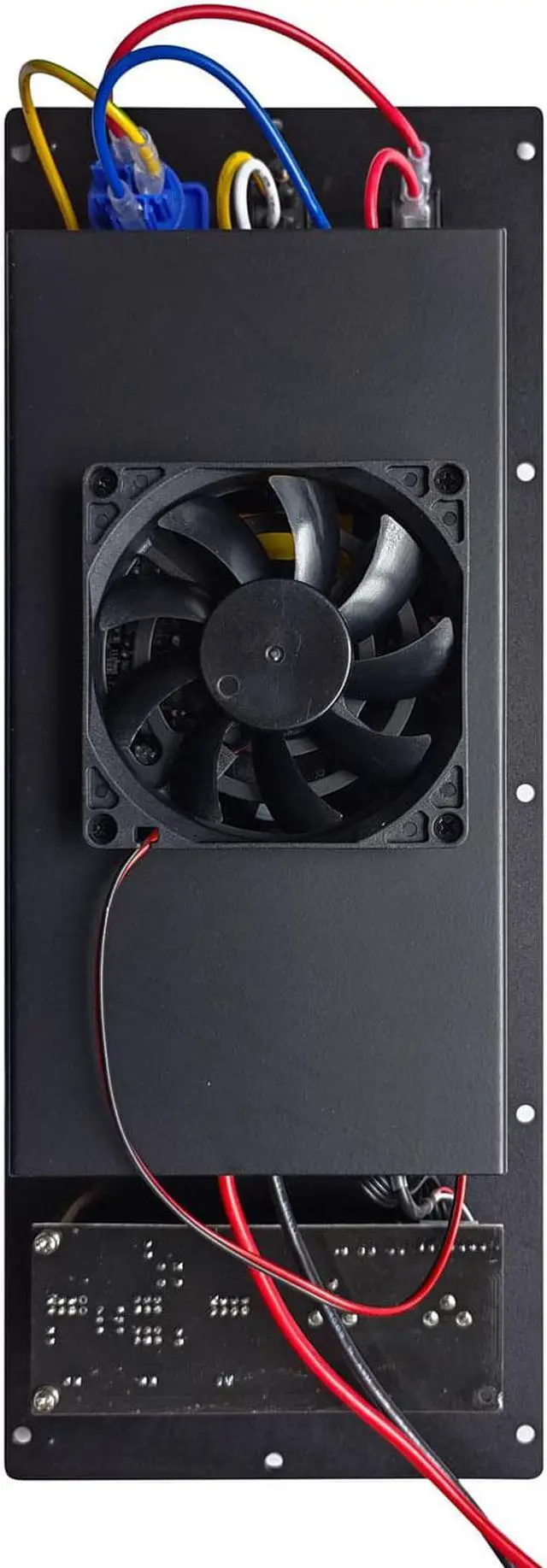

Temperature controlled internal fan and output.
DSP or Analog processing plugin optional boards.
SPECS
Power/8 EIA 1 kHz 1% THD 600W x 1
Power/4 EIA 1 kHz 1% THD 900W x 1
Typical Distortion 0.05 %
Frequency Response (8 ohms) 20 Hz-20 kHz ± 0.2 dB
Damping Factor (8 ohms) >600
Noise (20 Hz20 kHz, 32 dB Gain) <1mv
Maximum Gain ( 1.2V setting) 32dB
Power limiting, Short-circuit and overload output protection.
Permanent signal limiter.
Auxiliary output voltage: +/-15Vregulated. 1000mAmax; +5V1000m.
A max Bypass line outputs torexternalactive/passive filters.
Mute command.
Temperature controlled internal fan and output.
DSP or Analog processing plugin optional boards.
SPECS
Power/8 EIA 1 kHz 1% THD 600W x 1
Power/4 EIA 1 kHz 1% THD 900W x 1
Typical Distortion 0.05 %
Frequency Response (8 ohms) 20 Hz-20 kHz ± 0.2 dB
Damping Factor (8 ohms) >600
Noise (20 Hz20 kHz, 32 dB Gain) <1mv
Maximum Gain ( 1.2V setting) 32dB
