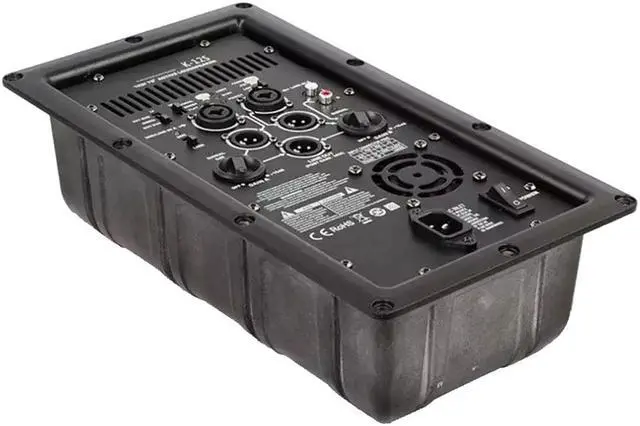

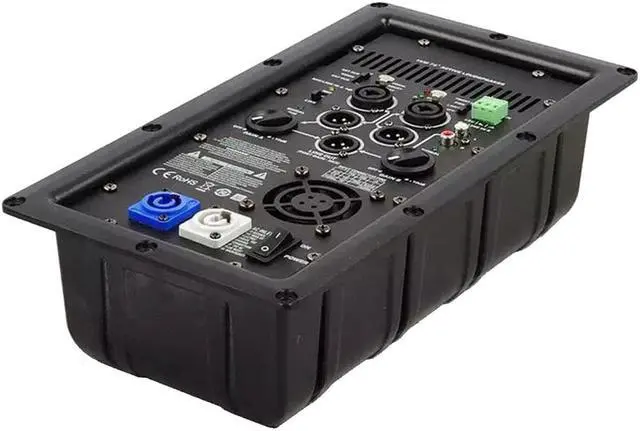

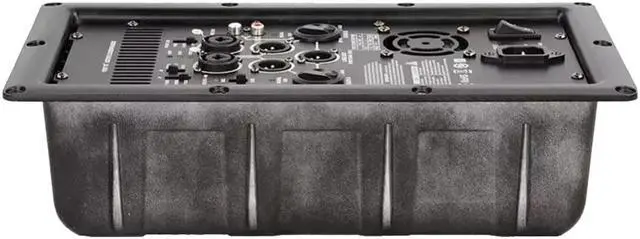

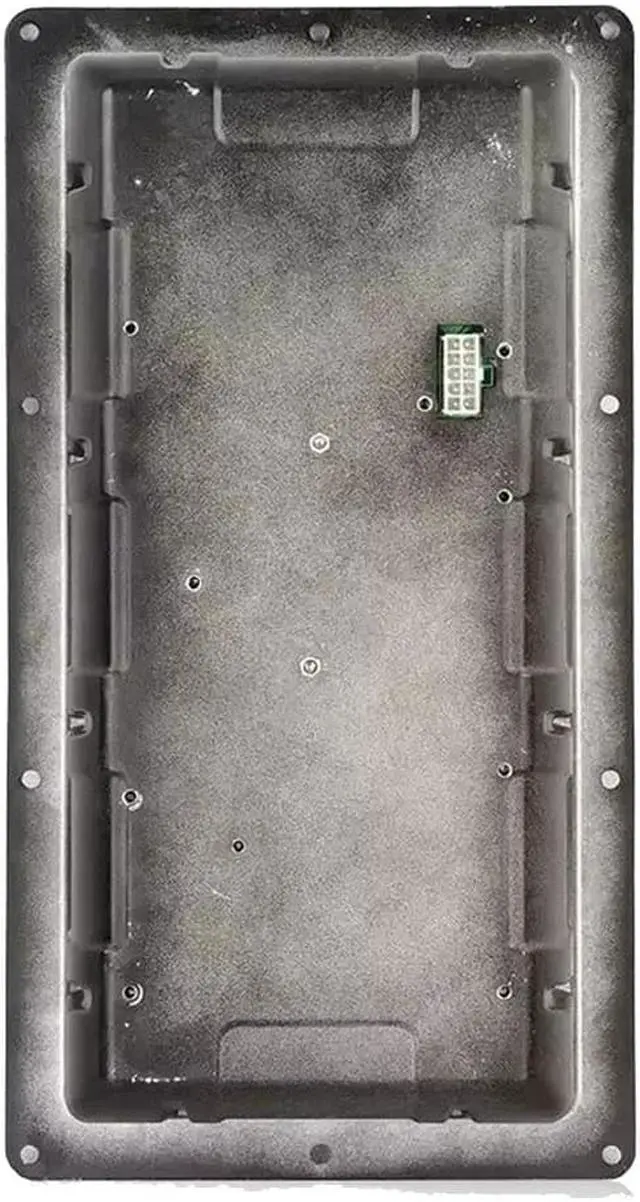

PSG Audio K12A 1000 Watt Replacement Amplifier Module for the QSC K12

Onboard mixer with two combo XLR and ¼ inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
Extensive DSP enhances system performance
DMT (Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural dead or hot frequency zones.
Intrinsic Correction, first featured in our high-end line-array products maps 6575 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat band pass target. The result is a speaker that behaves equally well across the entire sound field.
DEEP and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
GuardRail protection protects both the amplifier module and your performance from unnatural and destructive clipping.

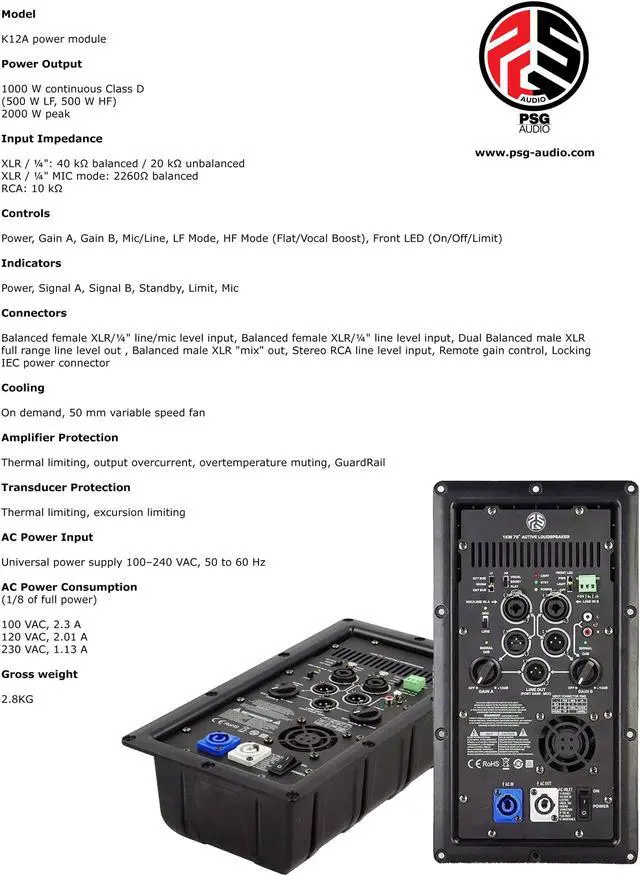

SPECS
Power Output

1000 W continuous Class D
(500 W LF, 500 W HF)
2000 W peak

Input Impedance

XLR / ¼": 40 k balanced / 20 k unbalanced
XLR / ¼" MIC mode: 2260 balanced
RCA: 10 k

Controls

Power, Gain A, Gain B, Mic/Line, LF Mode, HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)

Indicators

Power, Signal A, Signal B, Standby, Limit, Mic

Connectors

Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out, Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector

Cooling

On demand, 50 mm variable speed fan

Amplifier Protection

Thermal limiting, output overcurrent, overtemperature muting, GuardRail

Transducer Protection

Thermal limiting, excursion limiting

AC Power Input

Universal power supply 100240 VAC, 50 to 60 Hz

AC Power Consumption
(1/8 of full power)

100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A

Weight

2.8KG

Dimensions (W*H*D) mm

355*190*110

Output Circuitry

Class D
