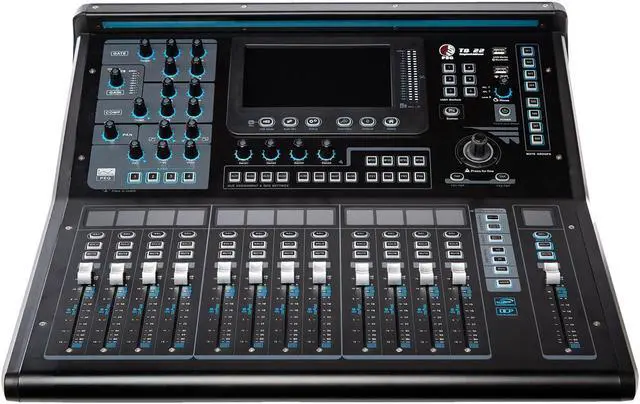

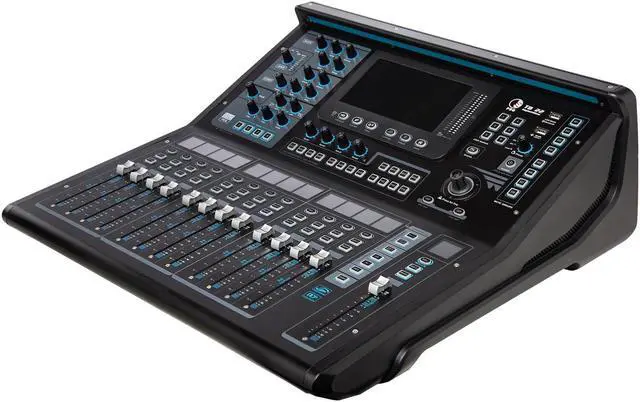

PSG Audio TQ-22 22 Inputs Digital Mixing Console with Touchscreen and Wifi

The PSG AUDIO TQ-22 with its innovative design and powerful DSP capabilities, the Digital Mixer effectively integrates digital mixing systems, using a new concept that blends modern digital and traditional operations to give users a very professional functional experience. Its compact size, easy-to-use interface and professional mixing effects can perform excellently at a professional gig, but also fully satisfying for less experienced individual users to provide powerful effects.

TQ-22 has powerful processing power and advanced features for the convenience and speed of the software operating process designed to bring up the mixing interface quickly. A convenient and fast operating experience that allows everyone to enjoy the convenience and power of a digital mixer.

SPECS
Display screen 6.1" x 3.5" ( 156mm x 90mm ), 7" high-definition color TFT LCD screen and capacitive touch screen.
Channel guide screen 1.44 "color TFT LCD display, 13Pcs.

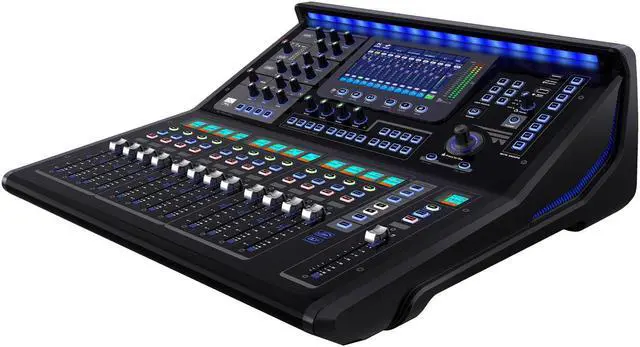

Lighting One-piece built-in, LED true color, 9 colors available, brightness adjustable.
Faders 100mm electric intelligent control, accuracy = 1024 position, + 10dB to 60dB /, full electric Fader

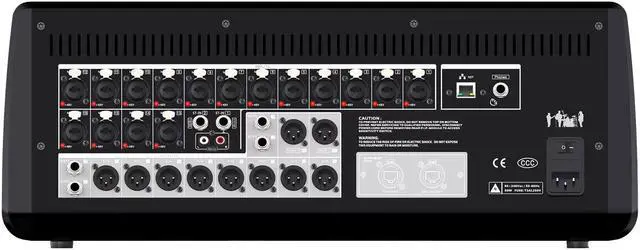

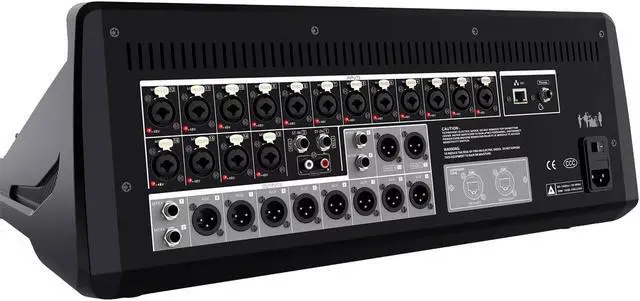

Audio Input
22 channels input:
16 channels Mic/Line( XLR/TRS composite balanced interface ), 2 stereo line input ( 1/4" TRS balanced
port )1 stereo USB disk player or bluetooth player.
Audio output
18 channels output:
8 way auxiliary output AUX1~ AUX8 ( XLR balanced port )
4 way MTRX output MTRX1~ MTRX4 ( 1/4" TRS balanced port )
2 way main output ( XLR balanced port ) 1 stereo USB disk recording
1 stereo monitor ( 1/4" TRS stereo port and 16 minimum impedance headphone )
Input channel
processing
Digital control analog gain adjustment ( Gain ), phase adjustment, 4 position source sound section before/after
faders, 4-bands parametric equalization ( PEQ ), high-pass filter, low-pass filter, noise gate and compressor.
Output channel
processing
15-bands graphic equalizer ( GEQ ), high-pass and low-pass filters, 4-bands parametric equalization
( PEQ ), compressor and delay ( max 500ms ).
Recording function
A stereo dual channel recorder selects a set of 5 stereo bus outputs for Main-L / R and AUX1/AUX2AUX3/AUX4
AUX5/AUX6AUX7/AUX8 as recording sound source.
Grouping 12 DCA groups ( with mute ) and 8 mute groups
Effectors 4 professional effectors: Chorus, Echo, Flanger, Pitch-shift, Reverb and Stereo Delay, 6 kinds of effect processing,
60 factory presets ( FX Presets ), simple and easy presets for users.
Presets Presets of mixer: User presets include saving or recalling all mixer parameters from the internal and U disk to mixer.
Channel presets: User channel presets can be saved or recalled from the internal and U disk to mixer.
Scene mode 6 quick scene quick buttons can realize [Save] / [Delete] / [Recall] / [Export] / [Import] of the scene.
External control Android or Apple iPad digital audio interactive management APP software, access and control almost all
parameters of the device through Wi-Fi hotspot, remote control operation is easy and comfortable.
Wi-Fi USB Wi-Fi adapter package is included.
Bluetooth USB Bluetooth adapter package is included.
Sampling frequency /
quantization bits 48kHz / 24bit
Signal delay Less than 3.3 milliseconds, from any input to output
Frequency response +/- 0.1 dB ( 20Hz to 20kHz @+4dBu input, balanced input from MIC/Line to AUX balanced output, Analog gain=0dB and other level gain=0dB )
THD+N
Less than 0.03 % ( 20Hz to 20kHz @+4dBu input, balanced input from MIC/Line to AUX balanced output, Analog gain=0dB and other level gain=0dB )
Less than 0.009 % ( 1kHz @+4dBu input, balanced input from MIC/Line to AUX balanced output, Analog gain=0dB and other level gain=0dB )
Signal to noise ratio >95dB( Input level for maximum undistorted output, balanced input from MIC/Line to AUX balanced output, Analog gain=0dB and other level gain=0dB )
Equivalent input noise -125dBu typ. ( Balanced input from MIC/Line to AUX balanced output, Analog gain =Max and other level gain=0dB )
Redundant output noise -90dBu typ. ( Balanced input from MIC/Line to AUX balanced output, All channels analog gain =Min and other level gain=0dB, with no signal input )
Dynamic range 114dB type, DA converter
>97dB type, (Input level for maximum undistorted output, balanced input from MIC/Line to AUX balanced output, Analog gain=0dB and other level gain=0dB)
Crosstalk @1kHz < -110dB ( Input level for maximum undistorted output, balanced input from adjacent MIC/line to adjacent AUX/SUB balanced output, Analog
gain=0dB, other level gain=0dB )
Profile dimension
and weight
Product (
without packaging ): 550mm ( W ) x 553mm ( D ) x 206mm ( H ) / 11.5 kg
Product (
including packaging ): 630mm ( W ) x 630mm ( D ) x 320mm ( H ) / 15.5 kg
Working voltage 85Vac~ 240Vac, 50~60 Hz, 50WMAX
Temperature range Operating temperature range: 0 to 40, storage
temperature range: 20 to 60
