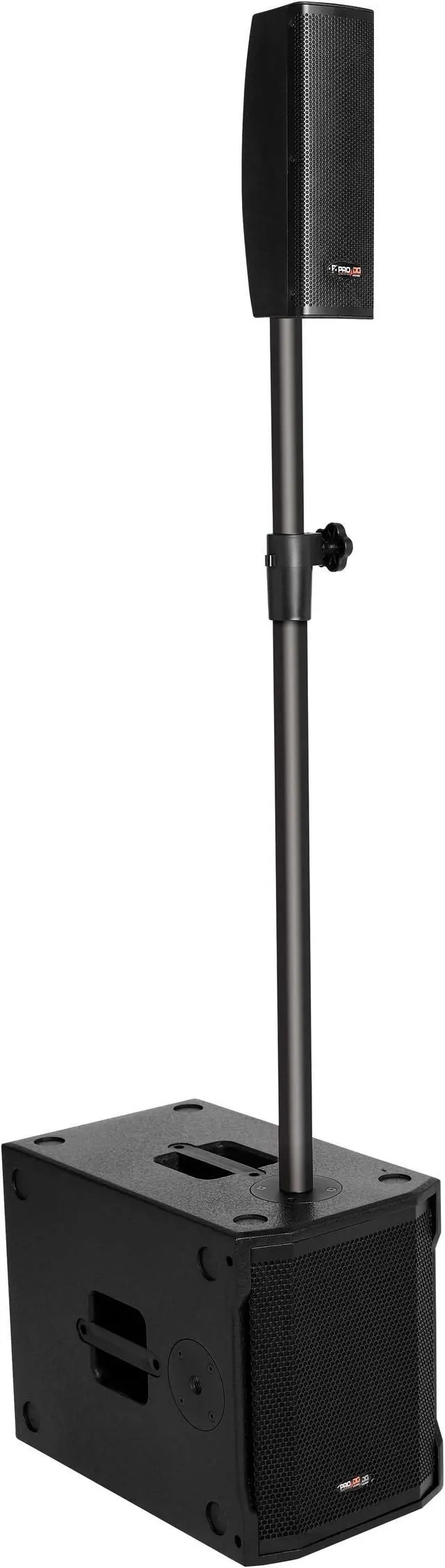

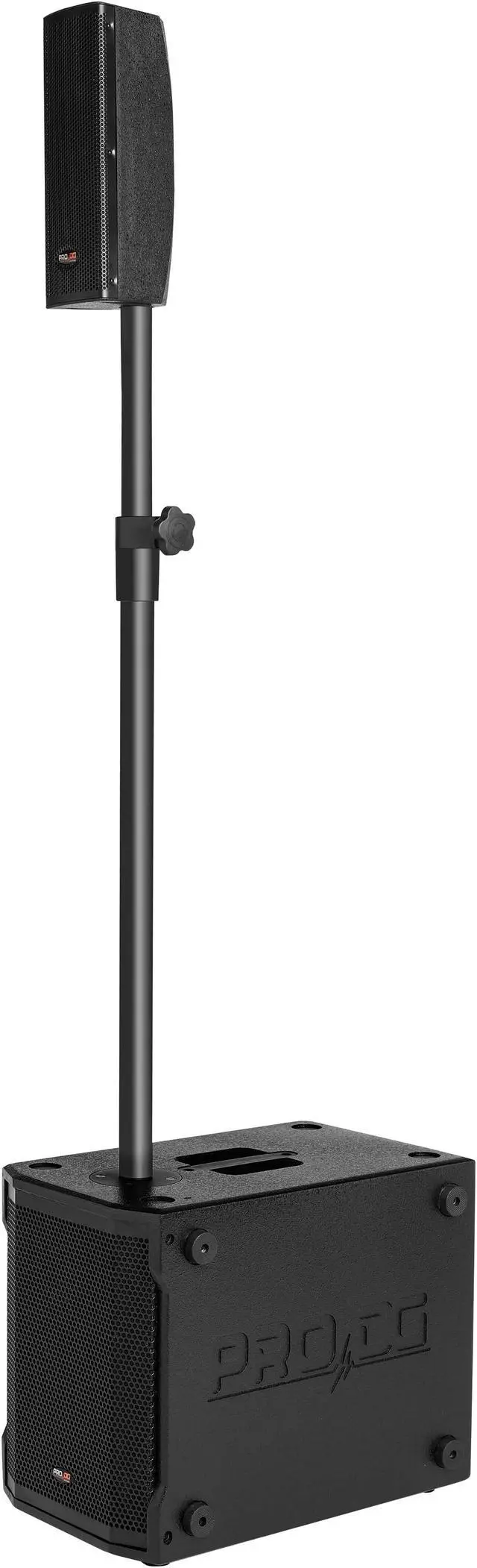

PRO DG NEO-1 1840W 2-way Portable Array system

The new Neo Series from Pro DG Systems is the configuration ideal of column type speaker for a permanent installation, all without losing the functionality of being used as a portable system for all kind of point source applications where minimum visual impact is required. The new Neo Series is made up of the new i 427 A (column) and i 110 BA (subwoofer), both models have Next-generation Class-D amplification and proprietary digital audio processing with a very intuitive interface for easy handling and absolute control, an ideal plug and play solution.

The easy integration of its different elements make the system extremely versatile and modular, allowing it to be easily assembled by a single person and be scaled in systems with greater number of elements or subdivided into smaller systems as being necessary. The ultra-compact design and very low weight facilitate its mobility allowing for great logistical and time savings. The innovative versatility of the Neo Series with its multiple configurations makes it ideal for one-man band or small band, orchestras, corporate events, as well as for holding events in places of worship and leisure.

The system provides the possibility of creating different configurations for unmatched flexibility. The main features and specifications are detailed below, as well as different examples of configurations between the two.


SPECS

i 427 A (Column)
Power Handling: 60 W RMS (EIA 426A Standard) / 120 W program / 240 W peak
Nominal Impedance: 4 Ohm
Average Sensitivity: 96dB / 2.83V / 1m (average of 150- 16.000H z wideband)
Maximum SPL Calculation: / 1m 118 dB continuous / 121 dB program / 124 dB peak
Frequency Range: +/-3 dB between 200 Hz 20 kHz
Nominal Directivity: 120° of horizontal coverage, 30° of vertical coverage
Components: Four (4) 2.75 speakers, 15W with neodymium magnet, 1 voice coil
Amplifier: Last generation Class-D amplifier
Rigging Points: 1 x M8
Connectors: 4 core Speakon (2 Core 24V / 2 Core Signal +/-)
Acoustic: Enclosure Reinforced polypropylene plastic
Finish: Special paint finish in black
Grille: 1mm thickness metal grille with 0.5 mm acoustic foam
Cabinet Dimensions: (HxWxD); 320x110x113mm ( 12.60 x 4.33 x 4.45 )
Weight: 1.5 Kg ( 3.31 lbs) net / 2 Kg ( 4.41 lbs) with packaging

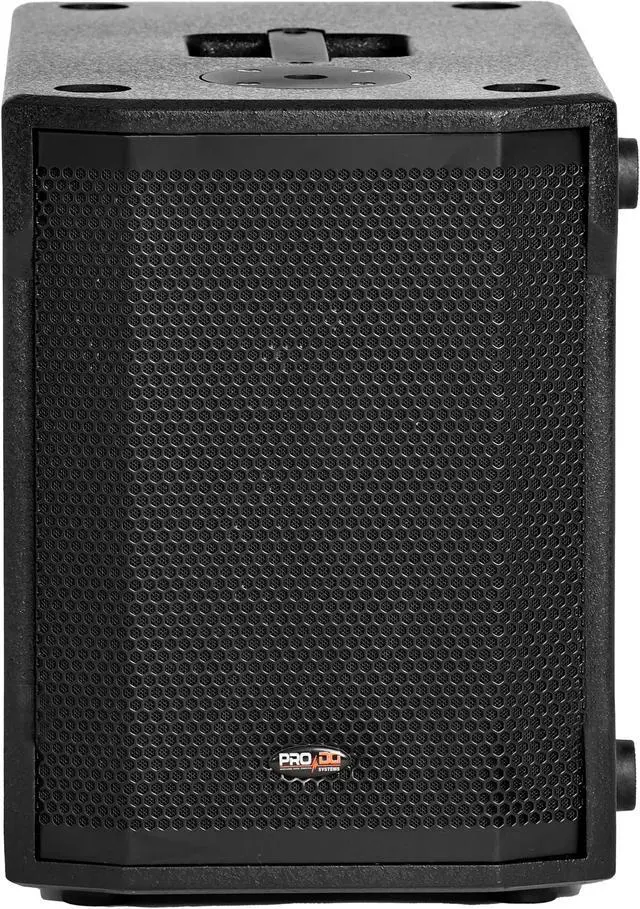

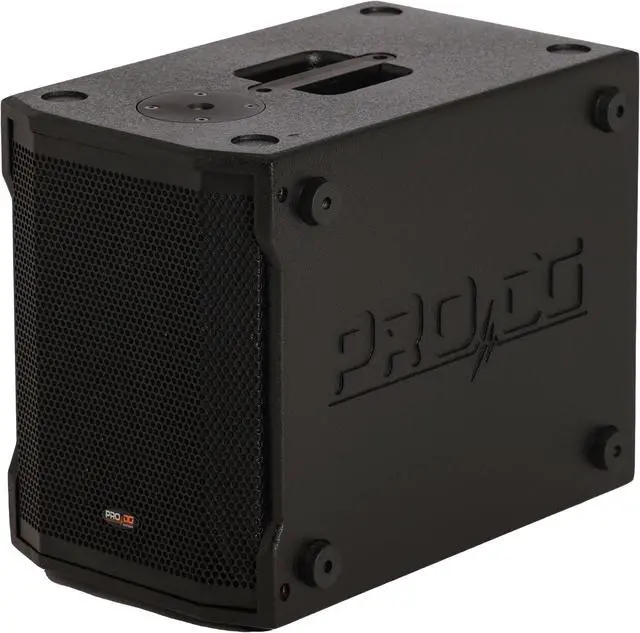

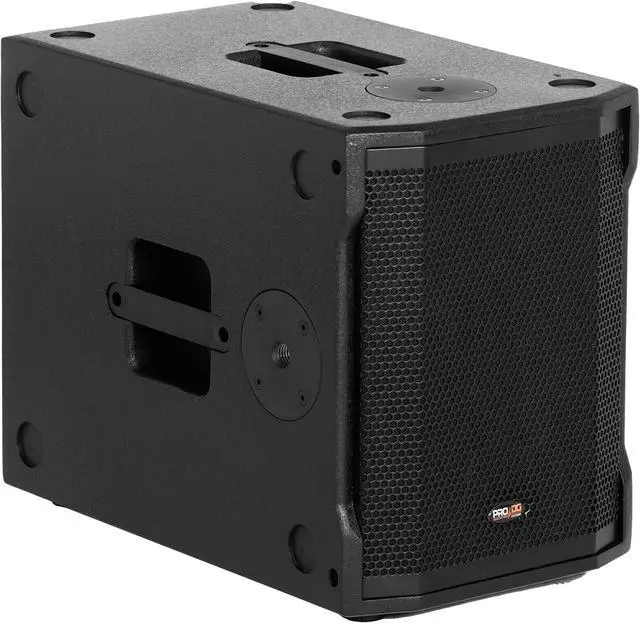

i 110 BA (Subwoofer)
Power Handling: 400 W RMS (EIA 426A Standard) / 800 W program / 1600 W peak
Nominal Impedance: 4 Ohm
Average Sensitivity: 98dB / 2.83V / 1m (average of 150 1000Hz wideband)
Maximum SPL Calculation: / 1m 119 dB continuous / 122 dB program / 125 dB peak
Frequency Range: +/-3 dB between 47 200 kHz
Nominal Directivity: Omnidirectional
Component: One (1) speaker of 10 400W, 2.5 voice coil
Amplifier: Last generation Class-D amplifier with 96kHz, 24 bit
DSP with three preset modes: Monitor, DJ, Live

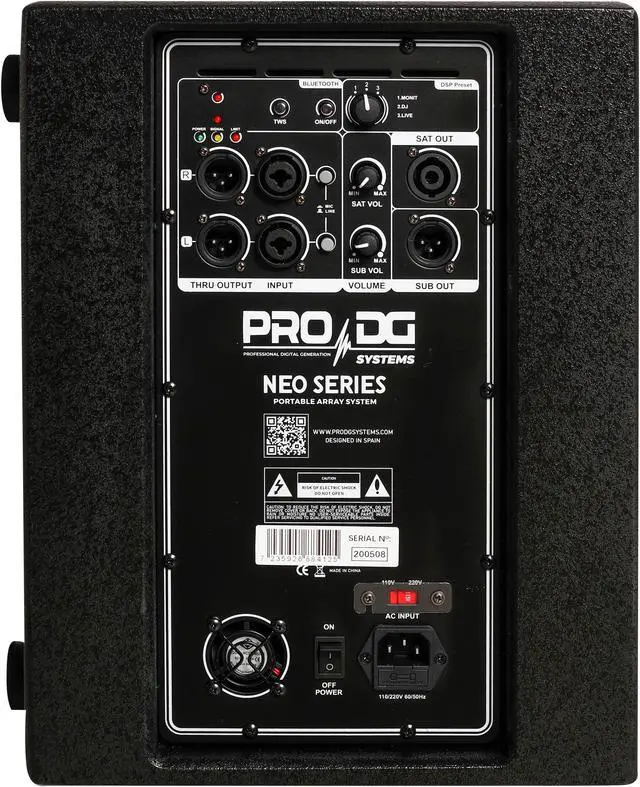

Connectors: 2 XLR / Jack input channels with mic and line switch + XLR Link
Controls: Power On / Off switch, satellite level, subwoofer level, Line / Mic switch,
Bluetooth: On / Off switch, TWS switch, DSP modes switch
Power Supply: 110~220V 50/60HZ with voltage selector
Acoustic: Enclosure 15mm MDF
Finish: Special paint finish in black
Grille: 1.5 mm thickness metal grille with 0.5 mm acoustic foam
Cabinet Dimensions: (HxWxD); 390x300x495mm ( 15.35 x 11.81 x 19.49 )
Weight: 16.9 Kg ( 37.26 lbs) net / 17.5 Kg ( 38.58 lbs) with packaging
