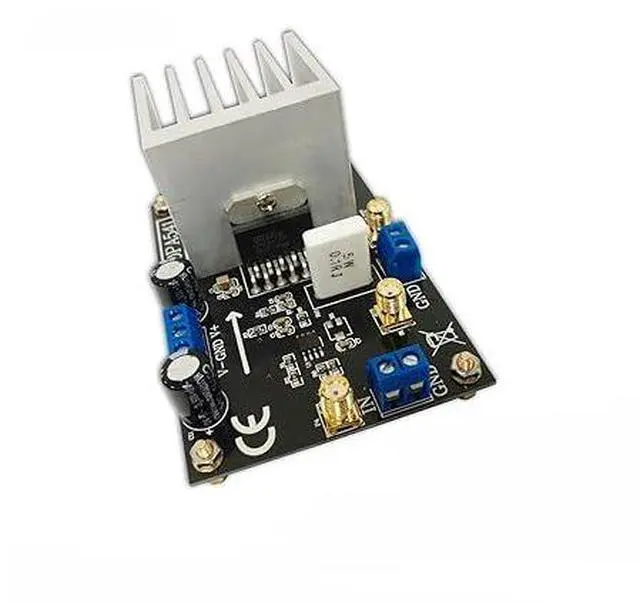

OPA541 OP AMP High Power Monolithic Operational Amplifier 5A Current High Voltage Audio Amplifier Board
- Maximum Supply Voltage 40 Volts (DC)
- Minimum Supply Voltage 40 Volts
- Mounting Type Surface Mount
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

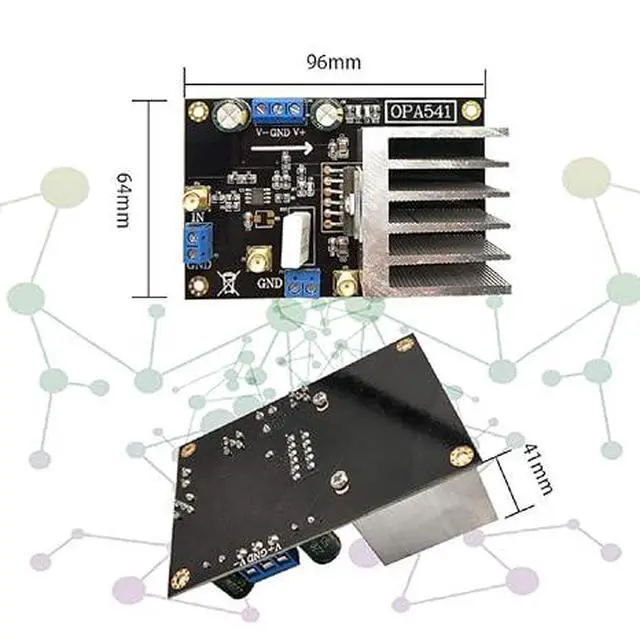

- Name: OPA541 High Voltage High Current Power Amplifier; Size: 96mm*64mm*41mm (length, width, height); Supply voltage range: ±10V~±40V
- The OPA541 module is a power operational amplifier capable of operating with a power supply up to 40V and providing continuous output current up to 5A. The internal current limiting circuit can be controlled by the user using a single external resistor to protect the amplifier and load from fault conditions.

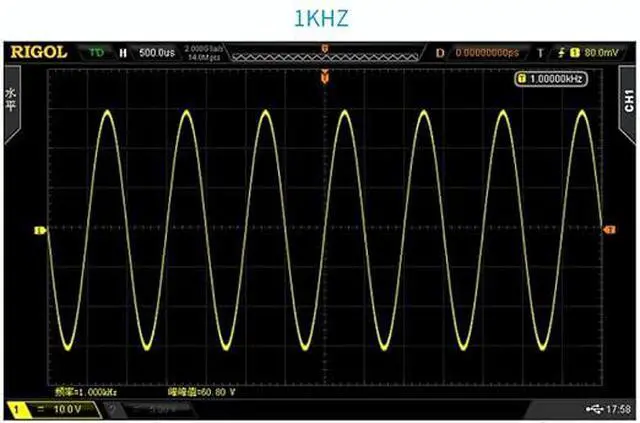

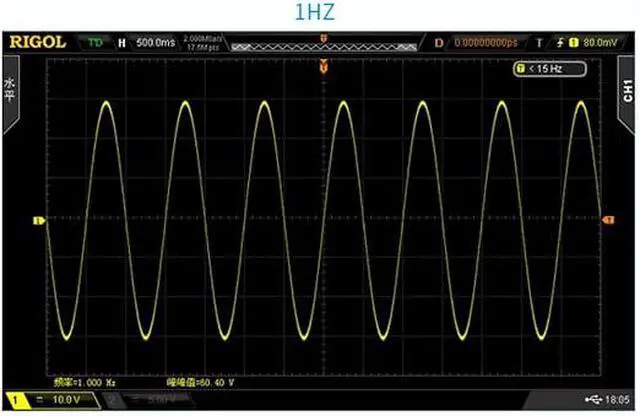

- Suitable for motor-driven speaker drive, transformer drive and audio amplifier. It can also amplify triangle wave, sine wave and square wave signals.
- The power consumption of the module is large, and the power supply requires a certain margin. It is recommended to use a power supply with a current driving capacity greater than twice the output current. The module can only be powered by dual power supplies. In order to avoid unnecessary interference, it is recommended to use a linear power supply, the power supply should not exceed plus or minus 40V.
