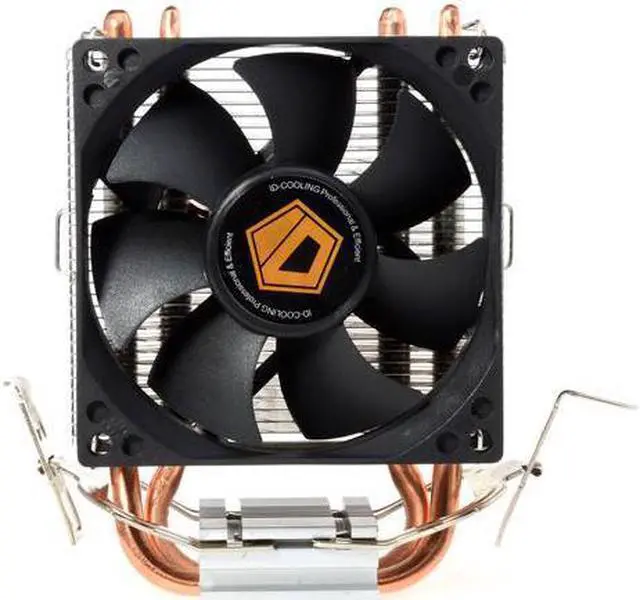

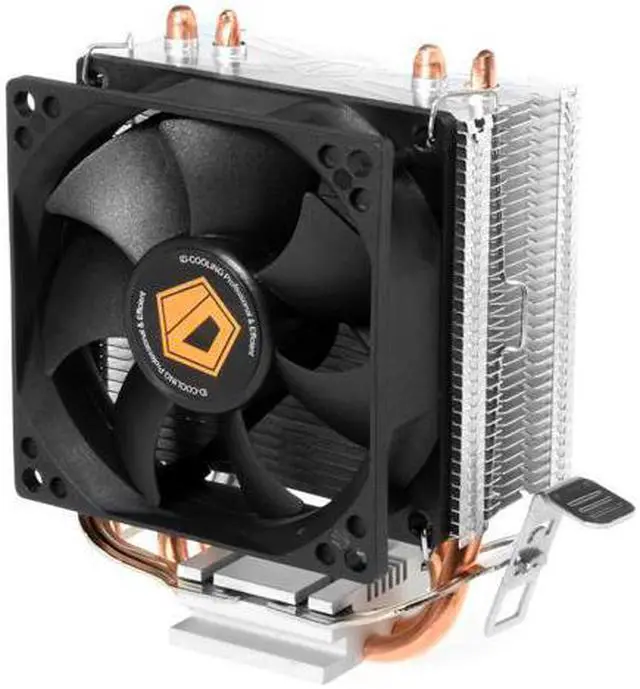

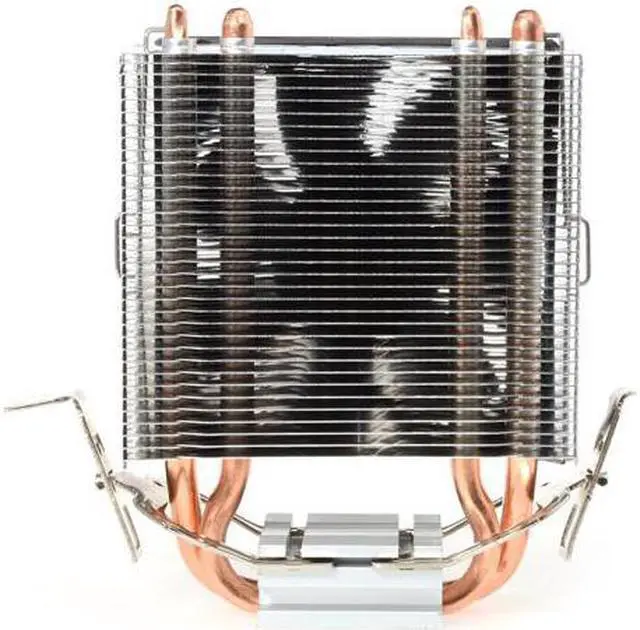

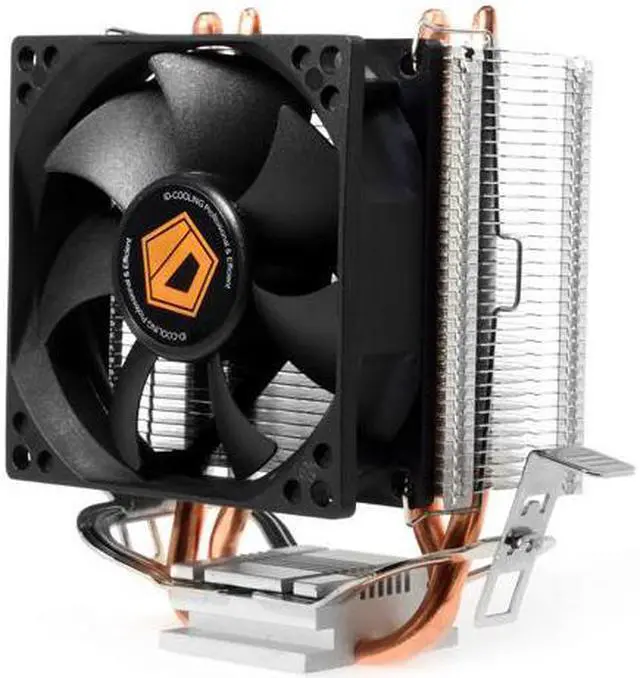

High Cooling Performance with 2 Direct Touch Heatpipe, 80mm Fan, Intel & AMD
Featuring two 6mm diameter heatpipe 80mm fan, SE-802 is designed for budget PC builder. Heatpipe direct tough design ensures the heatpipe conduct heat from CPU to fins quickly. Fan speed is set at 2200RPM to help blow the heat away. Both Intel and AMD CPUs are supported due to the universal mounting kit design.
Features:
* 2×6mm Heatpipes for fast heat transfer
* Heatpipe direct touch CPU for best thermal conductivity
* 80mm fan with optimal airflow
* Universal mounting kit for both Intel and AMD
Specifications:
Compatibility: Intel LGA1150/1155/1156/775 AMD FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
TDP: 95W
Overall Dimension: 117×64×116mm (L×W×H)
Material: 2 Copper Heatpipe + Aluminum Fin
Weight: 262g
Fan Dimension: 80×80×25mm
Fan Speed: 2200RPM (PWM)
Max. Air Flow: 28.7CFM
Noise: 23.3dB(A)
Rated Voltage: 12VDC
Operating Voltage: 10.8~13.2VDC
Started Voltage: 7VDC
Rated Current: 0.20A
Power Input: 2.4W
Bearing Type: Hydraulic Bearing
Package Contents:
1 x CPU Cooler
1 x Mounting Kit
1 x User Manual
FAQ:
1.What is the CPU compatibility for a specific CPU cooler model?
You may take a look at your CPU box to get to know the socket type, then to check the socket type listed on this page with your CPU.
2.How to apply the thermal grease/paste?
Simply squeeze appropriate amount of thermal grease onto the CPU surface, and use a hard card to apply them evenly over the surface, and then mount the CPU cooler.
ABOUT ID-COOLING
ID-COOLING is specialized in cooling products for desktop PCs and thermal solutions for industrial applications, covering CPU Cooler, VGA Cooler, Case Fan, Server Cooler, Mini Computer Cases, etc. With over 10 years experience in this industry, ID-COOLING enjoys a good reputation in innovation and superior quality and service.
