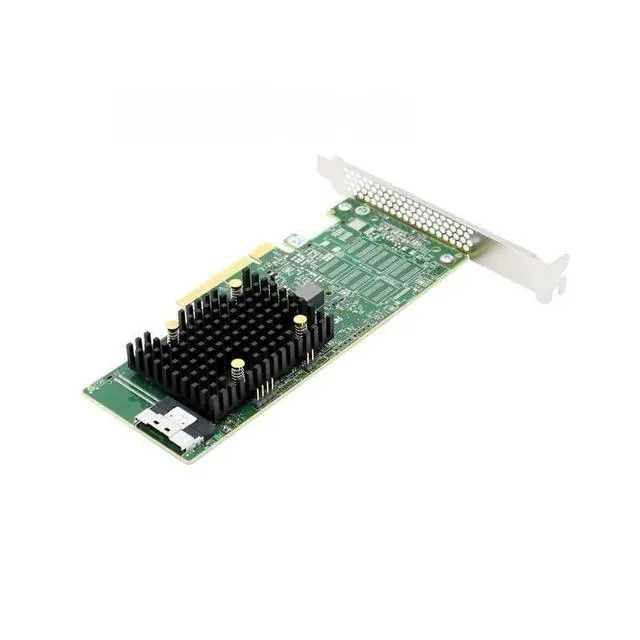

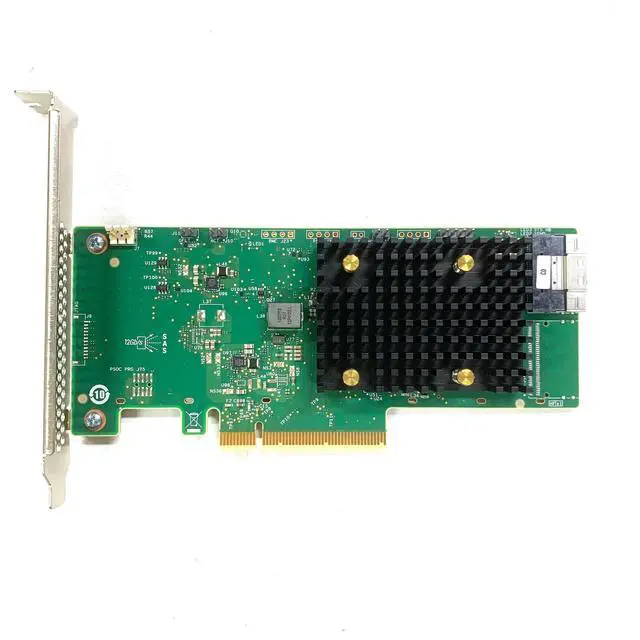

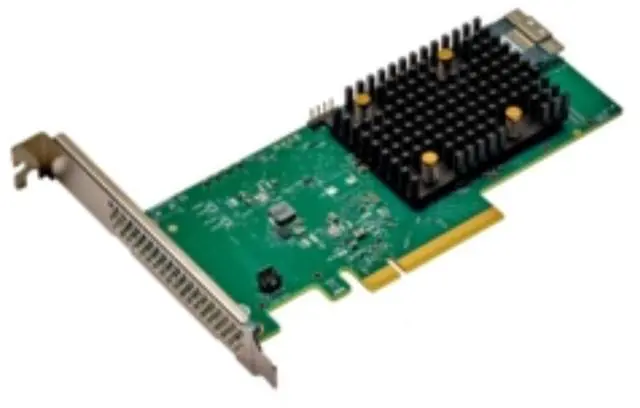

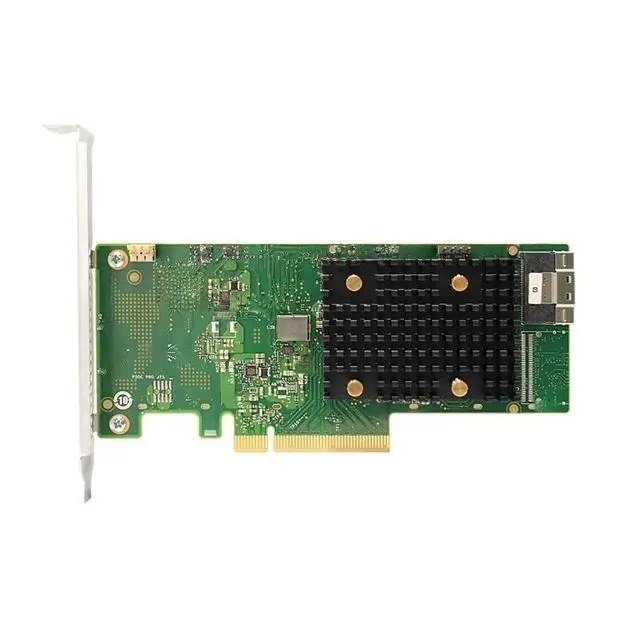

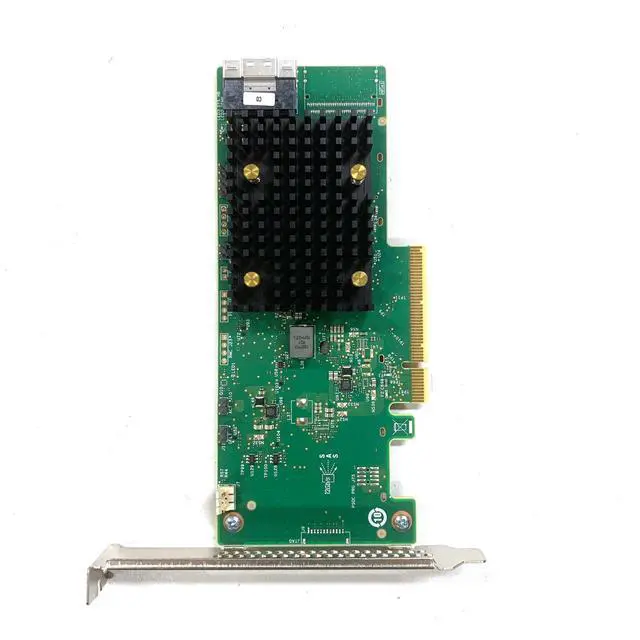

Broadcom MegaRAID 9540-8i - Storage Controller (RAID) - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8 05-50134-03
- Device Type: Storage controller (RAID) - plug-in card - low profile
- Bus Type: PCIe 4.0 x8
- Interface: SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe)
- Supported Devices: Disk array (RAID)
- Channel Qty: 8
- Max Storage Devices Qty: 240
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
| Data Transfer Rates 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant |
Devices Supported SAS/SATA: 32, NVMe: 4
Generation 12 Gb/s
Host Bus Type x8 lane PCI Express 4.0
I/O Processor / SAS Controller SAS3808
Internal Connectors 1 x8 SFF-8654 (SlimSAS)
Internal Ports 8
Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF >3, 000, 000 hours at 40° C
Operating Temperature°C 0°C to 55°C
OS Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions Low profile 6.127 x 2.712
RAID Levels 0, 00, 1, 10
Regulatory Certifications Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power 6.0W
Warranty 3 years, free technical support, advanced replacement option at broadcom. com/support/warranty/internal-raid-hba
