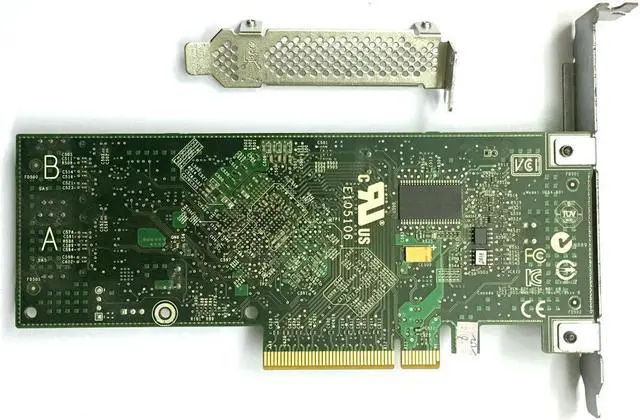

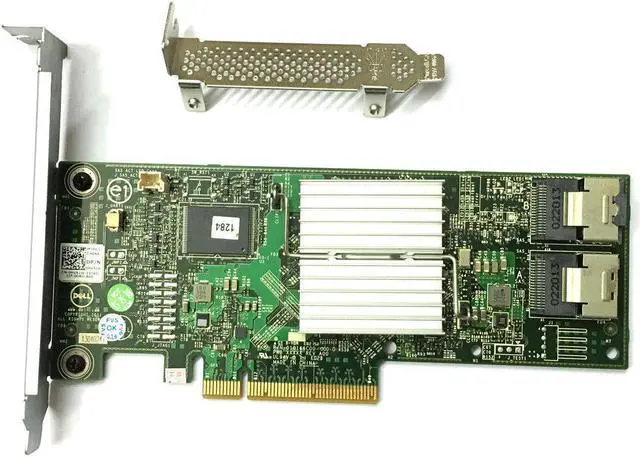

Dell PERC H310 8-Port 6Gb/s SAS Adapter RAID Controller
- - 6Gb/s data transfer rate
- - Eight internal 6GB/s SATA+SAS ports
- - Two x4 Mini-SAS Internal connectors (SFF8087)
- - LSISAS2008 controller
- - PowerPC 440 @ 533MHz
- - RAID 0, 1, 5, 10, 50 and JBOD mode
- - Hardware RAID solution
- - x8 PCI Express 2.0 host interface
- - Low-profile form factor
- - Supports up to 64 physical devices
- - Up to 16 physical devices in a RAID configuration
- - Patrol read
- - Consistency Check
- - S.M.A.R.T error detection
- - Power management support
- - MegaRAID Storage Manager
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Brand: DELL
Model: H310
Technical Information:
Solution Provided: Low-cost, green SATA+SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drives
Physical Dimensions: 6.6" X 2.536" (Low-Profile)
Connectors: Internal Two X4 Mini-SAS SFF8087 (vertical orientation)
Max Number of Physical Devices: Non-Raid: 64, RAID 0: 16 per volume,RAID 1: 2 per volume plus hotspare, RAID 5: 16 per volume, RAID 10: 16 per volume, RAID 50: 16 per volume
Host Bus Type: 8-lane, 5 GT/s PCI Express 2.0 Compliant
Data Transfer Rates: Up to 6Gb/s per port
SAS Controller: LSISAS2008
Key RAID Data Protection Features:
- RAID levels 0, 1, 5, 10, 50 and JBOD mode
- Selectable logical drive as boot drive
- Consistency Check
- Fast initialization for quick array setup
- Native Command Queuing
- Staggered spin up for SATA drives
- Hot plug support
- Global hot spare support
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- Single controller Multipathing (failover)
- Load balancing
-SafeStore Encryption Services
- Instant Secure Erase
- SSD support with SSD Guard
- Automatic rebuild of hot spare drives
- Auto resume during array rebuild
- Fault LED support through SGPIO
- >2TB logical drive support
- Soft bad block management
- Error recovery support
- DDF compliant Configuration on Disk
- S.M.A.R.T. support
- Patrol read for media scanning and repairing
- Enclosure management
- SES (inband)
- SGPIO (sideband)
- RAID Managment MegaRAID Management Suite:
- MegaRAID Storage Manager
- MegaCLI (command-line interface)
- WebBIOS
Environments Operating: 0°C to 70°C, 5 to 90% Non-condesing Storage, -45°C to 105°C, 5 to 90% Non-condesing
PCI Card Type: 3.3V Add-in Card
PCI Voltage: +12V±10%
PCI Power: 13.5W
PCI Modes: Bus Master DMA
LED Indicators: Internal Activity/Fault per x4 port - Hearbeat
MTFB: >2,000,000 Hours
Compliances: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
OS Support: Microsoft Windows, Linux (SuSE, Red Hat), Solaris, Vmware.
Brackets: Full Height and Low-Profile
Model: H310
Technical Information:
Solution Provided: Low-cost, green SATA+SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drives
Physical Dimensions: 6.6" X 2.536" (Low-Profile)
Connectors: Internal Two X4 Mini-SAS SFF8087 (vertical orientation)
Max Number of Physical Devices: Non-Raid: 64, RAID 0: 16 per volume,RAID 1: 2 per volume plus hotspare, RAID 5: 16 per volume, RAID 10: 16 per volume, RAID 50: 16 per volume
Host Bus Type: 8-lane, 5 GT/s PCI Express 2.0 Compliant
Data Transfer Rates: Up to 6Gb/s per port
SAS Controller: LSISAS2008
Key RAID Data Protection Features:
- RAID levels 0, 1, 5, 10, 50 and JBOD mode
- Selectable logical drive as boot drive
- Consistency Check
- Fast initialization for quick array setup
- Native Command Queuing
- Staggered spin up for SATA drives
- Hot plug support
- Global hot spare support
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- Single controller Multipathing (failover)
- Load balancing
-SafeStore Encryption Services
- Instant Secure Erase
- SSD support with SSD Guard
- Automatic rebuild of hot spare drives
- Auto resume during array rebuild
- Fault LED support through SGPIO
- >2TB logical drive support
- Soft bad block management
- Error recovery support
- DDF compliant Configuration on Disk
- S.M.A.R.T. support
- Patrol read for media scanning and repairing
- Enclosure management
- SES (inband)
- SGPIO (sideband)
- RAID Managment MegaRAID Management Suite:
- MegaRAID Storage Manager
- MegaCLI (command-line interface)
- WebBIOS
Environments Operating: 0°C to 70°C, 5 to 90% Non-condesing Storage, -45°C to 105°C, 5 to 90% Non-condesing
PCI Card Type: 3.3V Add-in Card
PCI Voltage: +12V±10%
PCI Power: 13.5W
PCI Modes: Bus Master DMA
LED Indicators: Internal Activity/Fault per x4 port - Hearbeat
MTFB: >2,000,000 Hours
Compliances: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
OS Support: Microsoft Windows, Linux (SuSE, Red Hat), Solaris, Vmware.
Brackets: Full Height and Low-Profile
