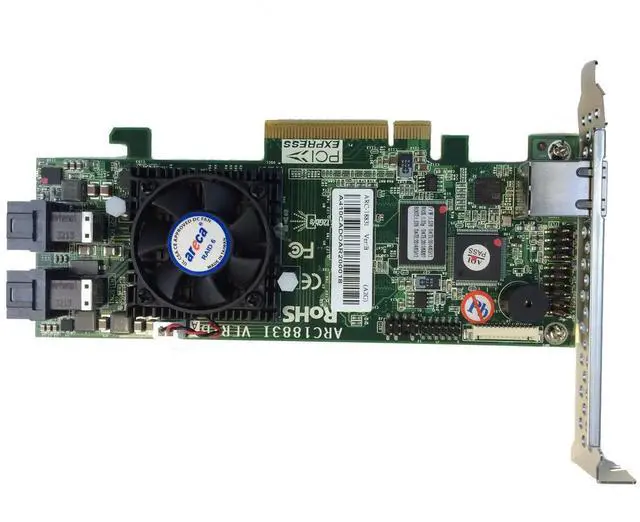

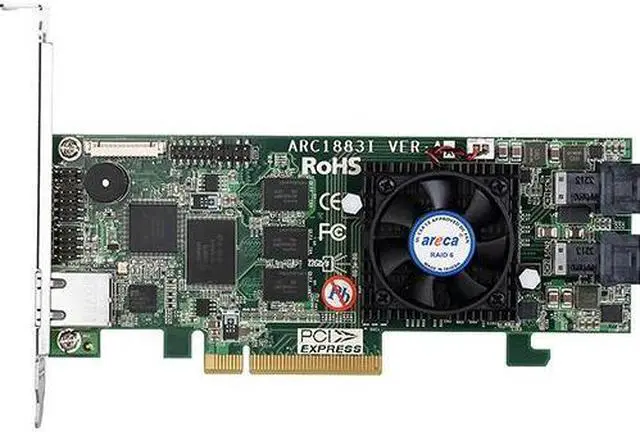

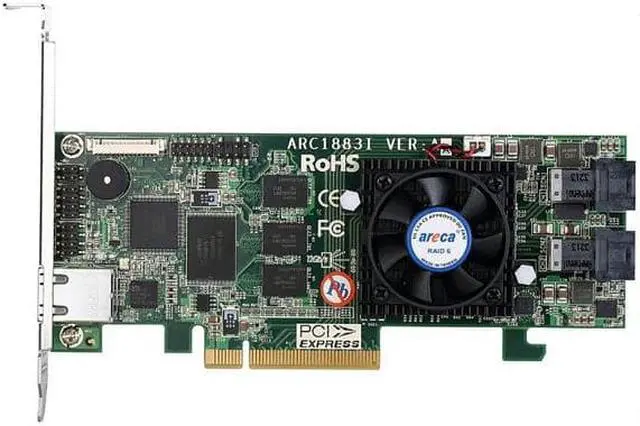

Areca ARC-1883i SAS Controller

The new third generation ARC-1883 family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture and PCIe 3.0 interface for the most performance-hungry database and IT applications. The ARC-1883 family includes 8 ports low profile as well as full height 12/16/24 internal ports with additional 4 external ports with mini SAS HD connectors for 12Gb/s throughput on each port.

Features

* Host Interface: PCI Express 3.0 x8
* Host Interface: PCI Express 3.0 x8
* Product Type: SAS Controller
* Product Type: SAS Controller
* Platform Supported: Linux
* Platform Supported: Mac
* Platform Supported: PC
* Form Factor: Plug-in Card
* RAID Levels: 0
* RAID Levels: 1
* RAID Levels: 10
* RAID Levels: 3
* RAID Levels: 5
* RAID Levels: 6
* RAID Levels: 30
* RAID Levels: 50
* RAID Levels: 60
* RAID Levels: JBOD
* Controller Type: 12Gb/s SAS
* Controller Type: Serial ATA/600
* Form Factor: Plug-in Card
* Product Model: ARC-1883i
* Product Name: ARC-1883i SAS Controller
* RAID Levels: 0
* RAID Levels: 1
* RAID Levels: 10
* RAID Levels: 3
* RAID Levels: 5
* RAID Levels: 6
* RAID Levels: 30
* RAID Levels: 50
* RAID Levels: 60
* RAID Levels: JBOD
* Controller Type: 12Gb/s SAS
* Controller Type: Serial ATA/600
* Brand Name: Areca
* Brand Name: Areca
* Height: 2.5"
* Depth: 6.7"
* RAID Supported: Yes
* Data Backup Type: NV Cache
* Total Number of SAS Ports: 8
* SAS Connector Details: 2 SFF-8643
* Environmentally Friendly: Yes
* Environmental Certification: RoHS
* RAID Supported: Yes
* Data Backup Type: NV Cache
* Total Number of SAS Ports: 8
* SAS Connector Details: 2 SFF-8643
* Cache Memory: 2 GB
