Areca Entry Level PCI-e 4.0, M.2 NVMe Hardware RAID Adapter
- Supports 4 Bays M.2 NVMe
- Hardware secure boot ready
- x8 PCIe Gen 4.0 host interface
- Support individual NVMe PowerDisable feature
- Redundant flash image for adapter availability
- Capacity expansion, RAID level/stripe size migration
- SED support for hardware NVMe encryption capable drives
- Tri-mode interface at each M.2 bays - 12Gb/s SAS/SATA / Gen 4.0 PCIe (NVMe)
- RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD
- Device interface PCIe Gen4 NVMe / 6Gbps SATA per M.2 slot
- Support off module power loss protection for Non PLP NVMe drive using on-board supercapacitor
- Broad operating support including Windows, Linux (open source), FreeBSD (open source), Mac and VMware
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Entry Level M. 2 NVMe Hardware RAID Adapters, PCI-E 4.0 supported

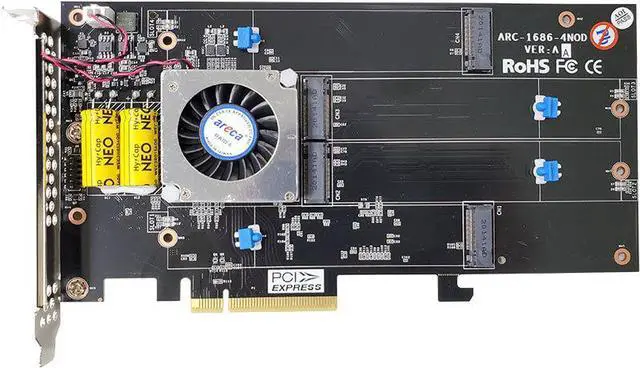

The ARC-1686 series presents the advanced hardware RAID technology in enhanced performance of using 4 Bays M. 2 NVMe. The hardware RAID adapter support off module power loss protection (PLP), on-board hold up supercapacitor, and M. 2 slot Power Disable feature for guaranteed data protection. This is designed in a 1.6 GHz dual-core ROC processor and PCIe Gen 4.0 host/device interface and supports RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD.
Powerful Broadcom Tri-mode ROC Engine
At the heart of ARC-1686-4NOD is the incredibly powerful Broadcom SAS3908/SAS3916 dual-core ARM A15 tri-mode ROC, giving effortless performance as desirable. It delivers storage interface PCIe Gen 4 NVMe, 12Gb/s SAS, 6Gb/s SATA, and the security of data protection. Damage in a software RAID is considered as the consumption of massive computation and memory bandwidth on the host. The ARC-1686-xNOD hardware RAID relieves the parity generation burden from the host and maximizes application processing performance.
The ARC-1686 series presents the advanced hardware RAID technology in enhanced performance of using 4 Bays M. 2 NVMe. The hardware RAID adapter support off module power loss protection (PLP), on-board hold up supercapacitor, and M. 2 slot Power Disable feature for guaranteed data protection. This is designed in a 1.6 GHz dual-core ROC processor and PCIe Gen 4.0 host/device interface and supports RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD.
Powerful Broadcom Tri-mode ROC Engine
At the heart of ARC-1686-4NOD is the incredibly powerful Broadcom SAS3908/SAS3916 dual-core ARM A15 tri-mode ROC, giving effortless performance as desirable. It delivers storage interface PCIe Gen 4 NVMe, 12Gb/s SAS, 6Gb/s SATA, and the security of data protection. Damage in a software RAID is considered as the consumption of massive computation and memory bandwidth on the host. The ARC-1686-xNOD hardware RAID relieves the parity generation burden from the host and maximizes application processing performance.
