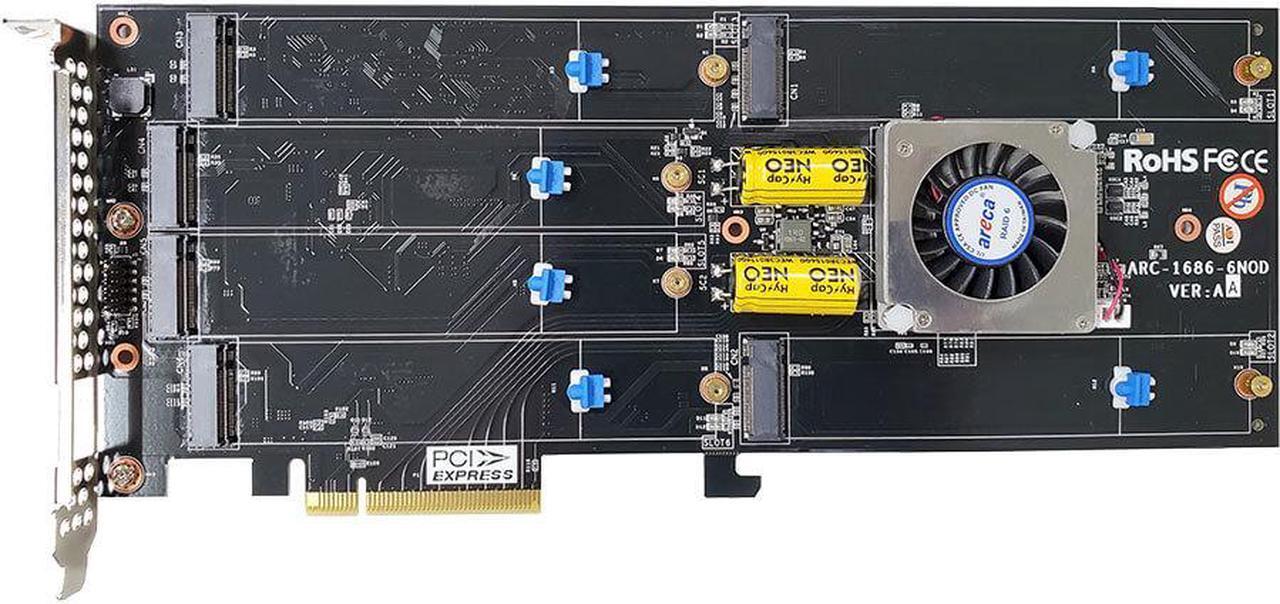

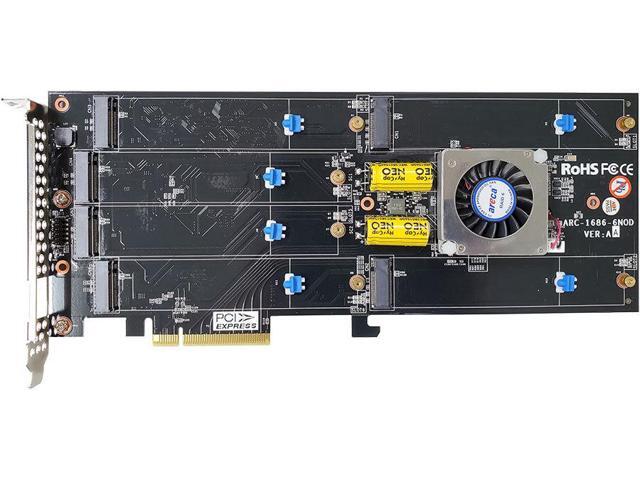

Areca ARC-1686-6NOD Tri-Mode Gen 4 PCIe Hardware RAID Adapter With 6 Bay M.2 NVMe Connector
- Hardware secure boot ready
- x8 PCIe Gen 4.0 host interface
- Support individual NVMe PowerDisable feature
- RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD
- Device interface PCIe Gen4 NVMe / 6Gbps SATA per M.2 slot
- Support off module power loss protection for Non PLP NVMe drive using on-board supercapacitor
- Broad operating support including Windows, Linux (open source), FreeBSD (open source) and Mac
- Redundant flash image for adapter availability
- Capacity expansion, RAID level/stripe size migration
- SED support for hardware NVMe encryption capable drives
- Tri-mode interface at each M.2 bays - 12Gb/s SAS/SATA / Gen 4.0 PCIe (NVMe)
+
+
Overview

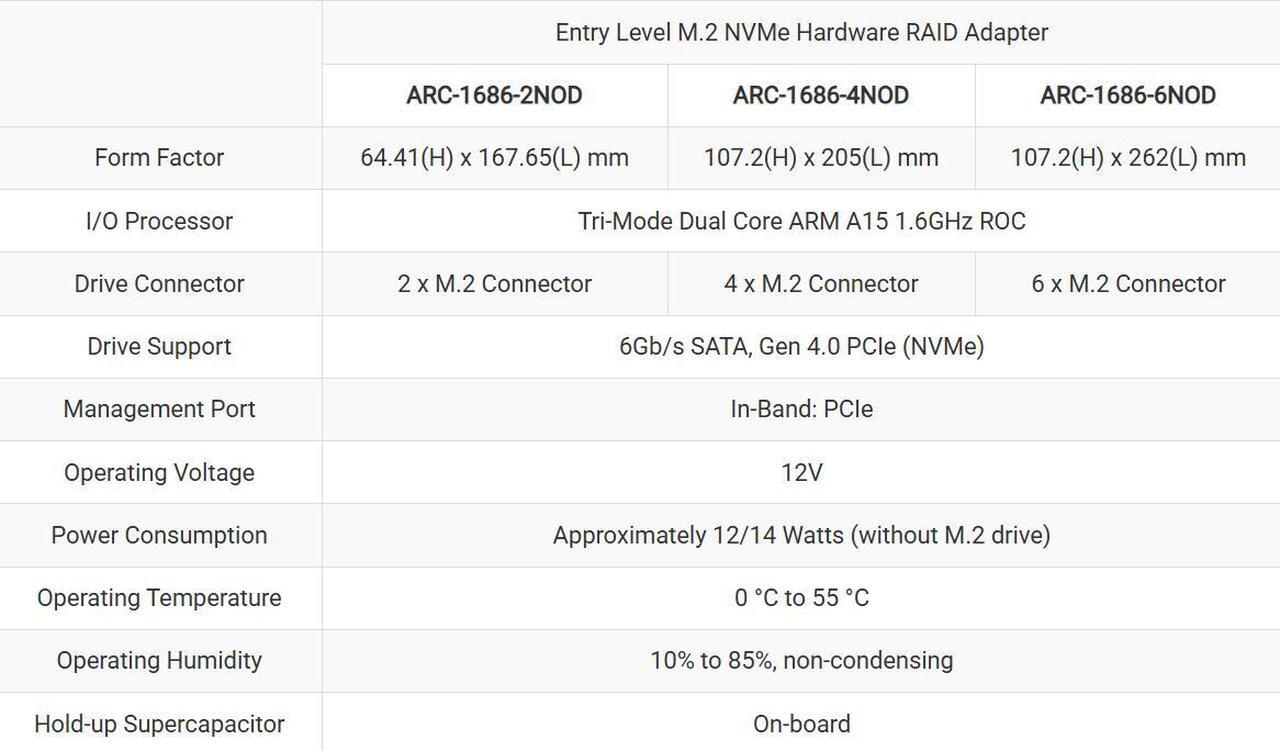

Specs
Reviews
The ARC-1686 series presents the advanced hardware RAID technology in enhanced performance of using 2/4/6 Bays M. 2 NVMe. The hardware RAID adapter support off module power loss protection (PLP), on-board hold up supercapacitor, and M. 2 slot Power Disable feature for guaranteed data protection. This is designed in a 1.6 GHz dual-core ROC processor and PCIe Gen 4.0 host/device interface and supports RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD.
