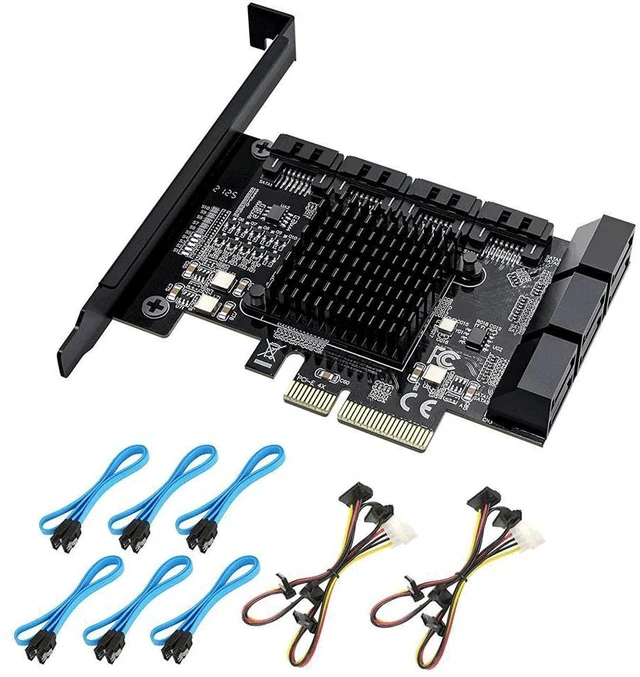

10 Port PCI Express to SATA 3 Expansion Card 6Gbps PCIe X4 Host Controller Standard Profile Bracket for Desktop PC Storage Upgrade System with 6 SATA Cables and 2 Power Splitter Cables
- 1. Massive Storage Expansion: Equipped with 10 SATA 3.0 interfaces, supporting the simultaneous connection and operation of up to 10 SATA hard disks to maximize your system's storage capacity.
- 2. High-Speed 6Gbps Transfer: Delivers fast and efficient data transfer speeds up to 6Gbps, ensuring quick file backups and smooth data management for massive storage needs.
- 3. Premium Dual Chipset: Built with the highly efficient JMB575 + JMB1064 dual chipset architecture, which significantly improves the card's overall hardware stability and system compatibility.
- 4. Versatile PCIe Slot Compatibility: Designed with a PCIe Gen 2 X1 interface, this host controller card works seamlessly on motherboards equipped with an available PCIe X1, X4, X8, or X16 slot.
- 5. Standard Chassis Installation: Comes complete with a standard profile bracket, making it highly compatible and easy to install in most standard-sized desktop computer chassis on the market.
- 6. Motherboard RAID Synchronization: While the card itself operates as non-RAID, it allows you to configure and build a RAID setup perfectly if your motherboard natively features built-in RAID functions.
- 7. System Boot Advisory: Although the system can be configured to boot from this SATA card, it is officially recommended to use this expansion card for secondary data storage rather than as your primary system boot disk.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Key Features / Bullet Points:

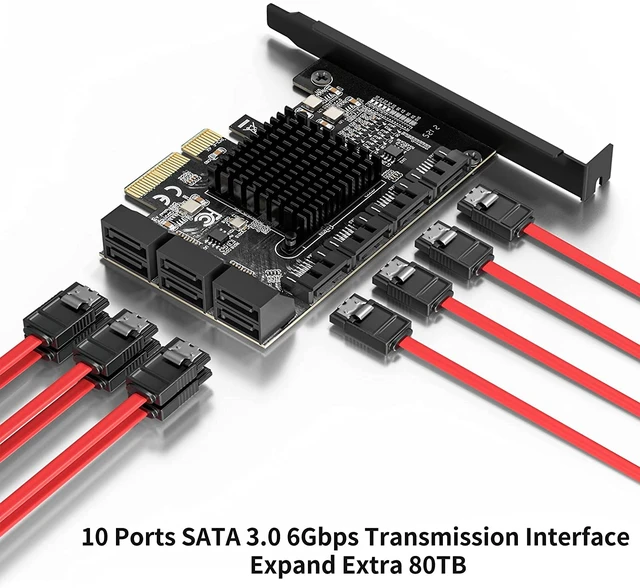

- Massive Storage Expansion: Instantly add up to ten 6Gbps SATA 3.0 devices to your Desktop PC or Server simultaneously. Supports multiple HDDs working stably at the same time.

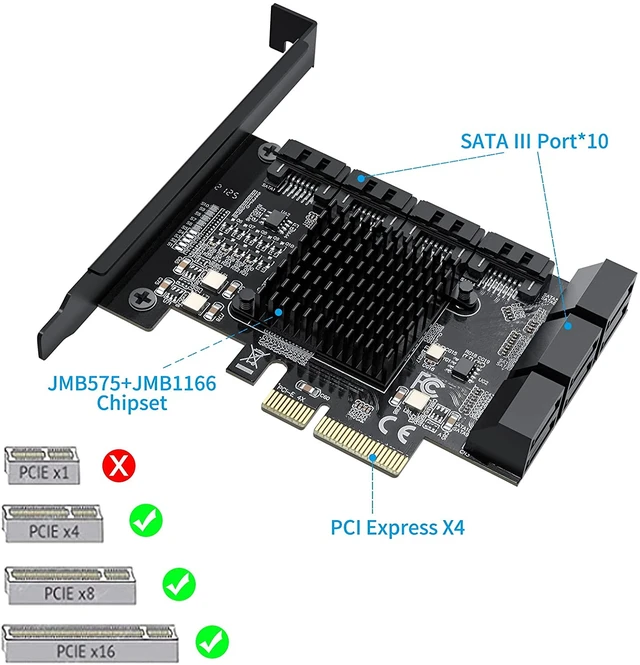

- Premium Dual Chipset: Equipped with advanced JMB575 and JMB1166 chipsets, ensuring fast data transfer speeds and maintaining low thermal values during heavy workloads.
- Powerful Heat Dissipation: Built-in premium heat sink installed directly on top of the chip, actively dissipating heat to provide a normal and safe temperature environment for continuous operation.

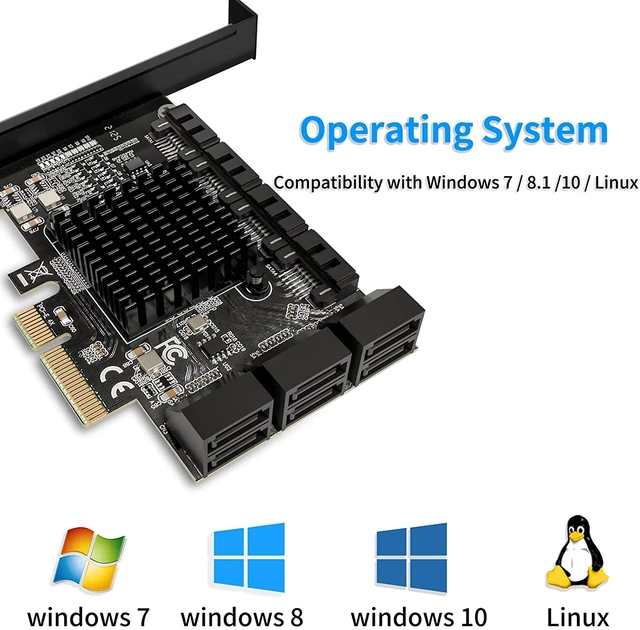

- Broad System Compatibility: Fully compatible with Windows 10 / 8 / 7 (32/64-bit) and Linux operating systems.
- Advanced Functions Supported: Native support for hot plug and hot swap technologies, providing flexible and convenient storage management.
Detailed Description:
Upgrade your desktop PC or server storage capacity with this high-performance 10-Port SATA 3.0 PCIe Expansion Card. Utilizing a PCIe X4 interface, this host controller card is highly versatile and can be used on PCIe X1, X4, X8, and X16 slots (ensure your motherboard has at least one available slot). Designed for ultimate stability, it provides a seamless solution for massive data storage, backups, and server upgrades without compromising speed or reliability.
Important Notes Before Purchase (Please Read):
- Chassis Size Check: This card comes with a Standard Profile Bracket (full-size). It is compatible with most standard-size chassis on the market but is NOT compatible with slim-size PCs.
- Driver Requirement: Driver installation is strictly required before adding HDDs to the system.
Learn more about the Detailed Specifications

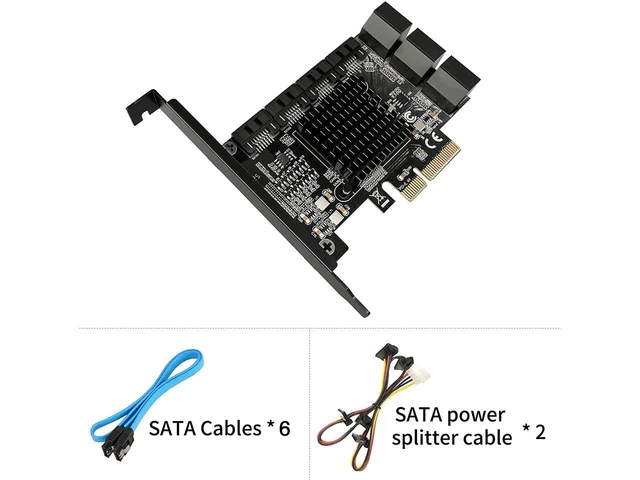

Model Part Expansion Card Details Type Controller Interface PCI-Express 2.0 x1 Transfer Rate Up to 6Gb/s RAID No Features Features Supports hot plug and hot swap; built-in heatsink; non-RAID operation; supports motherboard RAID synchronization Package Contents Package Contents 6 SATA cables; 2 power splitter cables Additional Information First Listed on Newegg September 21, 2026
