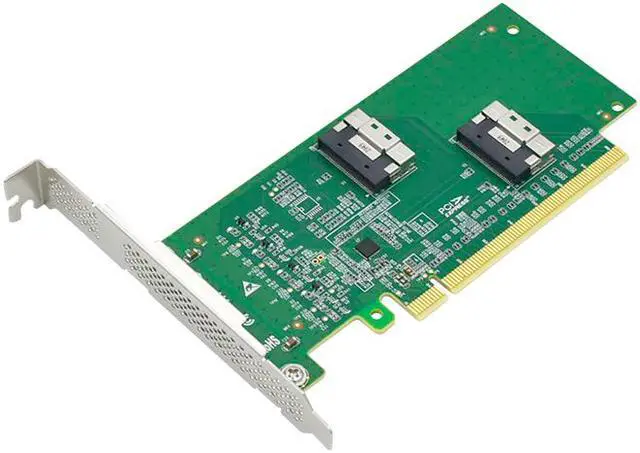

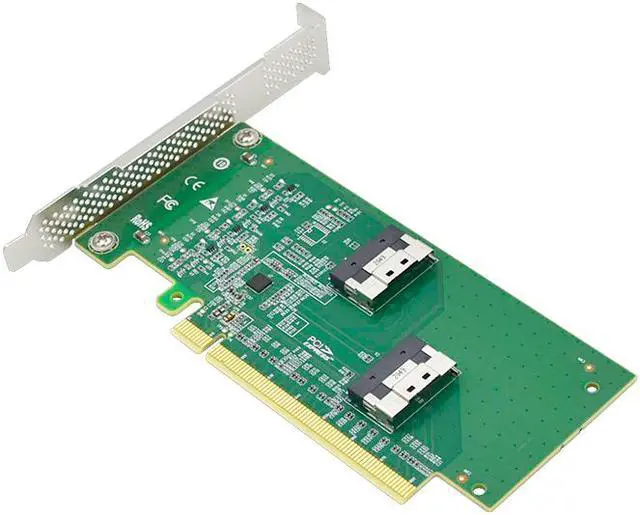

Linkreal PCIe X16 to SlimSAS (SFF-8654) 8i Bifurcation Adapter Support PCIe 4.0 U.2 NVMe SSD

Features Directly connected to PCIe 4.0 U. 2 NVMe SSD by SFF-8654 8i to SFF-8639 cable Support bifurcated in quad x4data link width configuration (CPU and BIOS both support) Support bifurcated in two x8 data link width configuration (CPU and BIOS both support) Build in SlimSAS(SFF-8654) 8i connector 2 sets, pin-out defined by SFF-9402 for high-performance storage connectivity Eight internal lanes per SlimSAS 8i port, 12GB/s per port PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket for small form factor computer. Specifications PCI Express Base Specification, r 4.0, compatible PCIe 1.0 & 2.0 & 3.0 Compliant with SFF-8654 Specification Version 1.2 Compliant with NVM Express 1.3 Support up to 4 NVMe SSDs Optional Cables Slim SAS 8i to 2x SFF-8639 Cable Slim SAS 8i to Slim SAS 8i Cable Slim SAS 8i to 2x Slim SAS 4i Cable Operating system support The adapter does not require a driver for operation or communication to attached NVMe drives.

The drives are presented natively to the host and use the native NVMe drivers. Redhat Free BSD Vmware Linux Windows Application Suitable for higher performance of PCIe Gen 4 connections for Storage Servers, Data Center, Servers RAIDs and Controllers.
