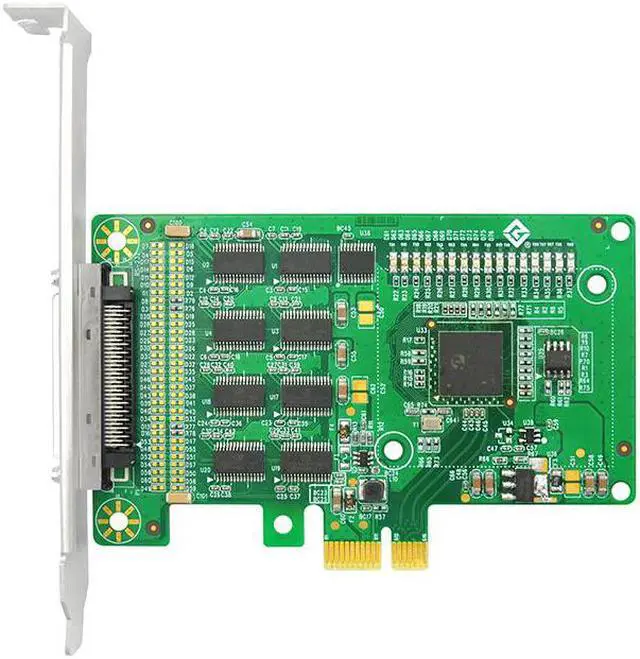

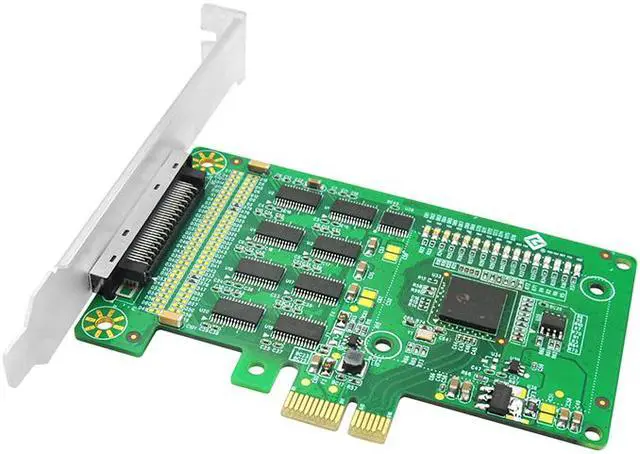

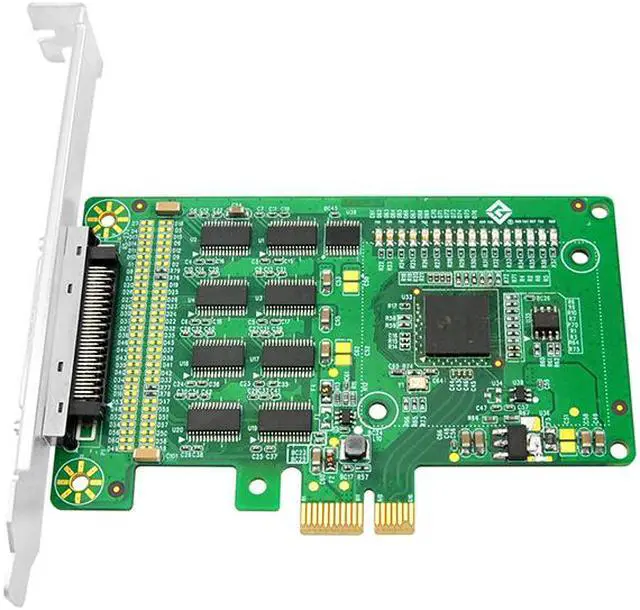

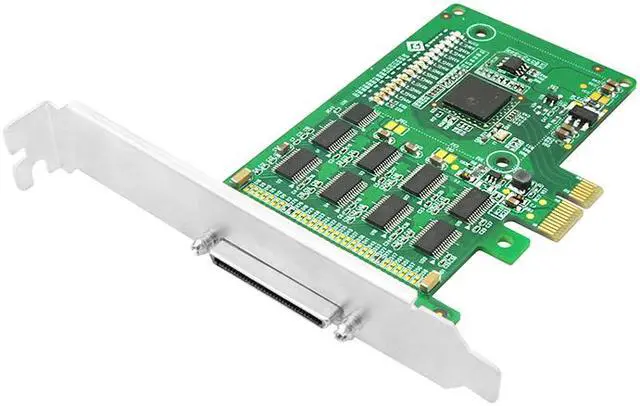

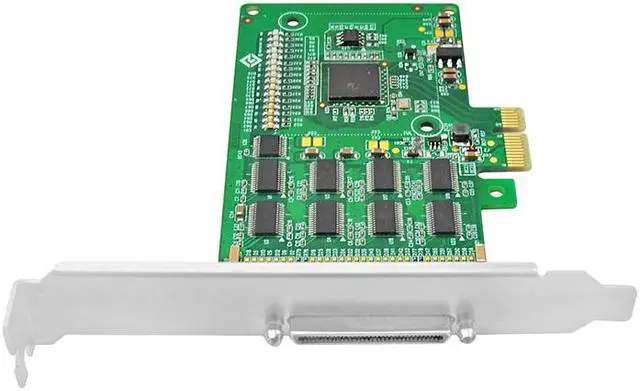

Linkreal 8-port DB 9 Serial RS-232 PCI Express x1 Controller Card with XR17V352 chips and low profile bracket For POS and ATM Applications
- Product Model:LRUA9258-232
- Product Name:8 Port PCIe x1 to RS-232 Series Adapter
- Interface Type:1*68Pin VHDCI
- Interface Cable:68Pin VHDCI to 8 DB9
- Support Equipment:8*RS-232 connector
- Host Bus Type:PCIe 2.0 x1
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The LRUA9258 is a smart, 8-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux. In addition, each of the boards eight RS-232 serial ports supports a fast 921.6 kbps band rate. Smaller Form Factor The LRUA9258 is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.
PCI Express 1.1 compliant 921.6 kbps maximum baudrate for fast data transmission 128-byte FIFO and on-chip H/W, S/W flow control Variety of connection cables available for RS-232/422/485 Low-profile form factor fits small-sized PCs Drivers provided for a broad selection of operating systems, including Windows, Linux Easy maintenance with built-in LEDs and management software
PCI Express 1.1 compliant 921.6 kbps maximum baudrate for fast data transmission 128-byte FIFO and on-chip H/W, S/W flow control Variety of connection cables available for RS-232/422/485 Low-profile form factor fits small-sized PCs Drivers provided for a broad selection of operating systems, including Windows, Linux Easy maintenance with built-in LEDs and management software
