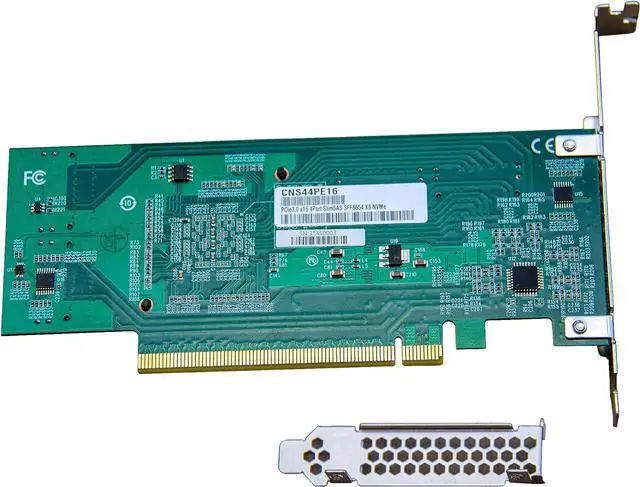

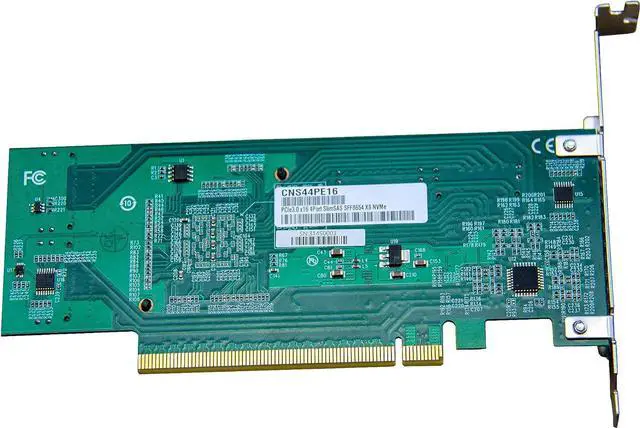

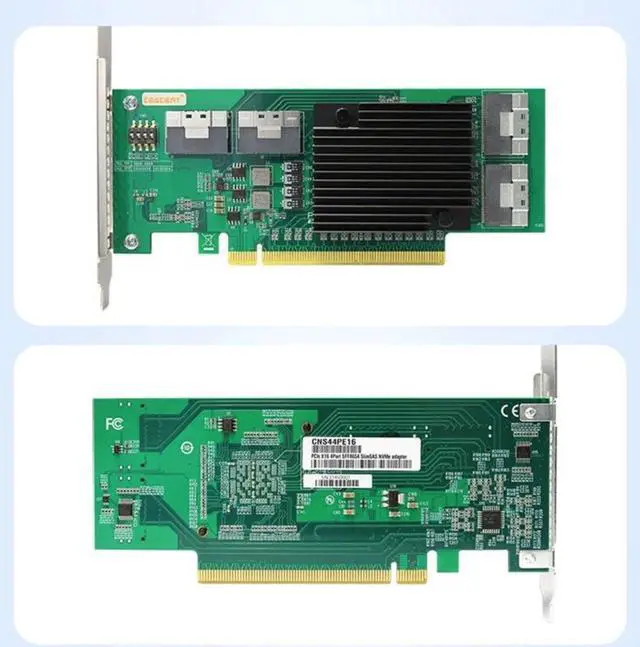

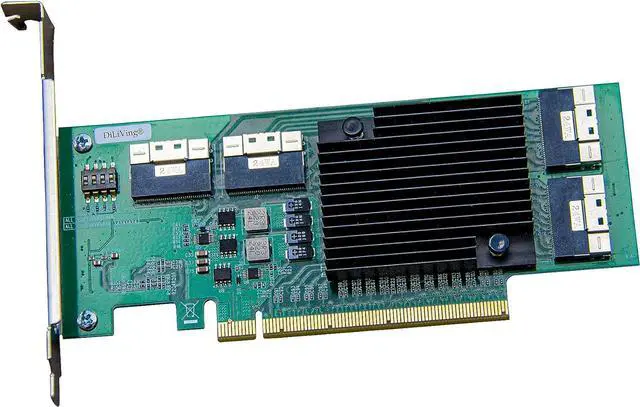

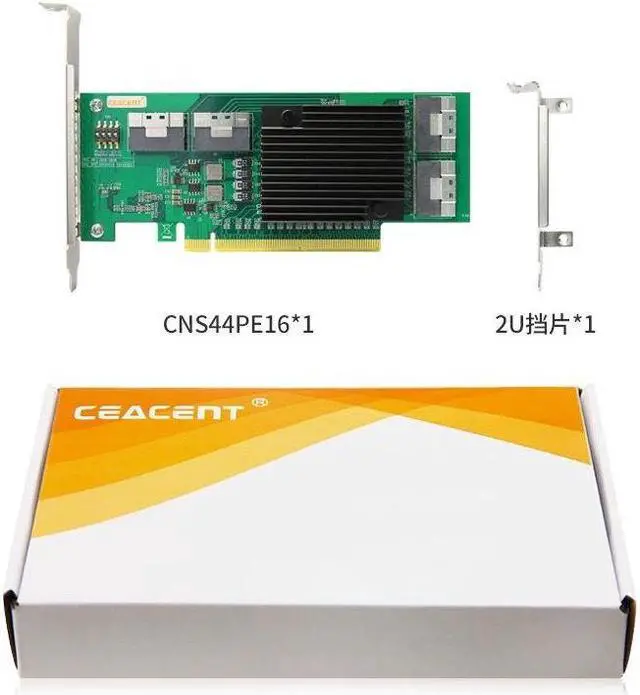

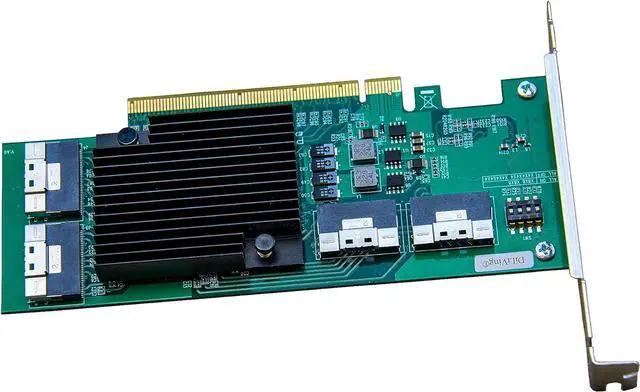

PCI Express x16 to 4*SlimSAS 8X Expander, 8*U.2 NVMe SSD Adapter with SFF-8654 74 Pin Connector and Broadcom PLX8748 chipset for Servers
- Description LRNV9349 NVMe Series is PCI Express x16 Gen3 Multi-Host PCIe switch Card. It offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.
- Functional Characteristics Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0). Compliant with PCI Power Management Spec, r1.2. Microsoft Vista Compliant. Supports Access Control Services. High Performance. Non-blocking switch fabric, Full line rate on all ports. Quality of Service. Eight traffic classes per port. Reliability, Availability, Serviceability. Supports PCIe NVME ports.
- Parameter Model: DL-CNS44PE16 Drive Quantity: 8 Internal Controller Chip: PLX PEX 8748 Bus Type: PCI Express Drive Connector: SFF-8654 (74-pin, x8/16 PCIe Gen 3) Host Connector: PCI Express x16
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
The DL-CNS44PE16 NVMe series is a PCI Express x16 Gen3 multi-host PCI-e switch card. It provides multi-host PCI Express switching capabilities, enabling users to connect multiple hosts to their respective endpoints over a scalable, high-bandwidth, non-blocking interconnect with a variety of applications, including server, storage, communications, and graphics platform) to connect. High Performance and Low Packet Latency The CNS44PE16 supports packet passthrough with a maximum latency of 126ns (x16 to x16). Combined with large packet memory, flexible common buffers/FC credit pools, and non-blocking internal switch architecture, it delivers full line-rate on all ports for performance-hungry applications such as servers and switch fabrics.
The DL-CNS44PE16 NVMe series is a PCI Express x16 Gen3 multi-host PCI-e switch card. It provides multi-host PCI Express switching capabilities, enabling users to connect multiple hosts to their respective endpoints over a scalable, high-bandwidth, non-blocking interconnect with a variety of applications, including server, storage, communications, and graphics platform) to connect. High Performance and Low Packet Latency The CNS44PE16 supports packet passthrough with a maximum latency of 126ns (x16 to x16). Combined with large packet memory, flexible common buffers/FC credit pools, and non-blocking internal switch architecture, it delivers full line-rate on all ports for performance-hungry applications such as servers and switch fabrics.
