Bailink Dual M.2 PCIE Adapter, M.2 SSD NVME (M Key) & SATA (B Key) Adapter with SATA cable for One M.2 NVMe and One SATA SSD 22110/2280/2260/2242/2230 to PCI-e x4 Host Controller Expansion Card
1.Bailink Dual M.2 PCIE Adapter, Come with SATA cable

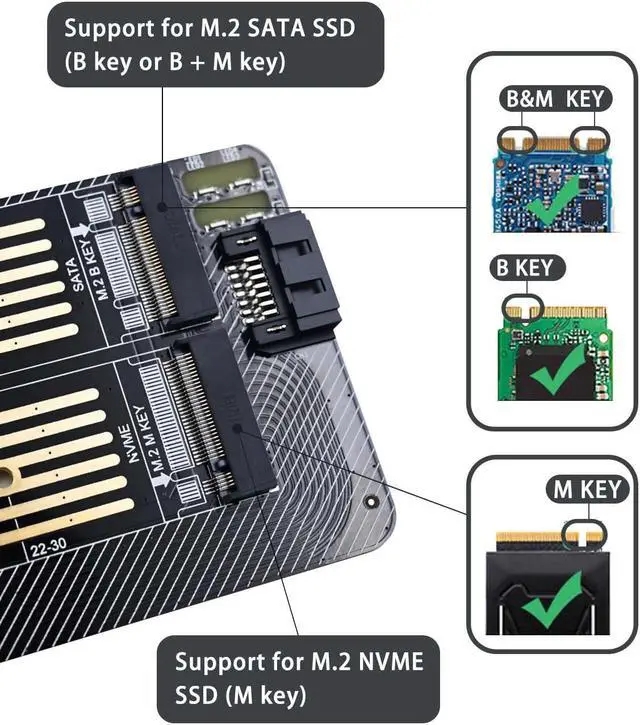

2.2.Dual M.2 PCIE Adapter - Enhance your storage capabilities with our Dual M.2 PCIE Adapter, Converts one M.2 NVMe SSD (M Key) interface to PCIe 3.0 x4 interface (PCIe 2.0 Compatible), Converts one M.2 SATA SSD (B Key or B+M Key) interface to SATA 6Gbps interface
3.Compatible interfaces - Enjoy wide compatibility with various M.2 SSD sizes, including 22110/2280/2260/2242/2230, providing flexibility to accommodate different storage requirements,and supporting PCI Express X4, X8, X16 interfaces.
4.Application System - Compatible with a wide range of application systems including Windows 11/10/8, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, and Red Hat, making it versatile and convenient to use(No driver required).
5.Including both regular size and low-profile slot brackets for flexible system chassis installation. LED power and data transfer status.
6.PCB 24 X 5 copper hole effective ventilation heat dissipation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
About this Item 1. Bailink Dual M. 2 PCIE Adapter, Come with SATA cable 2.2. Dual M. 2 PCIE Adapter - Enhance your storage capabilities with our Dual M. 2 PCIE Adapter, Converts one M. 2 NVMe SSD (M Key) interface to PCIe 3.0 x4 interface (PCIe 2.0 Compatible), Converts one M. 2 SATA SSD (B Key or B+M Key) interface to SATA 6Gbps interface 3. Compatible interfaces - Enjoy wide compatibility with various M. 2 SSD sizes, including 22110/2280/2260/2242/2230, providing flexibility to accommodate different storage requirements, and supporting PCI Express X4, X8, X16 interfaces. 4. Application System - Compatible with a wide range of application systems including Windows 11/10/8, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, and Red Hat, making it versatile and convenient to use (No driver required). 5. Including both regular size and low-profile slot brackets for flexible system chassis installation. LED power and data transfer status. 6. PCB 24 X 5 copper hole effective ventilation heat dissipation 7. What you would get: M. 2 (NVME & SATA) SSD Adapter Card x1. Regular/Low Profile PCIe Bracket x2, SATA Cable x1, Screwdriver x1, Screw kit x6
Features: Supports one M. 2PCIe (NVMe or AHCI) SSD and one M. 2 SATA 6Gbps SSD simultaneously Supports PCIE M. 2 SSD (NVMe or AHCI, Key-M) SupportsSATA-based M. 2 SSD (Key-B / B+M) Supports PCIe Gen3 and PCIe Gen2 M. 2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD Supports PCIe 1.0, PCIe 2.0, PCIe 3.0 and PCIe 4.0 motherboard PCB 24 X 5copper hole effective ventilation heat dissipation, Including 2 heat sinks Transparent tothe operating system and no driver required
NOTE: You are kindly reminded that the 7-pin SATA cable must be connectedto motherboard if you want to read the M. 2 SATA SSD (Key B). (SATA Cable Has Been Included) You are kindly reminded that this adapter only support PCIe X4 X8X16 slot. DO NOT support PCIe X1 slot.

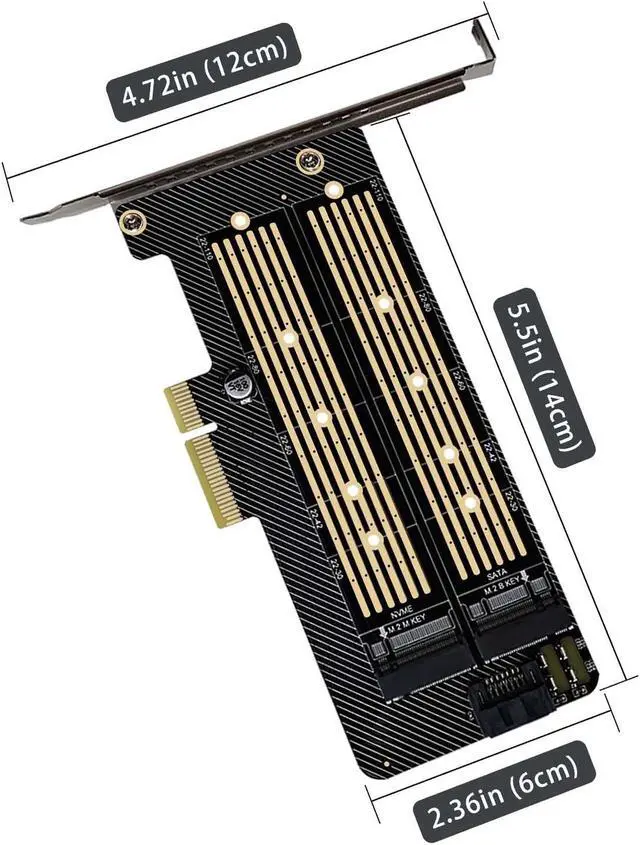

Size support: Supports NVME & SATA M. 2 SSD(22110mm/2280mm/2260mm/2242mm/2230mm)
System: Supports any OS like Windows, Mac and Linux. (no driver required)

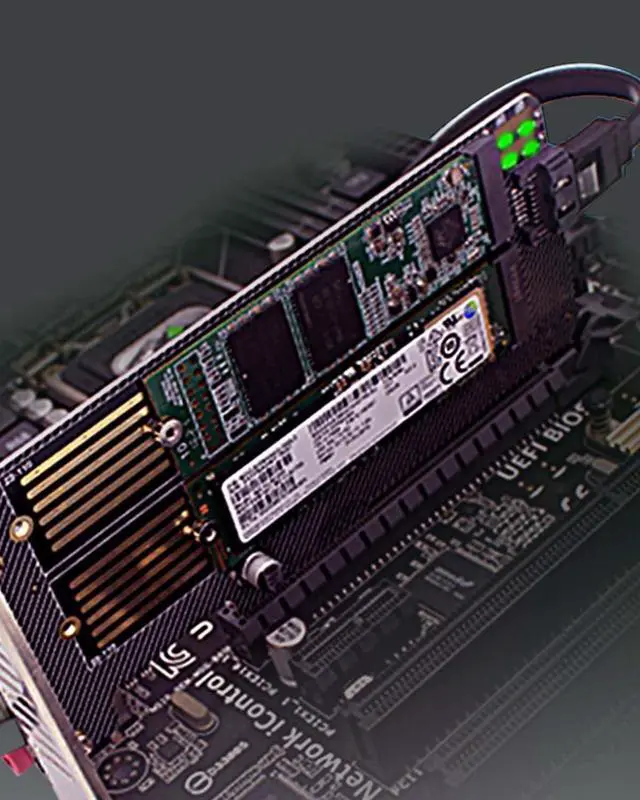

Supports two M.2 SSD simultaneously (One SATA interface and one NVMe interface)
Converts one M.2 NVMe SSD (M Key) interface to PCIe 3.0 x4 interface (PCIe 2.0 Compatible), Converts one M.2 SATA SSD (B Key or B+M Key) interface to SATA 6Gbps interface (SATA cable connection required)
Supports one M.2PCIe (NVMe or AHCI) SSD and one M.2 SATA 6Gbps SSD simultaneously
Transparent tothe operating system and no driver required
NOTE :
Please note that it does not support connecting two NVME SSDs or two SATA SSDs.
Please note that this adapter only supports PCIe X4 X8 X16 slots. PCIe X1 slot not supported.

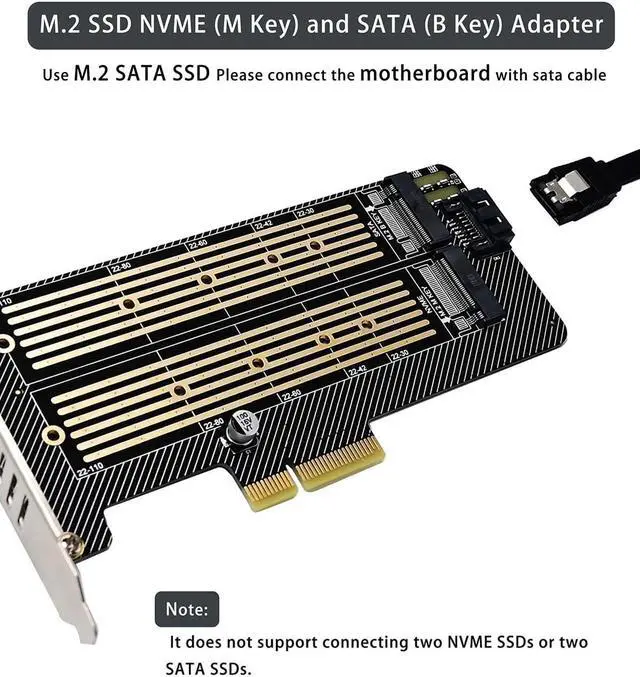

Please note that if you want to read the M.2 SATA SSD (Key B), you must connect a 7-pin SATA cable to the motherboard.
Compatibility
Size support
Supports NVME & SATA M.2 SSD(22110mm/2280mm/2260mm/2242mm/2230mm)
System
Supports any OS like Windows, Mac and Linux.(no driver required)

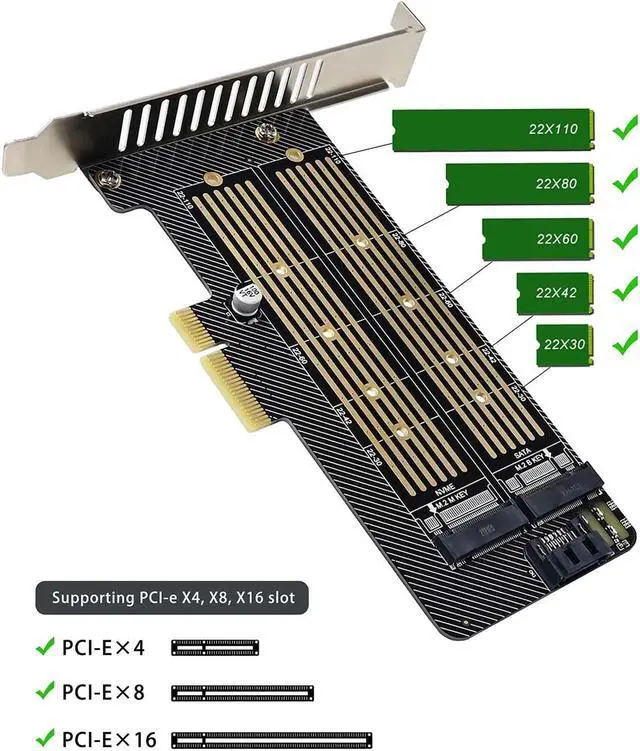

Applicable Slots
Supports PCI-Express X4, X8, X16 slots.

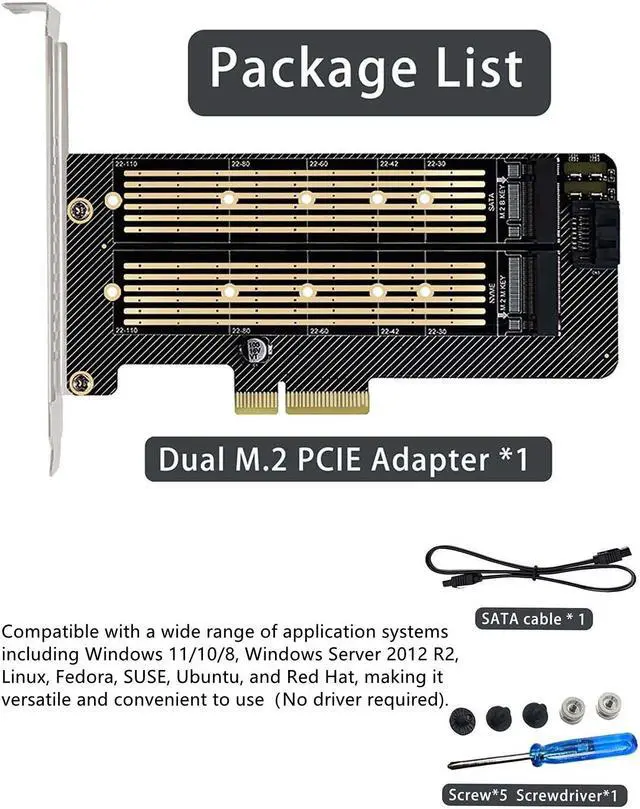

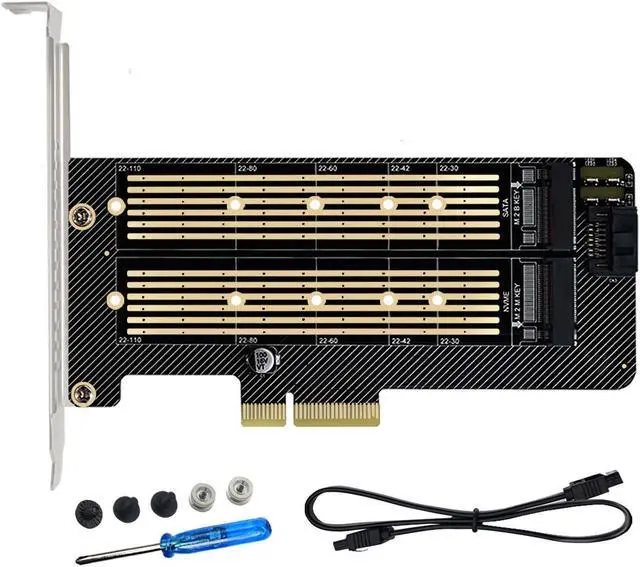

Package list
Dual M.2 PCIE adapter *1
SATA cable * 1
M2 screw * 2
Screwdriver * 1
PCIE blacket screw *1
Learn more about the Detailed Specifications
Details
Type
Controller Cards
Features
Features
1.Bailink Dual M.2 PCIE Adapter, Come with SATA cable and Screw Screwdriver 2.Dual M.2 PCIE Adapter - Enhance your storage capabilities with our Dual M.2 PCIE Adapter, Converts one M.2 NVMe SSD (M Key) interface to PCIe 3.0 x4 interface (PCIe 2.0 Compatible), Converts one M.2 SATA SSD (B Key or B+M Key) interface to SATA 6Gbps interface 3.Compatible interfaces - Enjoy wide compatibility with various M.2 SSD sizes, including 22110/2280/2260/2242/2230, providing flexibility to accommodate different storage requirements，and supporting PCI Express X4, X8, X16 interfaces. 4.Application System - Compatible with a wide range of application systems including Windows 11/10/8, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, and Red Hat, making it versatile and convenient to use（No driver required). 5.Including both regular size and low-profile slot brackets for flexible system chassis installation. LED power and data transfer status. 6.PCB 24 X 5 copper hole effective ventilation heat dissipation 7.What you would get :M.2 (NVME & SATA) SSD Adapter Card x1.Regular/Low Profile PCIe Bracket x2,SATA Cable x1,Screwdriver x1,Screw kit x6
