5 Ports Sata 3.0 to M.2 M-Key Adapter PCIE 3.0 X2 Sata3.0 6Gbps Riser Expansion Card for Desktop PC Computer Converter

Features
M.2 Key-M SATA3.0 expansion card adopts the latest JMB585 chip solution, high-speed transmission and stable performance.

There are five Sata ports extending the PC host to the M.2 Key-M slot, and the transmission speed of each port up to 6Gbps.The M2 Key-M SATA3.0 expansion card realizes PCI-Express Gen 3x2 circuit bandwidth

Comply-with M.2 Key-M standard,compatible with Sata specification revision 3.2

Transmission protocol: PCIe x2, supports up to two lanes of PCI-Express

Plug and-play, no other software installation or setup required. Support PCI-Express link layer power saving mode.

Specifications:
Chip group: JMB585
Transmission protocol: PCI-E x2
Media interface: 5 x SATA3.0
Transmission rate: 6Gbps
Operating system: Win7 / Win8 / Win8.1 / Win10 32&64bit, Linux
Compatible with PCI-Express basic specification revision 3.1a
Support command-based and FIS-based port -multipliers
Support ahci mode and IDE programming interface
Support native-command queue (NCQ)
Support Sata Link power-saving mode (partial and hibernation)
Support Sata plug-in detection function
Support drive power control and staggered rotation
Support Sata Partial / Slumber power management
Material:Metal

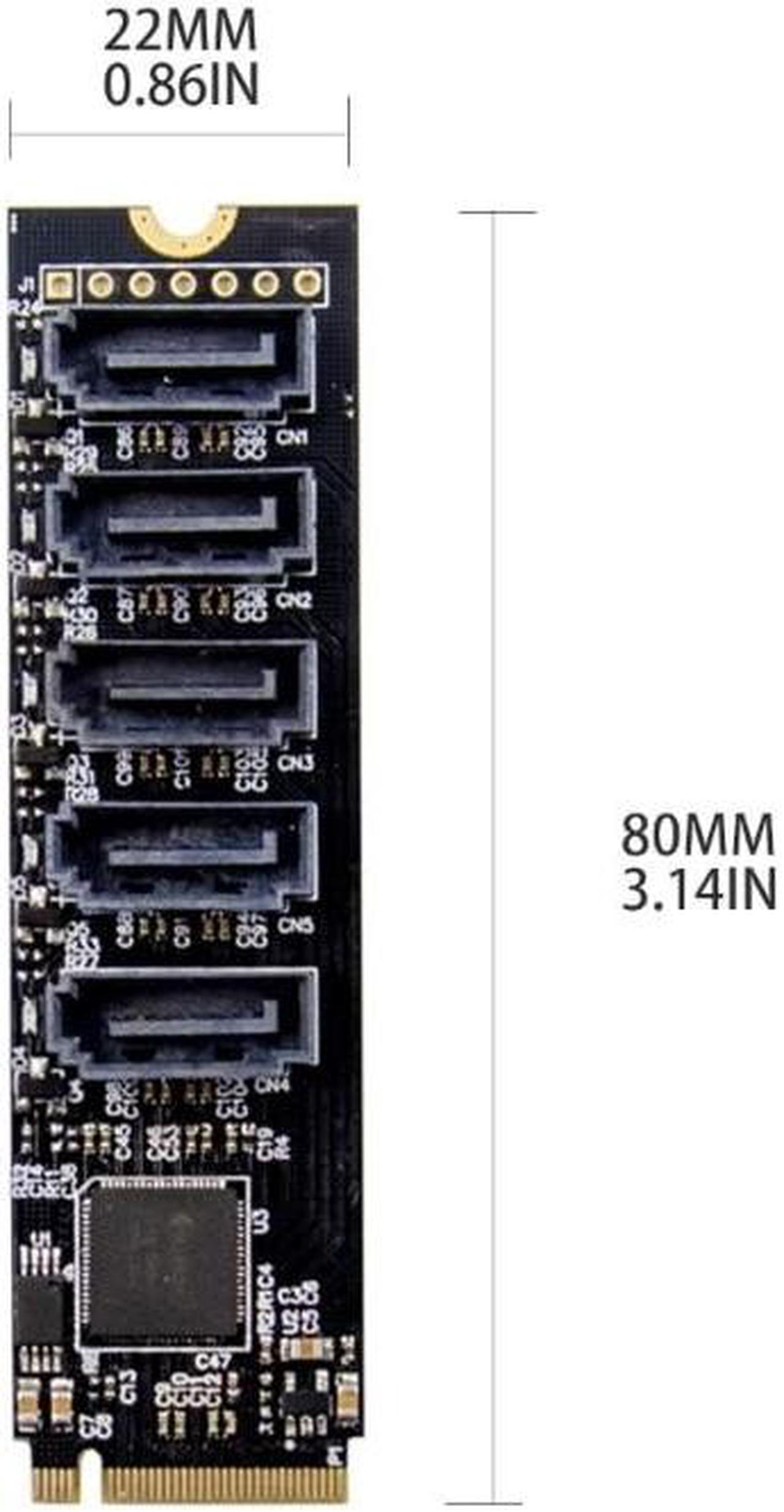

Size: approx 22 x 80mm/0.87x3.15in
Note:
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error 1-3cm.
Package Includes:
1PC x M.2 Key-M SATA3.0 Expansion Card
