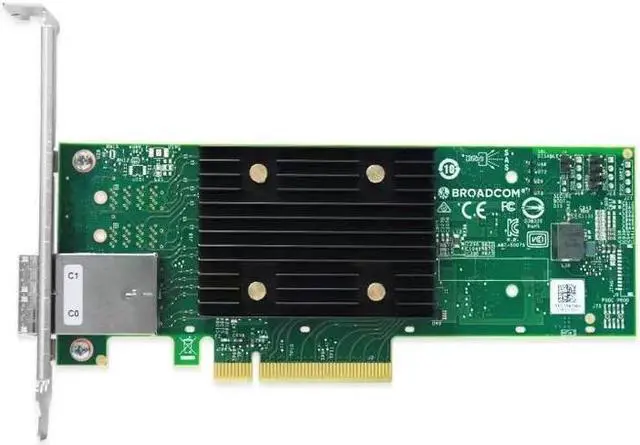

BROADCOM LSI HBA 9500-8e 05-50075-01 SAS3808 HBA
- The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces.
- With increased bandwidth and IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance and scalability needed by critical applications.
- Connects up to 1024 SAS/SATA devices or 32 NVMe devices
- Provides maximum connectivity and performance for high-end servers and applications
- Support critical applications with the bandwidth of PCIe 4.0 connectivity
- Universal Bay Management (UBM) Ready
- Note: This data is official and should be based on actual trial use
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Lifecycle: Active
Brackets: Full height and low profile
Devices Supported: SAS/SATA: 1024, NVMe: 32
External Connectors: 2 x4 SFF-8644 (ext HD)
External Ports: 8
Generation: 12 Gb/s
Host Bus Type: x8 lane PCI Express 4.0
I/O Controller: SAS3808
Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF: > 5, 000, 000 hours at 40° C
Operating Humidity: 20% to 80% Non-condensing
Operating Temperature°C: 0°C to 55°C
OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Citrix XenServer, CentOS Linux, Ubuntu Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions: 167.65 (+/- 0.13 ) mm x 68.77 (+/- 0.13 ) mm
Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power: 6.12W
broadcom. com/support/warranty/internal-raid-hba
What's in the box: 9500-8e HBA, Low Profile Bracket, FH (attached)
Note: This data is official and should be based on actual trial use
Brackets: Full height and low profile
Devices Supported: SAS/SATA: 1024, NVMe: 32
External Connectors: 2 x4 SFF-8644 (ext HD)
External Ports: 8
Generation: 12 Gb/s
Host Bus Type: x8 lane PCI Express 4.0
I/O Controller: SAS3808
Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF: > 5, 000, 000 hours at 40° C
Operating Humidity: 20% to 80% Non-condensing
Operating Temperature°C: 0°C to 55°C
OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Citrix XenServer, CentOS Linux, Ubuntu Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions: 167.65 (+/- 0.13 ) mm x 68.77 (+/- 0.13 ) mm
Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power: 6.12W
broadcom. com/support/warranty/internal-raid-hba
What's in the box: 9500-8e HBA, Low Profile Bracket, FH (attached)
Note: This data is official and should be based on actual trial use
