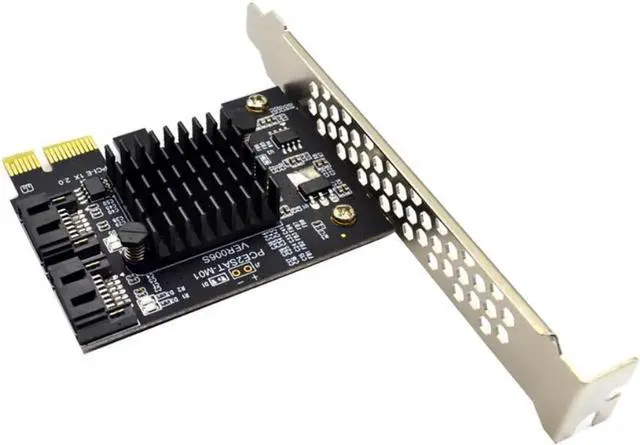

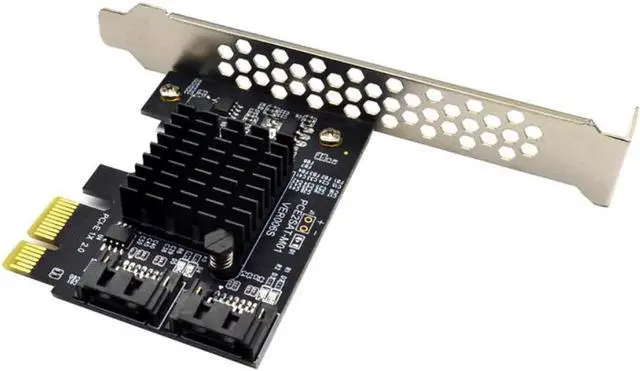

Vszerda Add On Card Controller SATA 3 PCIE SATA3 PCIE/PCI-E SATA Card/Expansion/Multiplier PCI Express SATA Port Marvell 88SE9125

Add On Card Controller SATA 3 PCIE SATA3 PCIE/PCI-E SATA Card/Expansion/Multiplier PCI Express SATA Port Marvell 88SE9125

About Description:

Specification:

Meets Serial ATA 3.0 specification, backward compatible with SATA 2.0 SATA 1.0

Compliant with PCI-Express v 2.0 specification, backward compatible with PCI-Express v 1.0.

Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps

Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

Supports Four SATA

Support AHCI 1.0 mode and IDE mode

Support native command queue (NCQ)

Supports FIS based on port multiplier switches or command switches.

Hot-swappable and hot-swappable.

Compatible with SATA6G, 3G and 1.5G Hard Drives

Bus interface: PCI-Express x1 slot(Compatible PCI-E X2 X4 X8 X16 )

Extension ports: 2 Port SATA 3.0 interfaces

Feature: with large heat sink for long time safe working

Main Chips: Marvell 88SE9125

System Requirements:

Windows 10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux

System disk and PCIE to SATA 3.0 adapter card connection conditions and solutions:

1. PCIE to SATA 3.0 SATA interface mode is AHCI mode, if you want to insert the system disk in our card, the premise is that your system disk installed on the motherboard must be AHCI mode installation, otherwise it can not pass Our card adapter card boot system.

2. If it is determined that the system disk is inserted in the AHCI mode of the SATA interface mounting system on the mainboard, then the hard disk can be directly inserted into our card, and then the mainboard BIOS is set to start the system disk as the first boot.

3. the above two conditions are available, if you still can not start, or repeatedly restart, then the motherboard hard drive interface and our adapter card conflict, the solution is to enter the motherboard BIOS, the motherboard's hard disk
