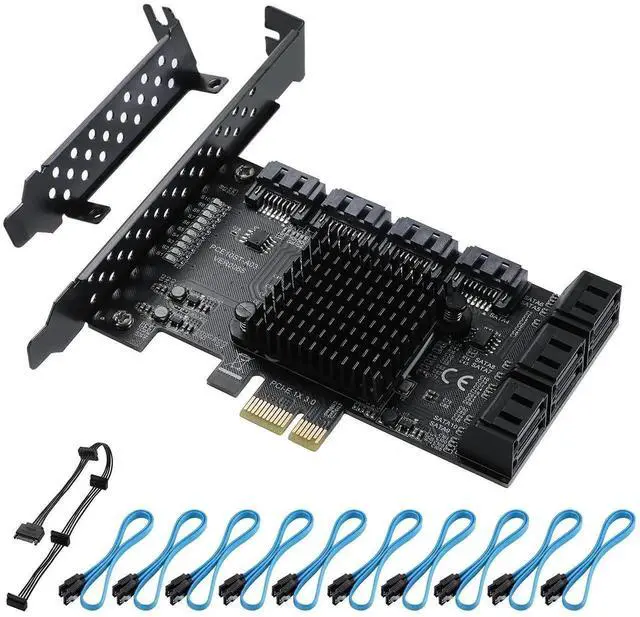

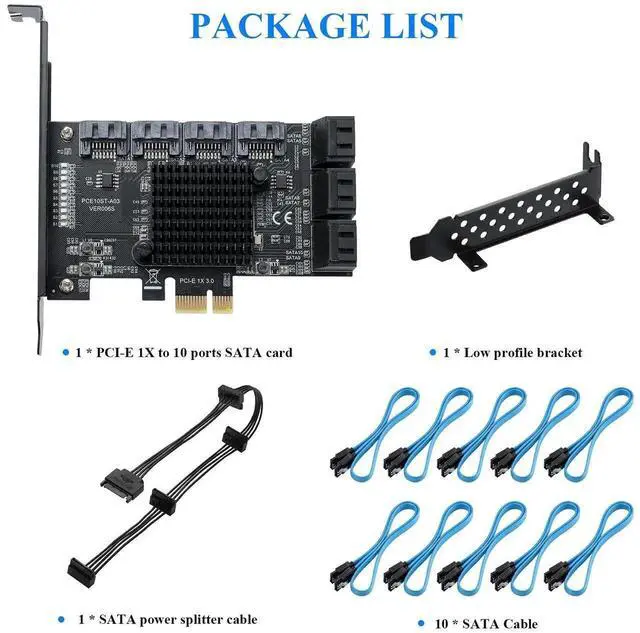

Vszerda PCIE 1X SATA Card 10 Ports,6 Gbps SATA 3.0 Controller PCIe Expansion Card,Non-Raid,Support 10 SATA 3.0 Devices,with Low Profile Bracket and 10 SATA CablesChip:ASM1166

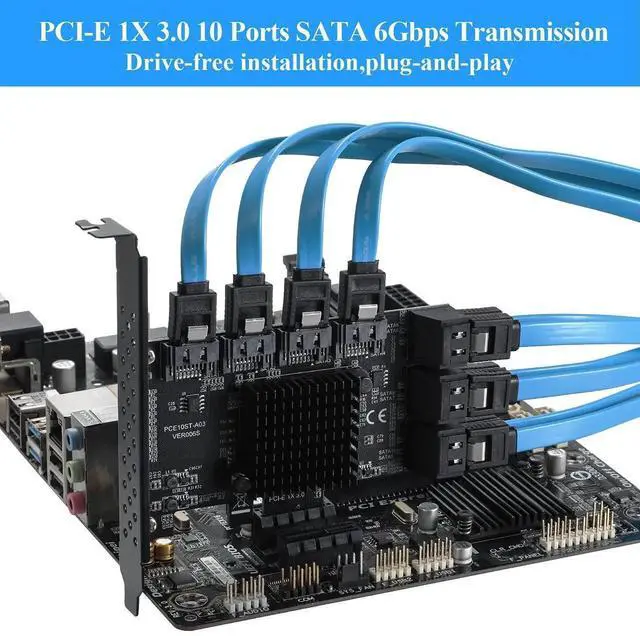

- [10 Ports PCI-E to SATA 3.0]This PCIE SATA CARD allows you to add 10 SATA 3.0 6Gbps devices to your computer. No need to drive, plug and play.
- [PCI-Express X1 interface]Compatible with PCI-Express X1 /X4 /X8 /X16 slots.(Recommended under PCI-E 3.0, faster use)

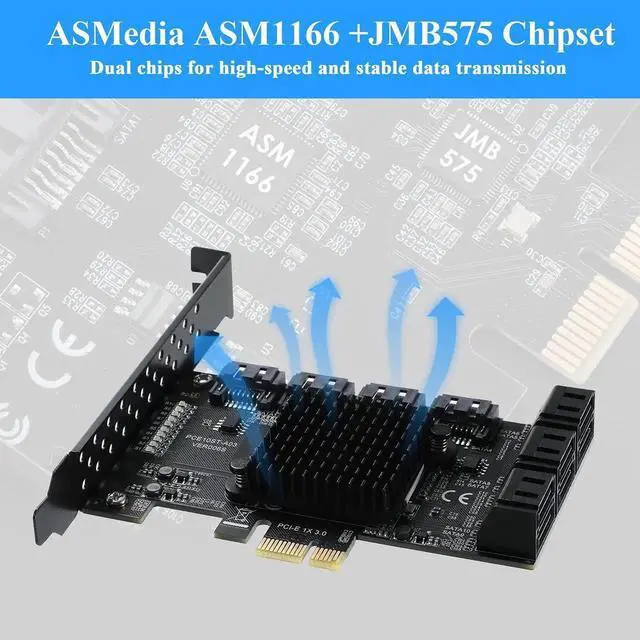

- [Powerful chip]ASMedia ASM1166 Chip, with heat sink, long-lasting high temperature resistance, high-speed and stable transmission.

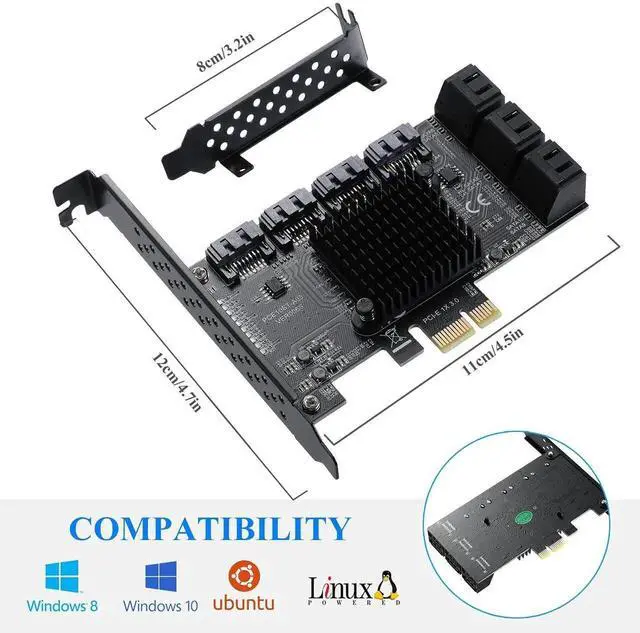

- [System support]Compatible with Windows/8/10/Ubuntu/Linux.Support SATA interface hard disk/optical drive/SSD solid state drive.
- Compatible with SATA 3 (6Gbps), SATA 2 (3Gbps), SATA 1 (1.5Gbps)Comply with PCI-Express 3.0 specification and backward compatible with PCI-Express 2.0.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product name: 10-port SATA3.0 expansion card
Product interface: PCI-E1X
Product chip: ASM1166
Support system: Windows 8 / Windows10 / Ubuntu /Linux.
(Synology can only recognize 4 hard drives; WIN7 users are not recommended to buy)
Specification:
Comply with Serial ATA 3.0 specification, backward compatible with SATA2.0 / SATA1.0
Comply with PCI-Express v3.0 specification and backward compatible with PCI-Express v2.0 / 1.0.
Support 6.0Gb/s, 3.0 Gbit/s and 1.5 Gbit/s
Support hot swap.
Compatible with SATA6G, 3G and 1.5G hard drives
Motherboard applicable slot PCI-E 1X and above
Note: RAID is not supported. The RAID in INTEL only applies to raw SATA. It is an expansion card that cannot support third-party chips.
Speed description information:
1. Use SATA3.0 data cable to achieve the best results.
(We recommend using this SATA 3.0 card in the PCIE3.0 slot to get the fastest speed.)
2. PCI-E requires a slot above V2.0. For V1.0, the speed will not exceed 250M.
3. Motherboard BOIS setting: SATA mode should be changed to AHCI.
Although some motherboards are PCIE 2.0 version, BOIS does not enable gen2 high-speed mode by default and needs to be turned on manually.
The fastest speed of PCI-E 2.0 is 380-450 m/s.
Different computer configurations and SATA SSDs have different speeds.
If the detection is incomplete or unstable, please contact us to send the driver.
