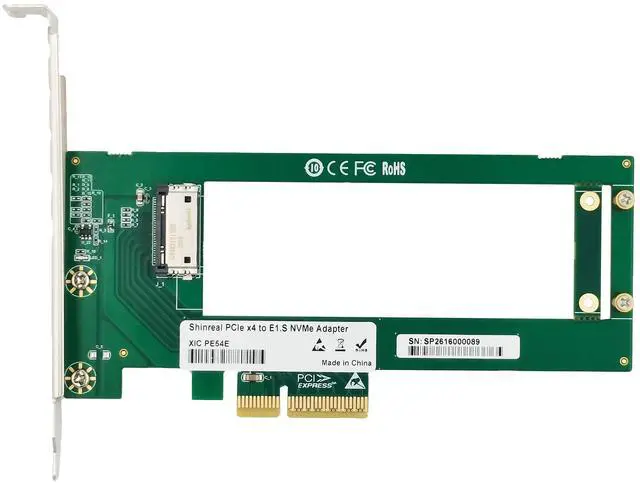

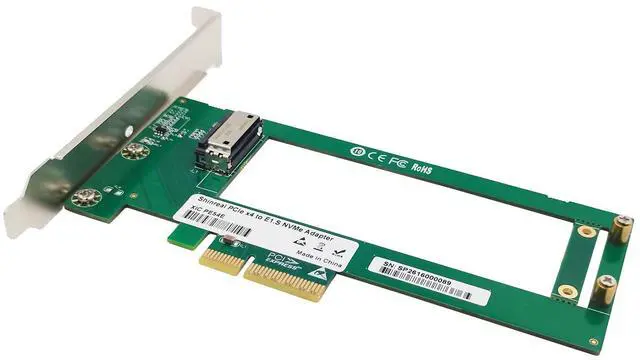

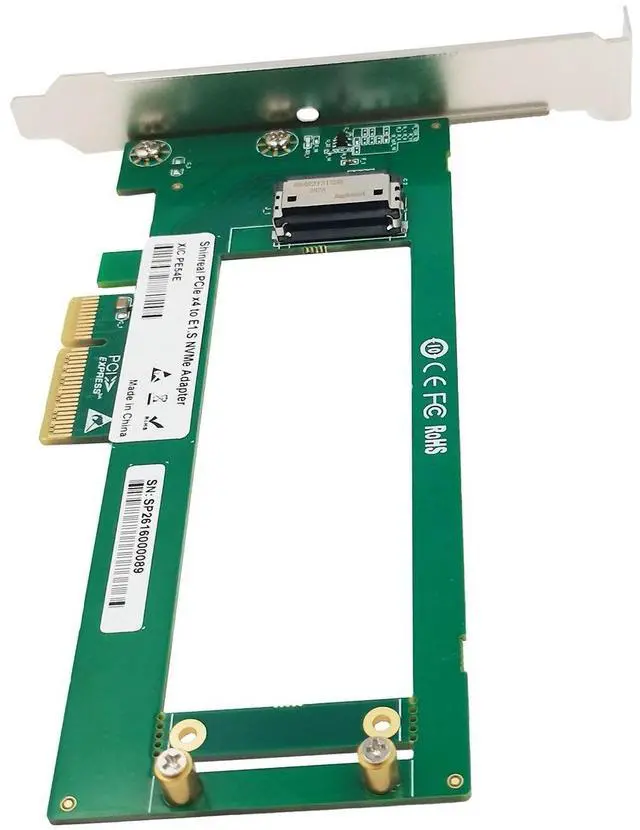

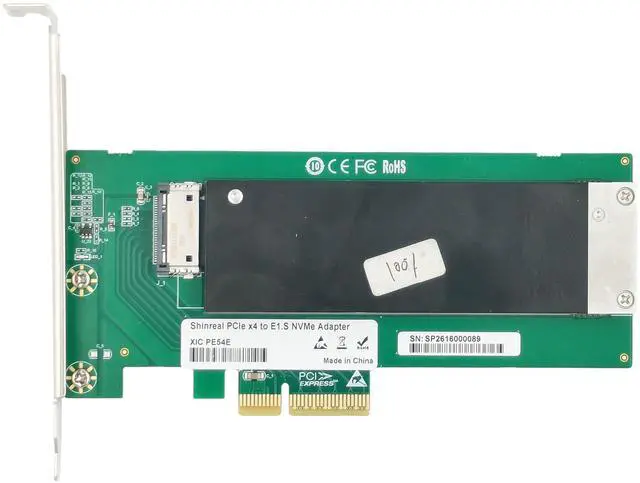

PCI-E4.0 4X Host Adapter to NVMe Ruler 1U GEN-Z EDSFF 5.9mm 9.5mm Thickness Short SSD E1.S Carrier Adapter
- This converter enables the connection of a GEN-Z SSD in E1.S. Fit for 5.9mm & 9.5mm SSD without heat sink;The converter can be installed into your system internally through the PCI-E 4X interface.
- Thus an EDSFF E1.S SSD becomes an PCI-E SSD, which can be used in IoT, data center and server area;Compliant with PCI Express 4.0. No driver installation is required. Most of the latest operating systems support PCIe-NVMe SSDs;Low profile and Regular size PCIe bracket on board.
- EDSFF offers a dynamic range of form factors that have advantages vs the incumbent SSD form factors in capacity, scalability, performance, serviceability, manageability, thermal and power management.
- EDSFF is a New SSD Form Factor for Next Gen Servers and Storage; The benefits include, but arent limited to, better signal integrity and the ability to deliver more power to an SSD for superior performance.
- E1 form factor delivers better thermal dissipation versus M.2 form factors; E1 SSDs utilize the robust EDSFF connector, allowing for high data rates; E1 SSDs enable higher density storage and better thermal management in 1U chassis; E1 form factor allows for higher power delivery versus M.2.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
PCI-E 4X Host Adapter to NVMe Ruler 1U GEN-Z EDSFF Short SSD E1.S Carrier Adapter
EDSFF offers a dynamic range of form factors that have advantages vs the incumbent SSD form factors in capacity, scalability, performance, serviceability, manageability, thermal and power management.
This converter enables the connection of a GEN-Z SSD in E1.S. Fit for 5.9mm & 8.0mm SSD without heat sink.
The converter can be installed into your system internally through the PCI-E 4X interface.
Thus an EDSFF E1.S SSD becomes an PCI-E SSD, which can be used in IoT, data center and server area.
Compliant with PCI Express 4.0. No driver installation is required. Most of the latest operating systems support PCIe-NVMe SSDs.
Low profile and Regular size PCIe bracket on board.
ProductModel:XIC PE44E
ProductName:PCIe x4 to E1.SNVMe SSDAdapter
Interface Type:1*E1.S (Genz 1C)Connectors
Support Equipment:1*E1.S NVMe SSD
Host Bus Type:PCIe x4
XIC PE44E
is an interface conversion card that converts PCIe x4 toGenz 1Cconnector for
connecting E1.S. It supports E1.S SSDs of various thicknesses.
Features:
Supports E1.SNVMe SSDs.
Supports E1.S SSDof various thicknesses.
Support PCIe x4 data linkwidth.
Compatiblewith PCIeGen4, andGen3 standards specification.
PHYSICALCHARACTERISTICS
ProductDimension
148mmx 68.9mm
ProductWeight
100g
PACKAGINGINFORMATION
Package size
180mmx 150mmx 30mm
ShippingWeight
150g
WHAT'SINTHEBOX
Included in Package
1 * PCIe x4 to E1.SNVMe SSDAdapter
4 *M.2 Fixed screw
