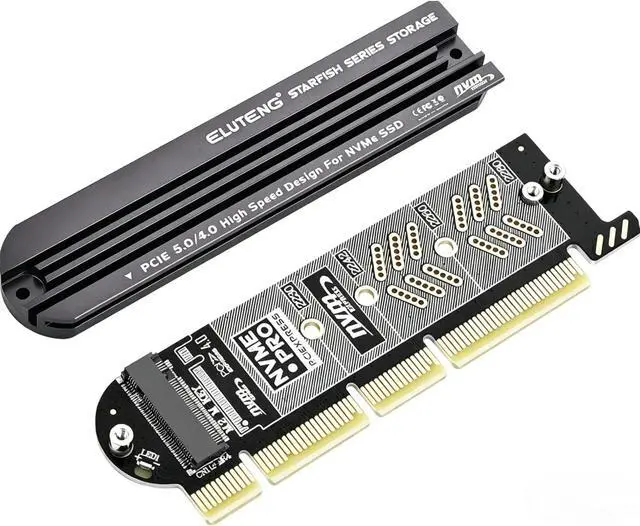

NVMe PCIe 5.0/4.0/3.0 Adapter NVMe M.2 SSD to PCIe X4/X8/X16 Card with Aluminum Heat Sink M.2 to PCI-Express SSD Expansion Card Support 2230 2242 2260 2280 Max 4TB for Windows/Linux/Mac os

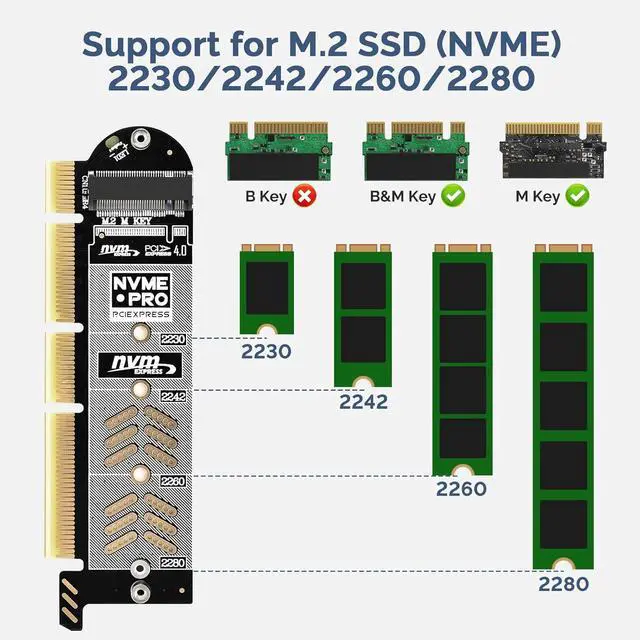

PCIE to M.2 adapterCompatible with 2230/2242/2260/2280 M.2 PCIE (NVMe) M-Key/B&M key SSDs. *Note: M.2 NGFF (SATA) is not supported; PCI-e protocol SSDs with NVME specification must be readable in WIN10. To boot as a system disk, the motherboard BIOS must support PCI-e booting.

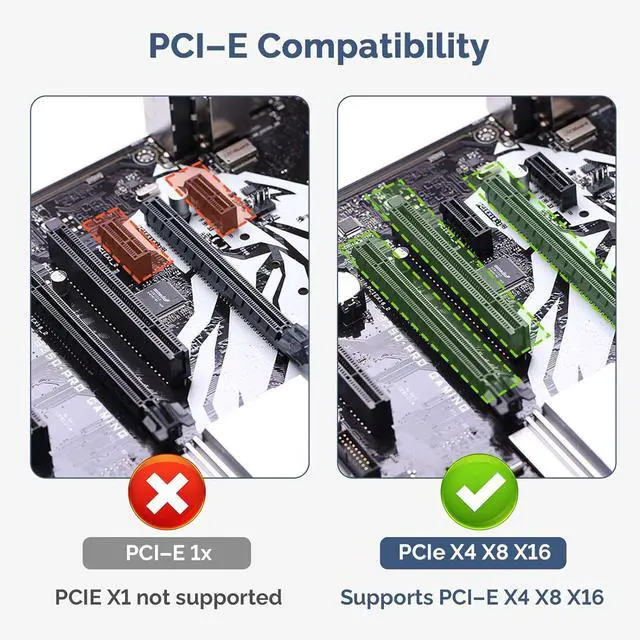

Support ListExpansion card support: PCIe 4X / 8X / 16X, M-Key/B&M-key PCIE to M.2 adapter. *Note: PCI-E 1x and PCI slots are not supported; MSATA and B-KEY interfaces are not supported.
High-speed TransferThe adapter uses the NVMe protocol and PCI-E lanes, the maximum read speed reaches 32 Gbp/s (theoretical speed). This greatly reduces the transfer time for large files. *Note: The actual transfer speed depends on the device interface and working environment.
Safe and StableSolid-state capacitors are used for voltage regulation, which prevents current waves from being generated in the event of SSD damage. It can operate stably under high and low temperature conditions to protect the hard disk. PCIE to M.2 adapter size: 140*35mm (L*W), compatible with Windows 7/10/11 system, no driver is needed for win8 and above system, driver is needed for SSD in win7 and below system.

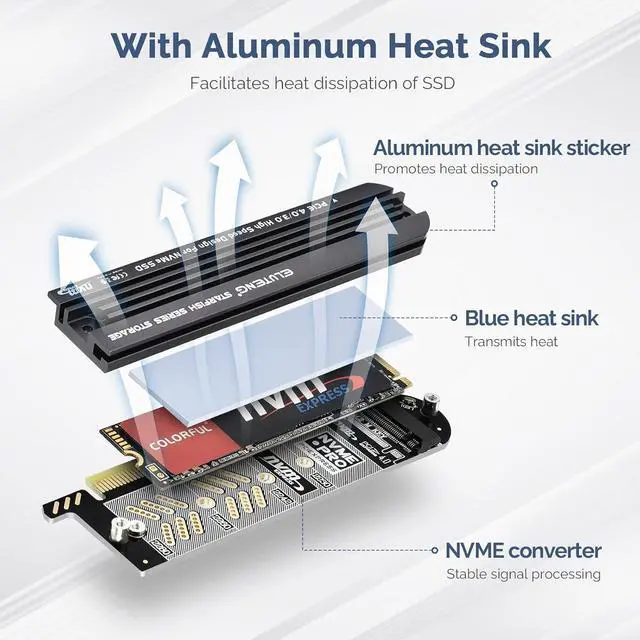

Effective Heat DissipationAluminum heatsink design reduces the temperature generated by the SSD during operation, thus stabilizing the performance of the SSD. This not only stabilizes the performance of the SSD, but also extends the life of the drive.

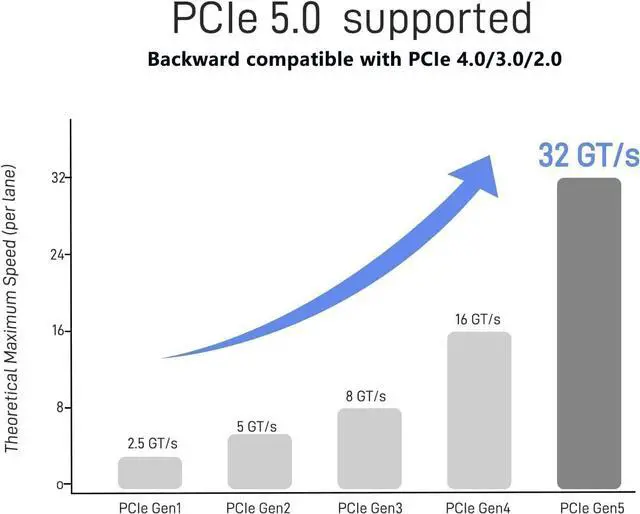

PCIe 5.0 Ultra-Fast Transfer SpeedsThis adapter supports the latest PCIe 5.0 SSDs and is backward compatible with PCIe 4.0 and 3.0. It is plug-and-play and requires no driver installation. Note: Some adapters have 'PCIe 4.0/3.0' printed on the heatsink, but there is no difference in actual performance or compatibility, so please use them with confidence.
