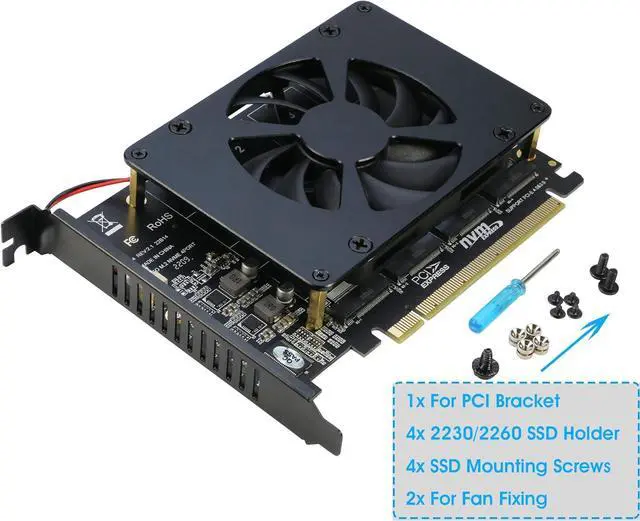

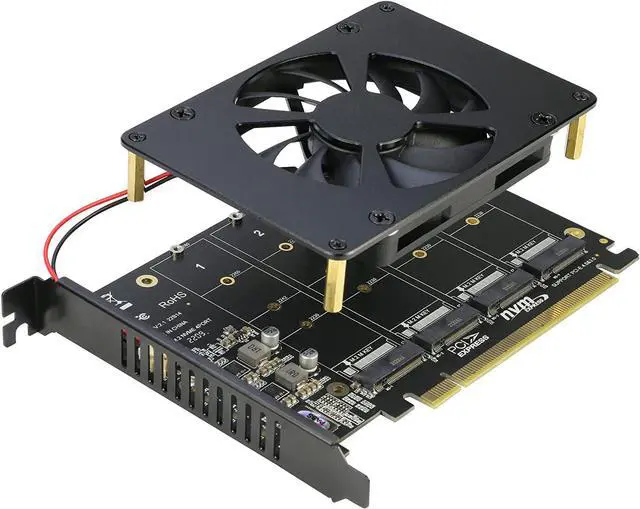

Quad NVMe PCIe Adapter, 4 Ports M.2 NVMe SSD to PCI-e 4.0/3.0 x16 Card with Fan Support 2280/2260/2242/2230 NVMe SSD (PCI-e Bifurcation Required)

Quad NVMe PCIe Adapter allows you add 4x NVMe SSDs simultaneously via 1x PCI-e 4.0 or 3.0 x16 Slot on MOBO which supports PCI-e PCIe x16 Bifurcation. Full-speed transmission up to 4x 32Gbps

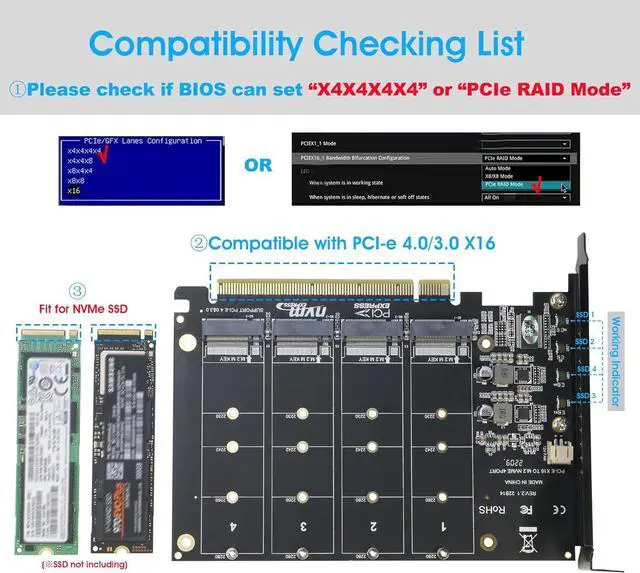

Hardware requirement: 1. There is available PCI-e 4.0 or 3.0 x16 Slot on Mobo 2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x4x4x4x4" in BIOS 3. All of the SSDs are M.2 (M Key) NVMe SSD 4. CPU has enough channels to support

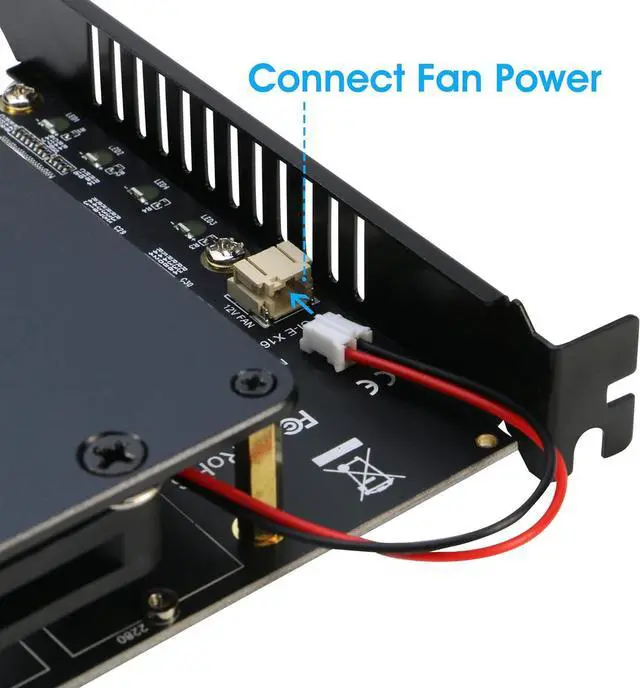

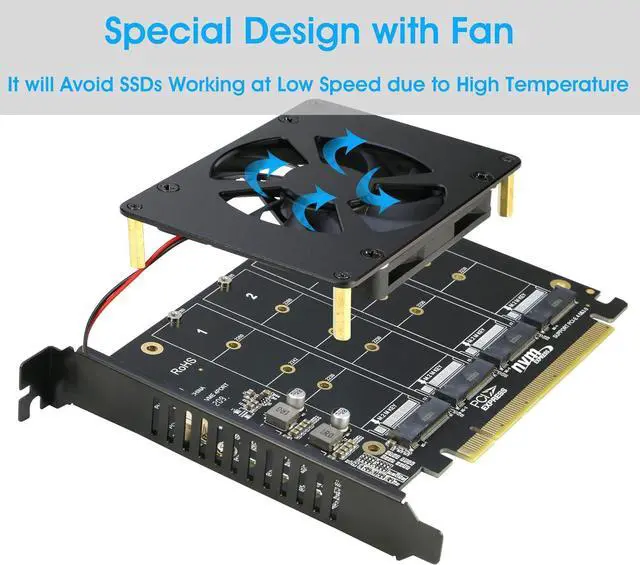

Designed with Fan, it will avoid SSDs working at low speed due to high Temperature; and individual LED Indicator will show each SSD's Working Status
Compatible with M.2 PCI-e NVMe SSDs: 80x22mm, 60x22mm and 42x22mm, 30x22mm; Not support any M.2 (SATA-Based B+M Key) SSD; Motherboard Compatibility: Most Server and X299, X399 can support PCIe x16 Bifurcation
Please note: 4x NVMe PCIe Adapter does not Support Hardware Raid, only supports the formation of soft raid in Win10 , or you may build raid via Third-party Software, and 4 SSDs should be same model 2. The motherboard need support "PCIEX16 Bifurcation", Otherwise, only one M.2 SSD can be recognized. Please check Motherboard's user manual on its official website if you are not sure the Mobo can support
