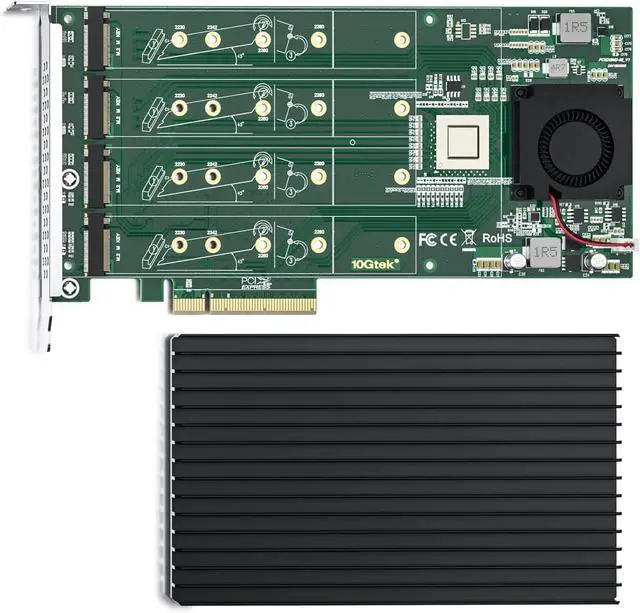

Main image of PCIe 3.0 X8 to Quad M.2 NVMe Adapter Card, Built-in PEX8724 Controller, Supports Non-Bifurcation Motherboards, 4-Port M.2 SSD for 2230/2242/2260/2280/22110mm, Only Includes Full-Height Bracket

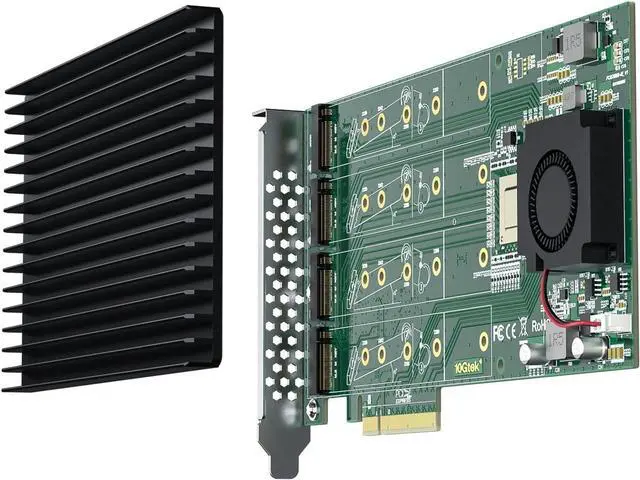

Alt view image 2 of 3 - PCIe 3.0 X8 to Quad M.2 NVMe Adapter Card, Built-in PEX8724 Controller, Supports Non-Bifurcation Motherboards, 4-Port M.2 SSD for 2230/2242/2260/2280/22110mm, Only Includes Full-Height Bracket

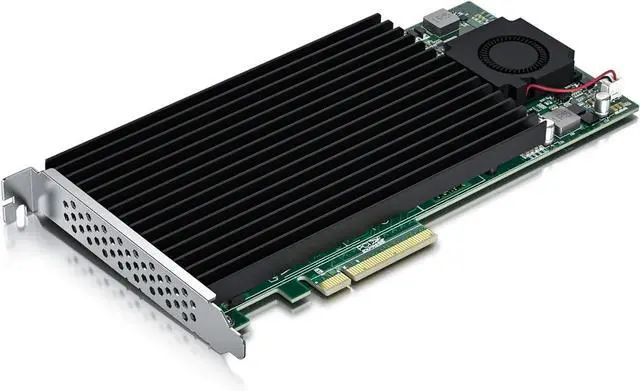

Alt view image 3 of 3 - PCIe 3.0 X8 to Quad M.2 NVMe Adapter Card, Built-in PEX8724 Controller, Supports Non-Bifurcation Motherboards, 4-Port M.2 SSD for 2230/2242/2260/2280/22110mm, Only Includes Full-Height Bracket

Shop All ZFBASCENTGO Products | Visit Connecting Technology Store

PCIe 3.0 X8 to Quad M.2 NVMe Adapter Card, Built-in PEX8724 Controller, Supports Non-Bifurcation Motherboards, 4-Port M.2 SSD for 2230/2242/2260/2280/22110mm, Only Includes Full-Height Bracket

4x PCIe 3.0 Turbo Mode: Drive 4x NVMe SSDs at full x8 bandwidth, ideal for 8K video rendering & AI datasets. No performance loss even on PCIe 2.0/1.0 motherboards.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

4x PCIe 3.0 Turbo Mode: Drive 4x NVMe SSDs at full x8 bandwidth, ideal for 8K video rendering & AI datasets. No performance loss even on PCIe 2.0/1.0 motherboards.
Bifurcation-Free Operation: No BIOS tweaking! Built-in PLX chip auto-detects drives, perfect for HEDT/legamotherboards.
22110+ Extended Compatibility: Supports 22110/2280/2260/2242/2230 M.2 (M-Key) & U.2 SSDs. PEX8724 PCIe switch chip enables RAID 0/1/5/10. Excludes SATA M.2.
Tool-Free Multi-Drive Setup: Mount 4 SSDs in 3 minutes with slide-lock design. Includes 22110 spacers. Note: Does NOT support hot-swapping; NOT INCLUDES LOW-PROFILE BRACKET.
Enterprise-Grade Thermal Control: Anodized aluminum heatsink + thermal pads + fan(The fan has been realigned) keep drives below 45°C during 24/7 operation.
