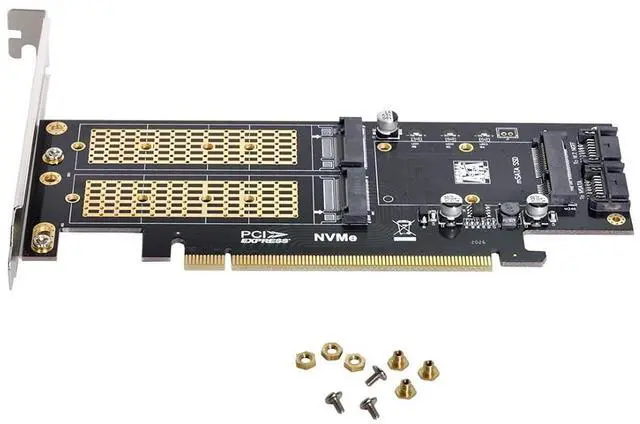

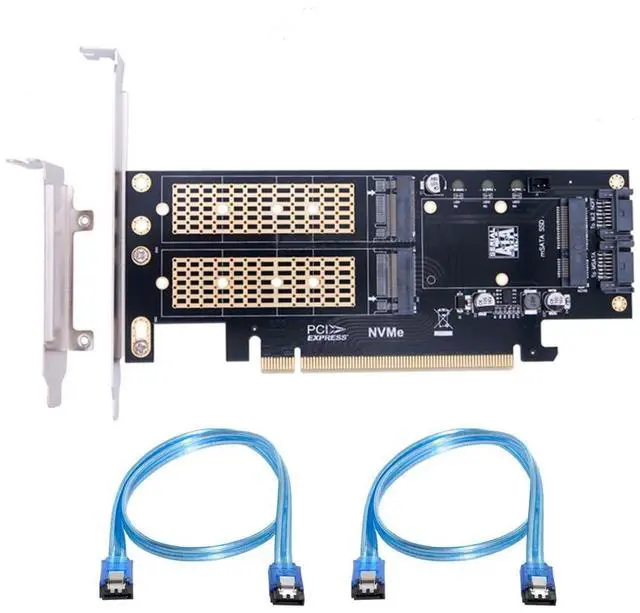

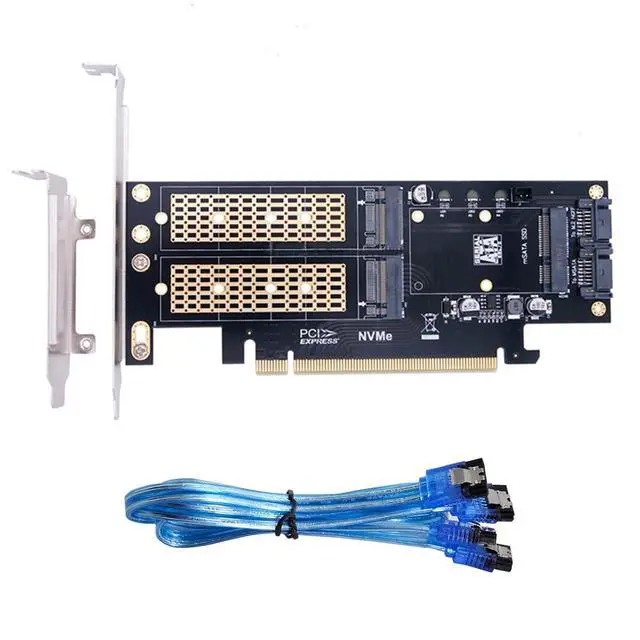

3 in 1 M.2 NVME/NGFF/mSATA SSD to PCIe 3.0/4.0 X16 Motherboard SSD Upgrade Expansion Card Adapter

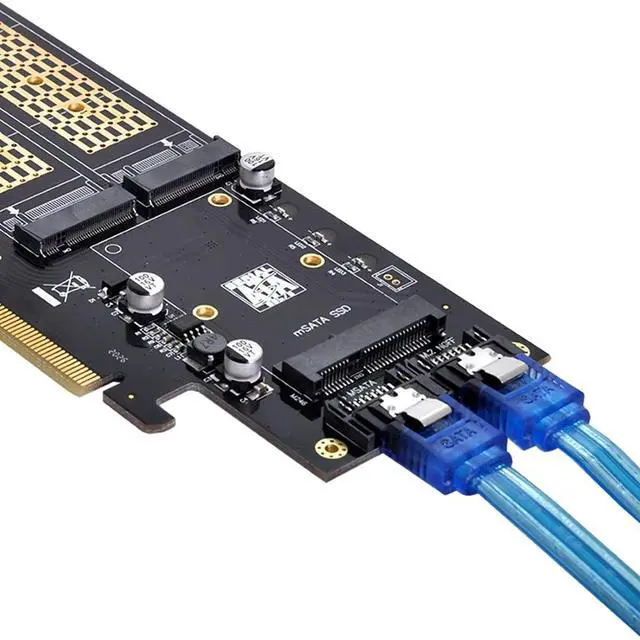

- 1) Note: M.2 SATA and mSATA SSDs (1 and 2 in the diagram) need to be connected to the motherboard via a SATA cable to transfer data; the PCI-E interface only provides power.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

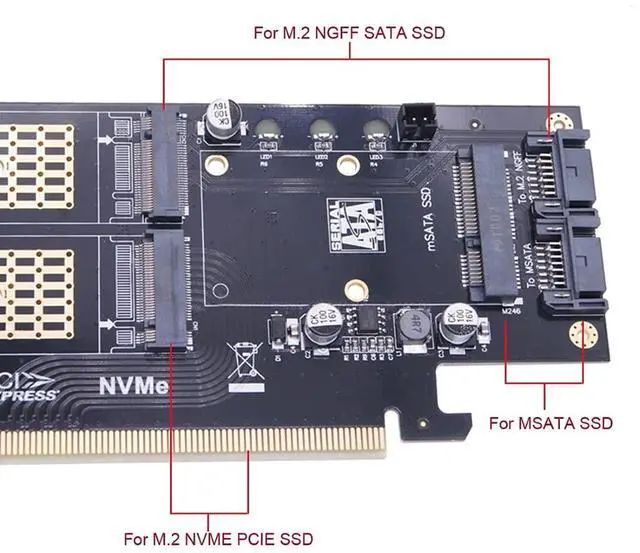

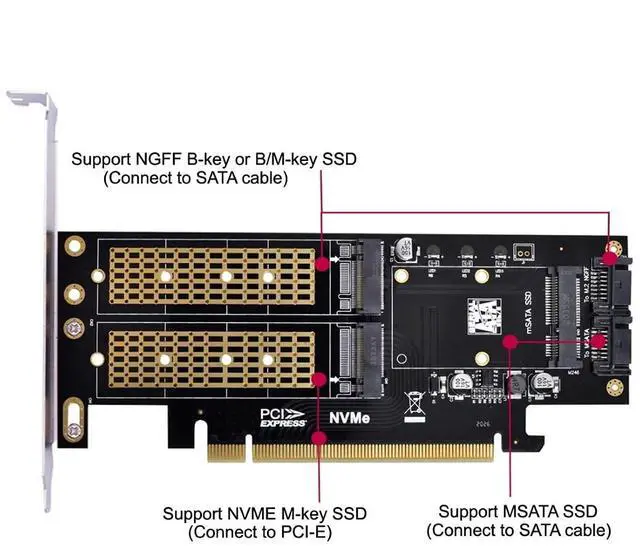

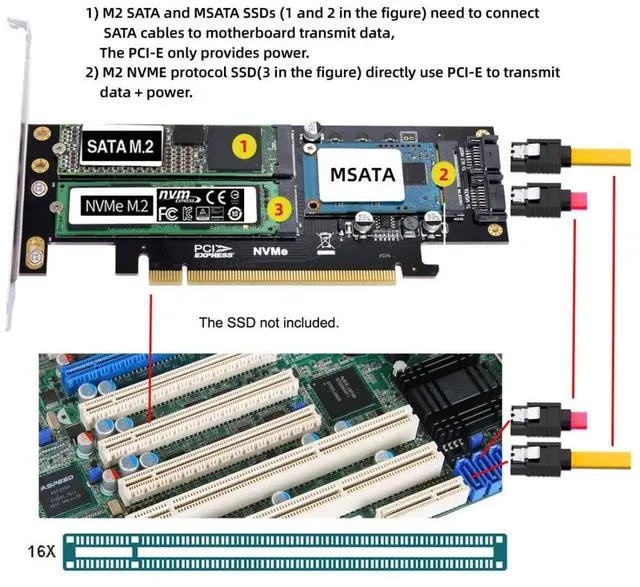

1) Note: M.2 SATA and mSATA SSDs (1 and 2 in the diagram) need to be connected to the motherboard via a SATA cable to transfer data; the PCI-E interface only provides power.
2) Note: M.2 NVMe protocol SSDs (3 in the diagram) directly use PCI-E for both data transfer and power supply.
3) The three SSD Can work at same time.Transfer to the operating system and does not require any software drivers.
4) The three solid-state drives are all powered by PCI-E interfaces, no additional power supply is required, and they support 2230/2242/2260/2280mm M.2 solid-state drives and 30/50mm mSATA solid-state drives.
5) System requirements: Motherboard: Z97 or higher; Operating system: Windows 10 or higher.
2) Note: M.2 NVMe protocol SSDs (3 in the diagram) directly use PCI-E for both data transfer and power supply.
3) The three SSD Can work at same time.Transfer to the operating system and does not require any software drivers.
4) The three solid-state drives are all powered by PCI-E interfaces, no additional power supply is required, and they support 2230/2242/2260/2280mm M.2 solid-state drives and 30/50mm mSATA solid-state drives.
5) System requirements: Motherboard: Z97 or higher; Operating system: Windows 10 or higher.
