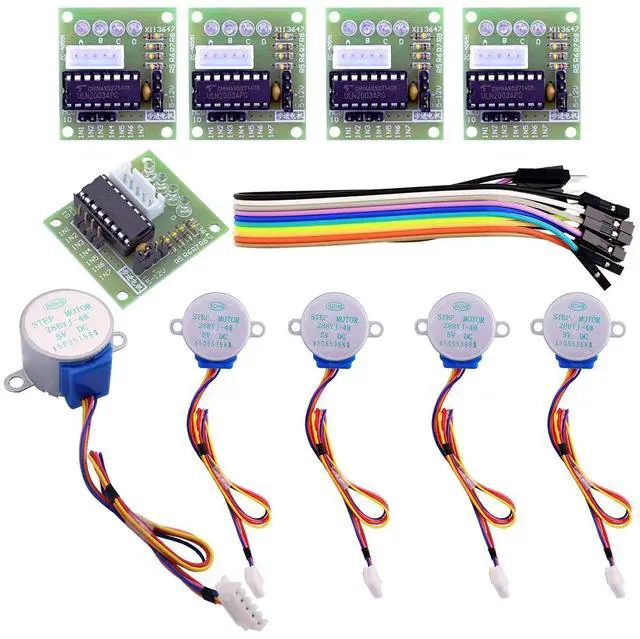

ELEGOO 5 Sets 28BYJ-48 ULN2003 5V Stepper Motor with ULN2003 Driver Board

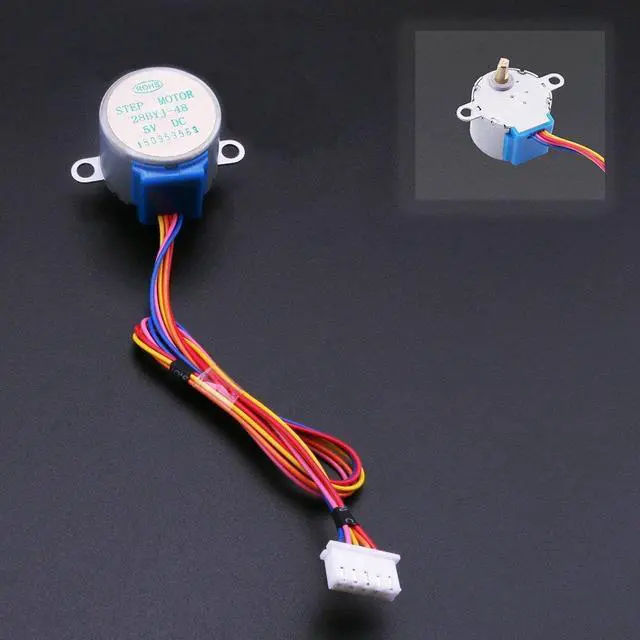

- Product description Established in 2011, ELEGOO is a thriving technology company dedicated to open-source hardware research & development, production and marketing. Our own Quality Management Team will secure the premium quality of our products and we would like to receive your valuable suggestions for our products and make your idea come true. BYJ48 STEPPER MOTOR Stepper Motor is a type of electromagnetic device which moves in discrete steps. This has several coils, the center shaft has a series of magnets mounted on it, and the coils surrounding the shaft are alternately given current or not, creating magnetic fields which repulse or attract the magnets on the shaft, causing the motor to rotate. This Unipolar Stepper Motor 28-BYJ48 is provided with five wires and four coils. The center connections of the coils are tied together and usually used as the power connection. They are named unipolar steppers because power always comes in on this one pole. Specification - A, B, C, D four-phase LED indicates the status of the stepper motor work. - Stepper motor with a standard interface, when used directly pluggable. - 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board, with convenient use, direct docking. - Rated Voltage: DC5V 4-phase - Insulation Resistance: >10M (500V) - Dielectric Strength: 600V AC / 1mA / 1s - Step angle: 5.625 x 1/64 - DC Resistance: 200±7% (25C) - Reduction ratio: 1/64 - Insulation Grade: A -
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

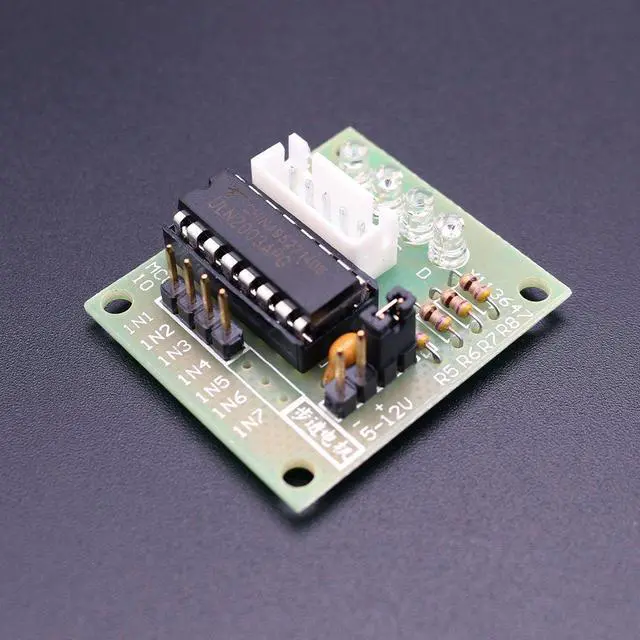

Stepper motor with a standard interface, when used directly pluggable.; A, B, C, D four-phase LED indicates the status of the stepper motor work.; 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase, support the development boardWith convenient use, direct docking; Drive Module Board
Size (in): 1.37 * 1.18 * 0.6; Stepper
Motor diameter: 1.06 (in); Stepper
Motor lines: 9.45 (in);

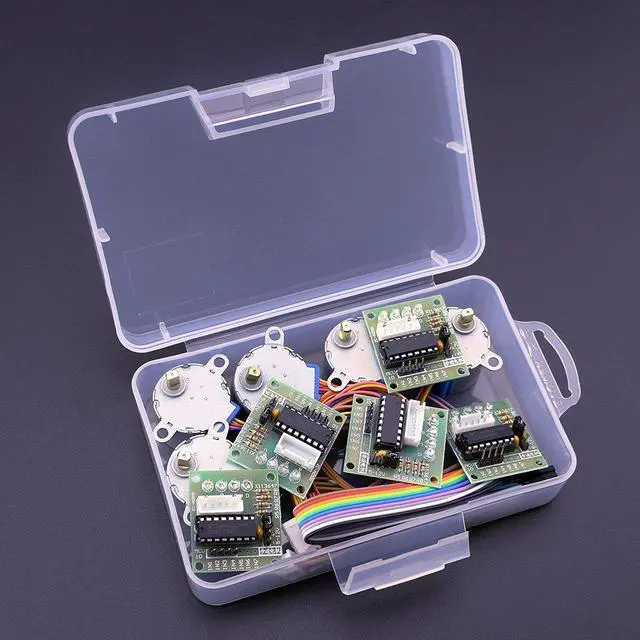

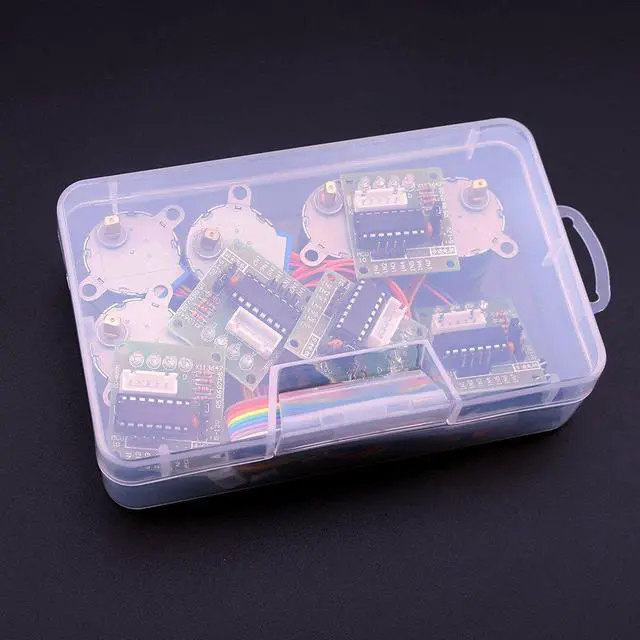

Great packing in a box: 5 set Uln2003 Stepper Motor + Driver Board (with a little gift)
Size (in): 1.37 * 1.18 * 0.6; Stepper
Motor diameter: 1.06 (in); Stepper
Motor lines: 9.45 (in);
Great packing in a box: 5 set Uln2003 Stepper Motor + Driver Board (with a little gift)
