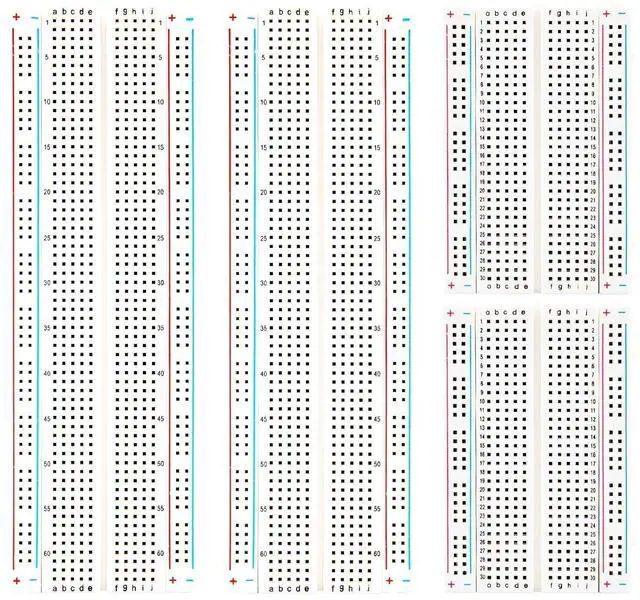

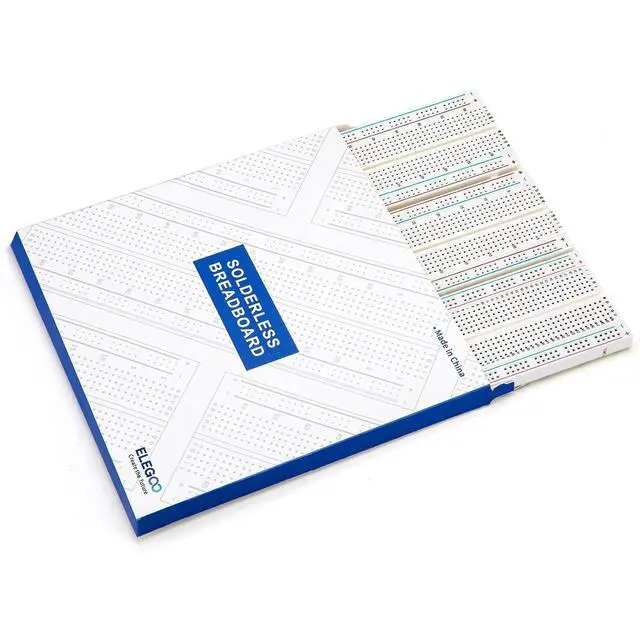

ELEGOO 4PC Solderless Breadboard Kit, 830 & 400 Tie Points Prototype Board
- Product description Product Specifications & Package List Board Material: White ABS plastic with black legend Internal Conductive Material: Steel Board Base: Self-Adhesive Tape 830 tie points total: 200 in 2 power rails, 630 in a 30 x 10 matrix 400 tie points total: 300 tie-point IC-circuit area plus four 25 tie-point power rails Socket Pitch: 2.54mm / 0.1" Contact Type: Double leaf copper spring Extension Clips: Yes (Can extend with other boards) Package List: 830 tie-points breadboard*2; 400 tie-points breadboard*2 Convenient and Easy-to-use: Solderless breadboard is convenient for the prototypes and circuit design experiment and other DIY projects. Each row and columns has corresponding letters and numbers Self-adhesive back tape makes it easy to stick on a platform, like the prototype shield With tight plug-in contacts, the components will sit well after assembly therefore there is no wobble. Jumper wires are easy to insert into or remove from these breadboards. With extension clips for simple and quick connecting with other boards. Thoughtful Product Features: Perfect for Shield Prototyping and Testing, can be applied in debugging without welding. Fit for 21-26 AWG (0.4-0.7MM) wire. Comparing with breadboards of high AWG wire, Elegoo breadboards is of higher physical strength and lower resistance. The solderless breadboards do not require soldering, therefore they are completely re-usable. This makes it easy to use for creating temporary prototypes and experimenting wit
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
FOUR BOARDS, TWO USEFUL SIZES - Includes 2 full-size 830 tie-point boards and 2 medium 400 tie-point boards, providing 2, 460 total connection points for parallel experiments, classroom work, repairs, and reusable circuit prototypes; jumper wires and electronic components are not included; CLEAR, ORGANIZED LAYOUT - Standard 2.54 mm ( 0.1 in) socket pitch, high-contrast row and column legends, red/blue polarity markings, and dedicated power rails help reduce wiring mistakes and make circuit diagrams easier to follow; BUILT FOR REPEATED PROTOTYPING - Double-leaf spring contacts accept 21-26 AWG ( 0.4 - 0.7 mm) leads and help hold compatible jumpers and component pins in place; the solder-free design lets you revise, test, and reuse circuit layouts; MOUNT OR EXPAND YOUR WORKSPACE - Peel-off adhesive backing helps secure each board to a smooth, clean project surface, while side extension clips connect multiple boards into wider layouts; join boards before removing the liners; FOR ELECTRONICS LEARNING AND TESTING - Use with resistors, LEDs, capacitors, transistors, DIP ICs, sensors, and microcontroller projects; straight, clean leads are recommended because oversized or bent pins can shorten contact life
