HOOCCC RAID Controller SATA Backplane Expansion Board 2/3/5 Bay NAS Hot-Swap Backplane SATA III 6Gbps Dual 4-Pin Power LED Indicators for 2.5"/3.5" Drives

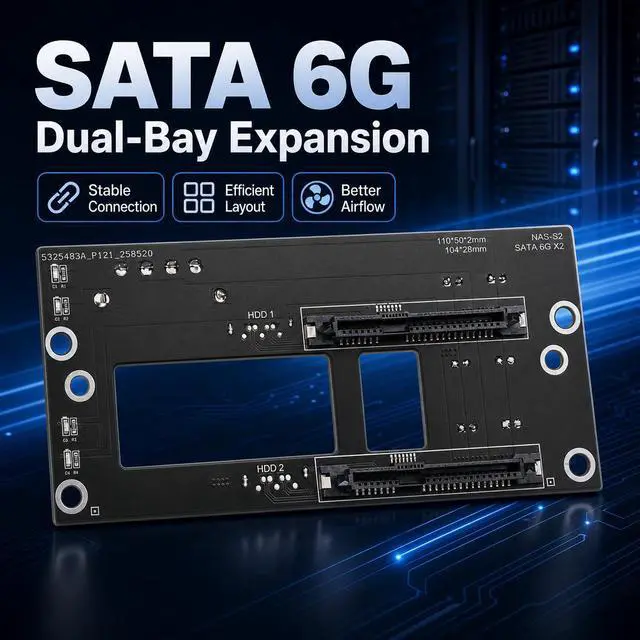

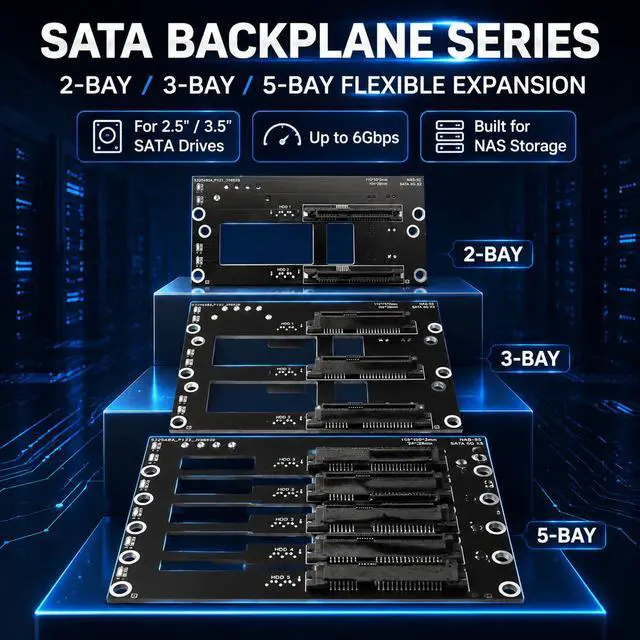

- Flexible 2/3/5-Bay SATA Expansion Choose the NAS-S2 (2-bay), NAS-S3 (3-bay), or NAS-S5 (5-bay) backplane to match your storage goals; supports both 2.5" SSDs and 3.5" HDDs for versatile NAS, DAS, or home server builds.
- SATA III 6Gbps High-Speed Transfer Each bay delivers full 6Gbps bandwidth with secure, direct-connect SATA headers to ensure reliable data flow, stable RAID performance, and minimal signal degradation.

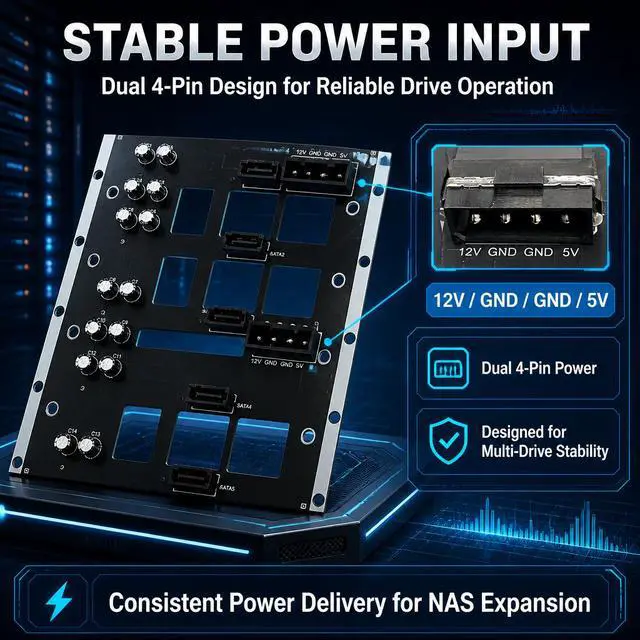

- Dual 4-Pin Power Inputs for Stable Operation Equipped with redundant 4-pin Molex connectors (12V/5V) to distribute consistent power across all drives, reducing voltage drop and protecting multi-drive arrays during heavy read/write workloads.

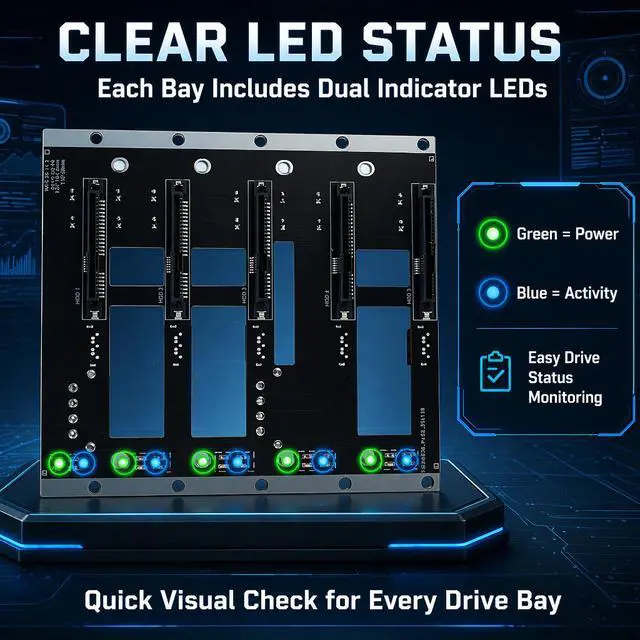

- Real-Time LED Status Monitoring Every drive bay features dual indicator LEDs (Green = Power, Blue = Activity) so you can instantly verify drive health, spin-up status, and active data transfer at a glance.

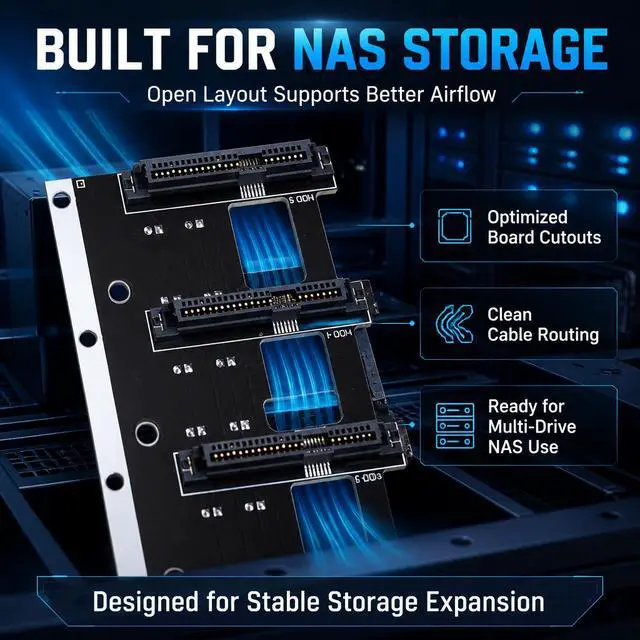

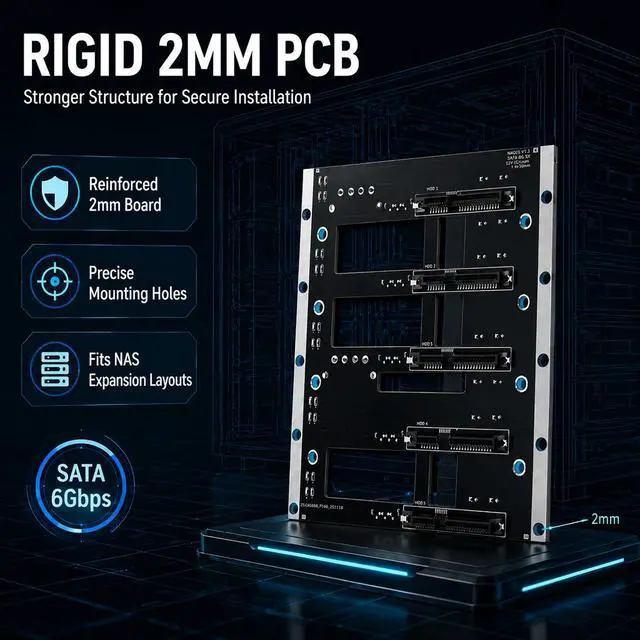

- Rigid 2mm PCB with Open-Air Design Built on a thick, reinforced 2mm circuit board with precise mounting holes and optimized cutouts to promote better airflow, reduce heat buildup, and ensure secure, long-term installation in custom chassis.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Build Your Ultimate Storage Solution with Confidence
Upgrade your DIY NAS, home server, or Direct Attached Storage (DAS) system with this professional-grade SATA Backplane Expansion Board. Designed specifically for PC enthusiasts and data hoarders, this backplane simplifies cable management while ensuring maximum reliability and performance. Whether you choose the compact 2-bay model for a mini-ITX build or the high-capacity 5-bay version for a full-tower server, this PCB provides the robust foundation your data deserves.
Engineered for Stability
Unlike cheaper alternatives on the market that utilize flimsy 1mm boards, our backplane is constructed on a thick 2mm rigid PCB. This extra thickness prevents flexing when inserting drives, reduces signal interference, and ensures the gold-plated SATA connectors maintain a solid connection over thousands of insertion cycles. The open-air layout promotes superior heat dissipation, keeping your mechanical drives cool under pressure.
Reliable Power Delivery
Multi-drive configurations often suffer from voltage drops. Weve solved this by integrating dual 4-pin Molex power inputs. This allows you to run separate power lines to the board, ensuring that even high-RPM enterprise drives receive clean, stable 12V and 5V power simultaneously. No more mysterious drive dropouts during intensive RAID rebuilds or large file transfers.
Instant Visual Feedback
Monitoring your array is effortless thanks to the integrated LED status indicators per bay. A steady green light confirms power connectivity, while the blue activity light flickers to show real-time read/write operations. This allows for immediate identification of failed drives or inactive ports without needing to access your OS software.
Compatibility & Specifications:

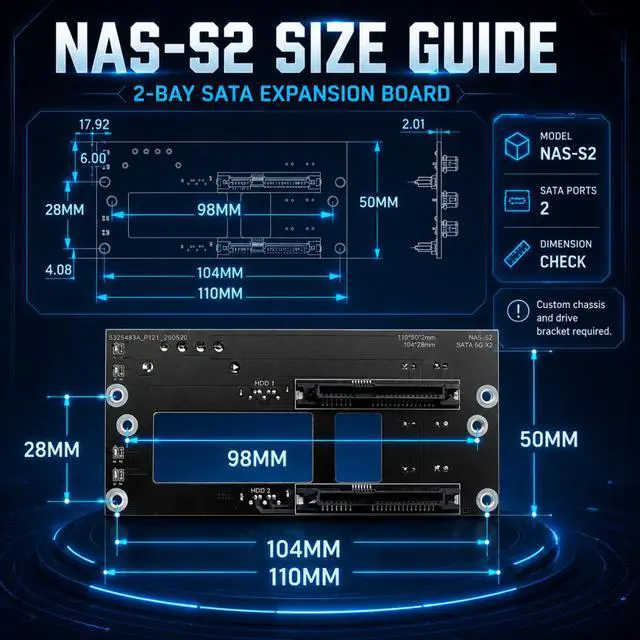

- Models Available: NAS-S2 (2-Bay), NAS-S3 (3-Bay), NAS-S5 (5-Bay)
- Interface: SATA III 6.0Gbps per port (Backward compatible with SATA II/I)
- Drive Support: 2.5" SSDs and 3.5" HDDs (SATA only)
- Power Input: Dual 4-Pin Molex (Standard PSU connector)
- Board Thickness: 2.0mm Reinforced FR4 PCB
- Status LEDs: Green (Power), Blue (Activity)
Package Includes:
1x SATA Backplane Board (Selected Model)
(Note: SATA Data Cables and Screws are not included. Please ensure your motherboard has enough available SATA ports before purchase.)
