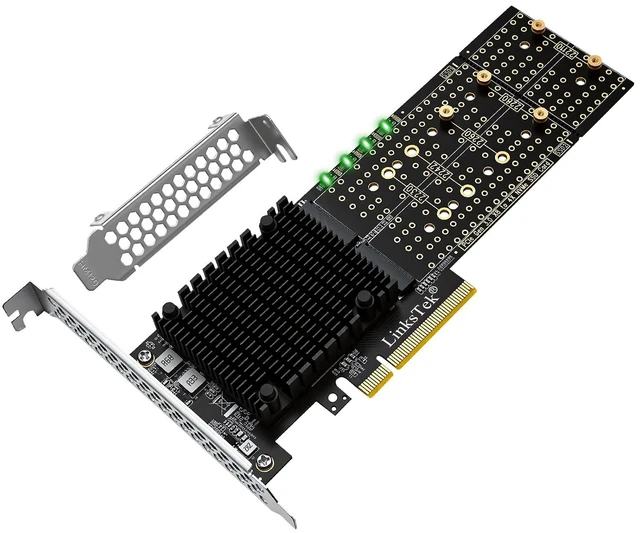

PCIE-PEX8747M8 PCIE 3.0 x8 Interface to 4-Port NVME M.2 SSD Expansion Card for Desktop PCs, Broadcom PLX PEX8747 PCIE Gen 3.0 Switch, 64Gb/s Bandwidth, On-Card PCIE Bifurcation, for Storage & Boot

1. This PCIE-PEX8747M8 is a PCIE Gen 3.0 x8 to 4-Port NVME M. 2 SSD expansion card that effectively expands 8x PCIE lanes from motherboard to 16X PCIE lanes by using 4x NVME M. 2 physical slots. It provides 64Gb/s total bandwidth for 4x 32Gb/s max NVME M. 2 SSDs on desktop PCs and NAS systems without requiring PCIE Bifurcation support, making it ideal for video editing, data storage, and gaming.;

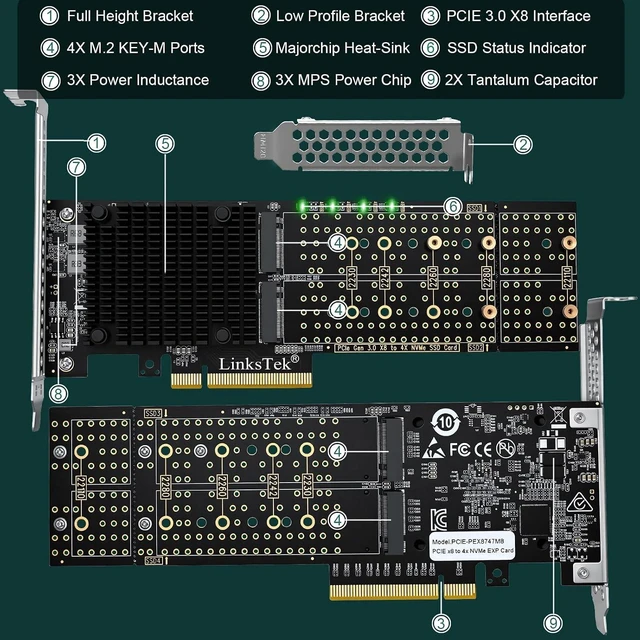

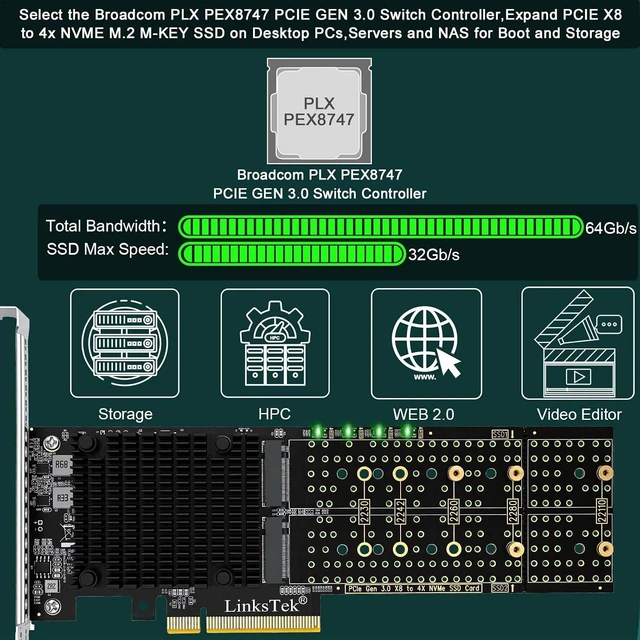

2. Active On-Card PCIE Bifurcation, Not Require Motherboard PCIE Bifurcation. The PCIE PEX8747M8 is built on the Broadcom PLX PEX8747 PCIE Gen 3.0 switch. It draws 8x PCIE lanes (64Gb/s) from motherboards, expands to 16 PCIE lanes, then assigns these lanes into 4x PCIE Gen 3.0 x4 links (32 Gb/s each) via 4x physical NVME M. 2 slots. This enables users to install and run 4x NVME M. 2 SSDs at full speed 32 Gb/s.;
3.

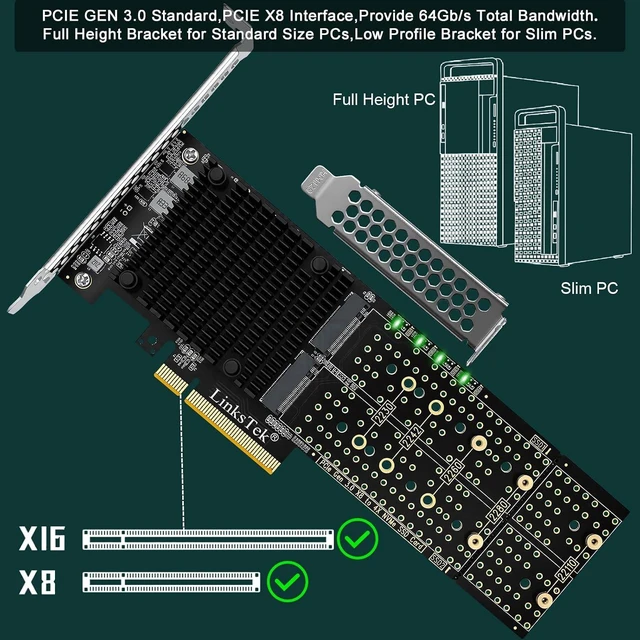

Host Interface: PCIE Gen 3.0 x8;
Device Slot: 4x NVME M. 2 Key-M slots;
PCIE Upstream: PCIE Gen 3.0 x8, 64 Gb/s;
PCIE Downstream: 4× PCIE x4 links, 32 Gb/s max per NVME M. 2 slot; M.

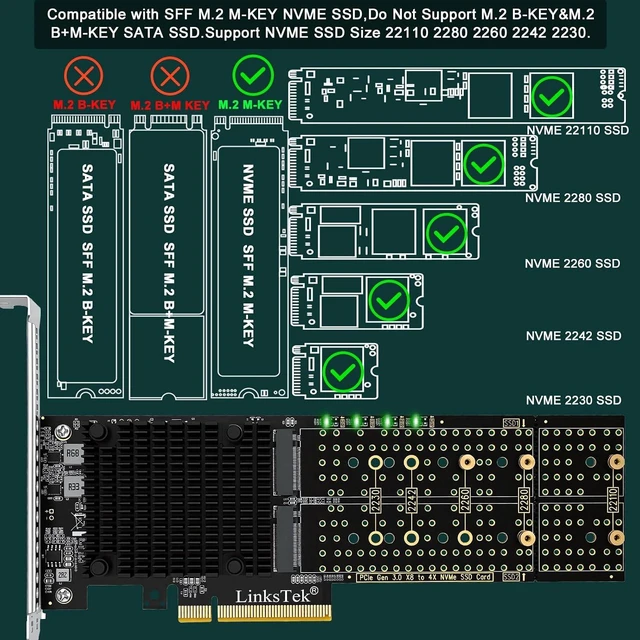

2 SSD Form Factors: 2230, 2242, 2260, 2280, 22110;
NVME Protocol: 1.3, 1.4, 2.0;
RAID Function: No hardware RAID, software RAID supported;
SSD Features: Supports data storage and UEFI (GPT) boot from NVME M. 2 SSDs.;
4.

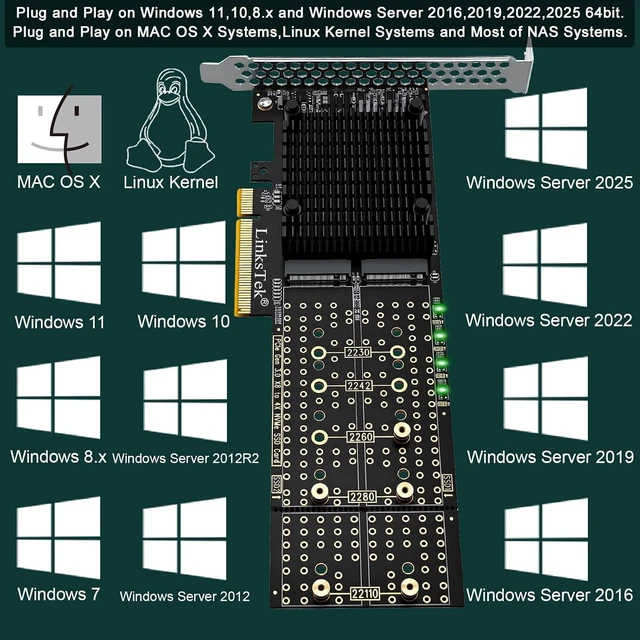

Plug-and-Play Compatibility:
Windows: Windows 7, 8. x, 10, 11 64bit and Windows Server 2025, 2022, 2019, 2016, 2012 R2, and 2012 64bit.
Virtualization: VMware ESXi, Proxmox VE, and other major hypervisors.
Linux: Ubuntu, RHEL, Debian, and other kernel-based distributions.

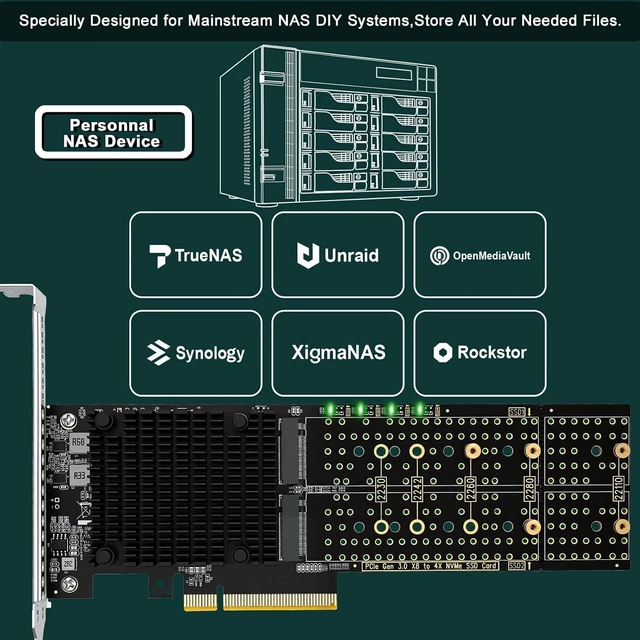

NAS: True NAS,
