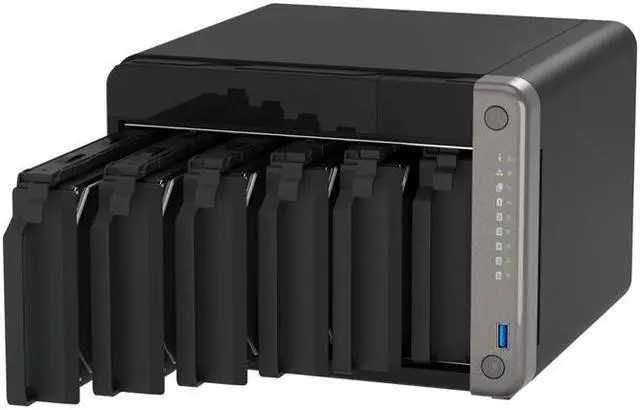

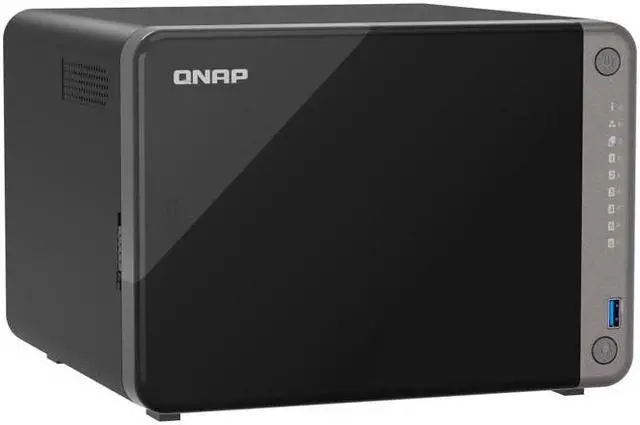

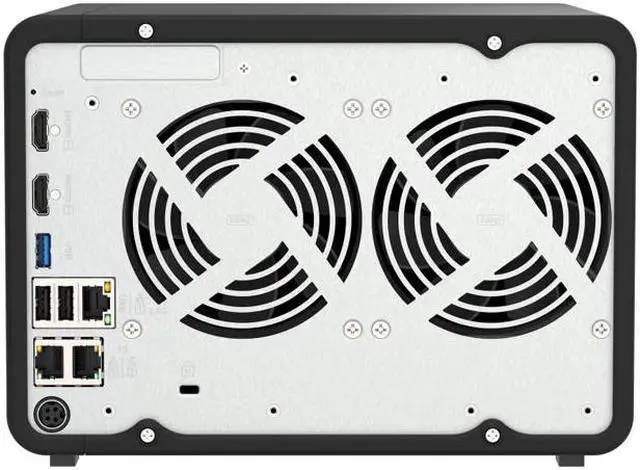

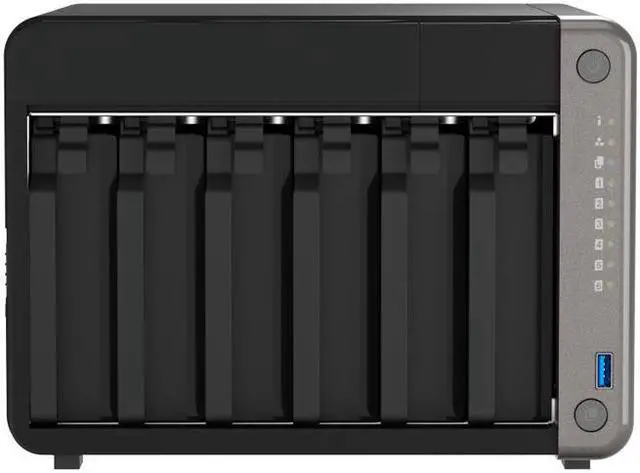

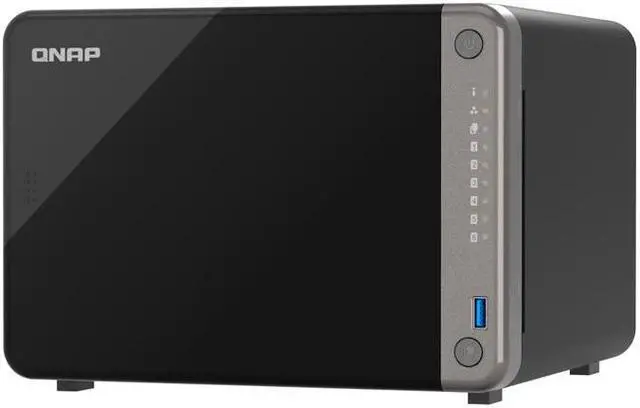

QNAP TS-AI642-8G 6-bay private cloud server host AI NAS special machine network storage hard disk server
- #Please refer to the official website for detailed specifications#
- #The product is shipped from Taiwan, the plug is Taiwan plug, please prepare the adapter yourself#
- The new generation of TS-AI642 AI NAS designed for AI image recognition applications is equipped with 64-bit ARM Cortex-A76 and Cortex-A55 SoC eight-core processors, and a built-in neural computing unit (NPU) with a computing performance of 6 TOPS. Intelligent analysis of image processing can be completed, and the CPU burden can be reduced during AI calculation, making the system operate with lower power consumption and higher efficiency. TS-AI642 is equipped with powerful computing performance, storage space and I/O expansion flexibility, allowing enterprise users to easily deploy smart NAS storage solutions for security surveillance, image recognition and face recognition applications with a lean budget.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
CPU 8-core ARM Cortex 64-bit Processor ( 4-core Cortex-A76 2.2 GHz + 4-core Cortex-A55 1.8 GHz )
CPU Architecture 64-bit ARM
Graphics processor ARM Mali-G610 MC4
Floating point operations Yes
Encryption Engine Yes
Hardware accelerated transcoding Yes
Neural Processing Unit
(NPU)
Yes
System memory 8 GB built-in (not expandable)
Maximum memory 8 GB
Flash memory 4 GB (dual boot OS protection)
Number of hard disk slots 6 3.5 -inch SATA 6Gb/s
Supported HDD Type 3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Hot Plug Support Yes
SSD cache acceleration support Yes
Gigabit Ethernet port (RJ45) 2
2.5 Gigabit Ethernet port
( 2.5G /1G/100M)
1 ( 2.5G /1G/100M/10M)
5 Gigabit Ethernet port
(5G/ 2.5G /1G/100M)
Optional interface card
10 Gigabit Ethernet port Optional interface card
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe slot 1
Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
Infrared (IR) receiver Yes (optional QNAP RM-IR004 remote control)
HDMI output 2, HDMI 1.4 b
Appearance Upright
LED Indicators Power/Status, Network, USB, HDD 1-6
Buttons Power, USB Copy, System Reset
Dimensions (H x W x D) 171 × 235 × 226 mm
Weight (net weight) 2.92 kg
Weight (gross) 4.51 kg
Operating Temperature 0 ~ 40C (32F ~ 104F)
Storage temperature -20 - 70 °C (-4°F - 158°F)
Relative humidity 5-95% RH (non-condensing),
wet bulb: 27C ( 80.6F )
Power Supply 120W Transformer, 100-240V
Power consumption: HDD hibernation mode 14.005 W
Power consumption: Operating mode, typical 33.33 W
Fan 2 x 90mm, 12VDC
CPU Architecture 64-bit ARM
Graphics processor ARM Mali-G610 MC4
Floating point operations Yes
Encryption Engine Yes
Hardware accelerated transcoding Yes
Neural Processing Unit
(NPU)
Yes
System memory 8 GB built-in (not expandable)
Maximum memory 8 GB
Flash memory 4 GB (dual boot OS protection)
Number of hard disk slots 6 3.5 -inch SATA 6Gb/s
Supported HDD Type 3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Hot Plug Support Yes
SSD cache acceleration support Yes
Gigabit Ethernet port (RJ45) 2
2.5 Gigabit Ethernet port
( 2.5G /1G/100M)
1 ( 2.5G /1G/100M/10M)
5 Gigabit Ethernet port
(5G/ 2.5G /1G/100M)
Optional interface card
10 Gigabit Ethernet port Optional interface card
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe slot 1
Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
Infrared (IR) receiver Yes (optional QNAP RM-IR004 remote control)
HDMI output 2, HDMI 1.4 b
Appearance Upright
LED Indicators Power/Status, Network, USB, HDD 1-6
Buttons Power, USB Copy, System Reset
Dimensions (H x W x D) 171 × 235 × 226 mm
Weight (net weight) 2.92 kg
Weight (gross) 4.51 kg
Operating Temperature 0 ~ 40C (32F ~ 104F)
Storage temperature -20 - 70 °C (-4°F - 158°F)
Relative humidity 5-95% RH (non-condensing),
wet bulb: 27C ( 80.6F )
Power Supply 120W Transformer, 100-240V
Power consumption: HDD hibernation mode 14.005 W
Power consumption: Operating mode, typical 33.33 W
Fan 2 x 90mm, 12VDC
