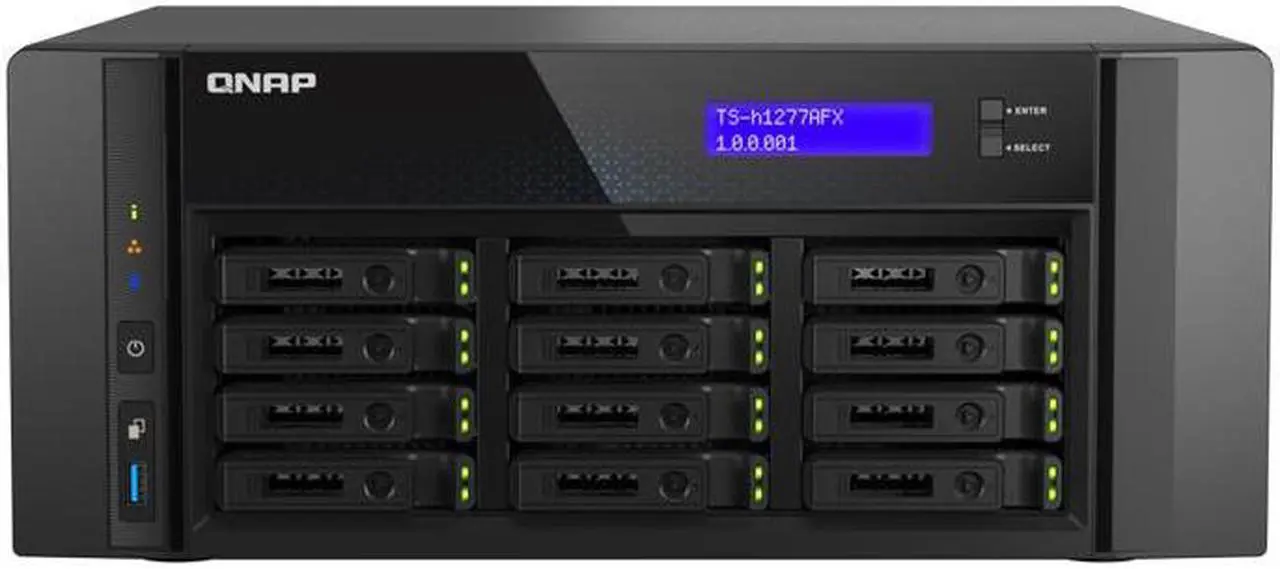

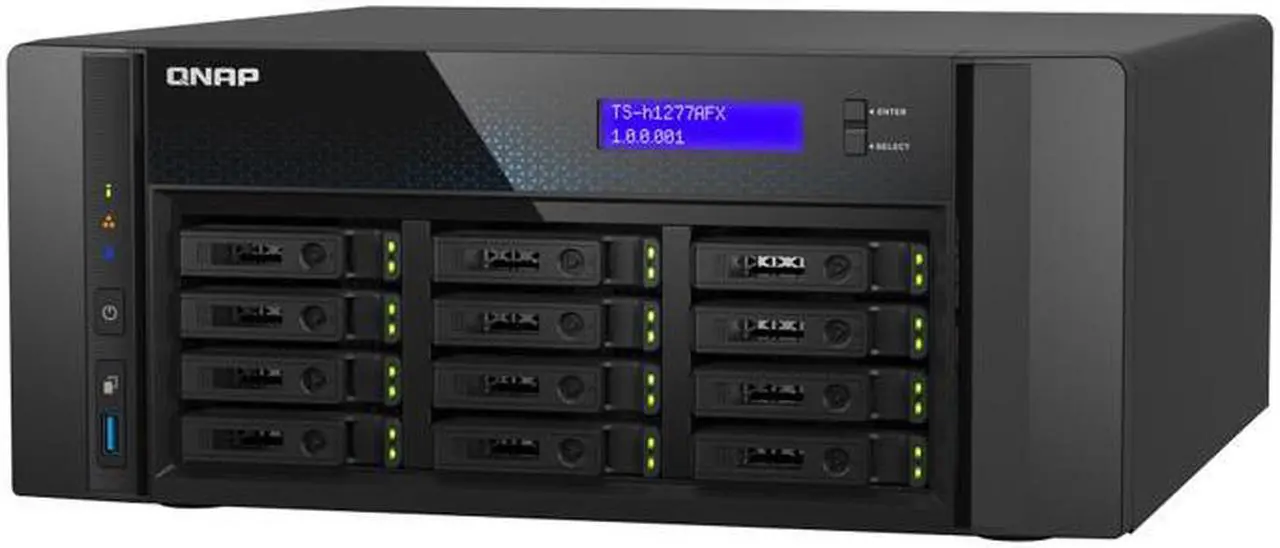

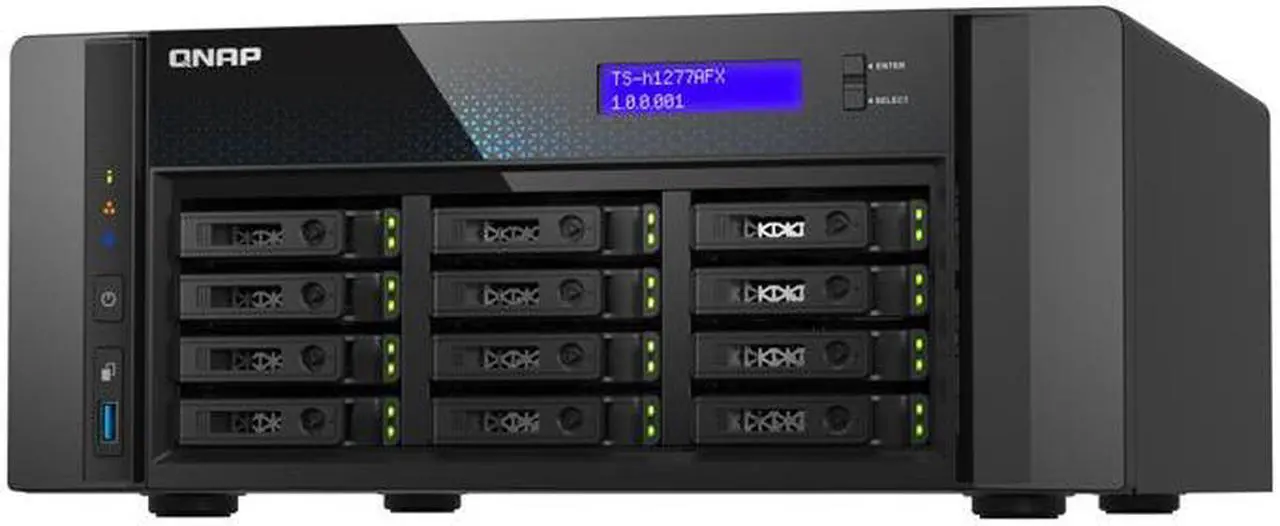

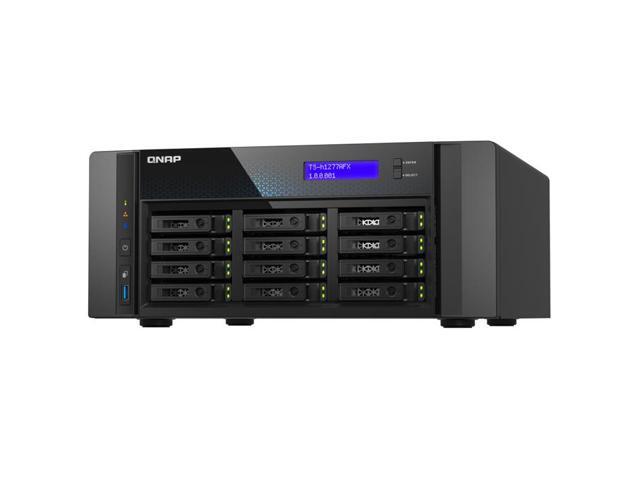

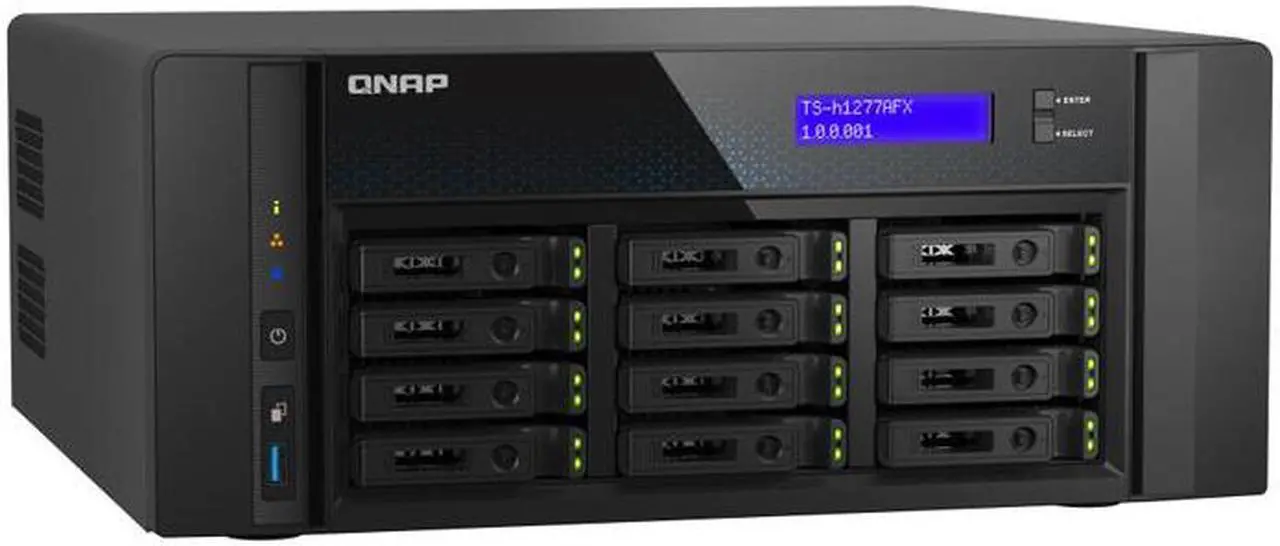

QNAP TS-h1277AFX-R7-32G 12-bay Desktop All-Flash NAS Network Server
- #Please refer to the official website for detailed specifications#
- #The product is shipped from Taiwan, the plug is Taiwan plug, please prepare the adapter yourself#
- AMD Ryzen 7 9000 series 8 cores/16 threads 3.8 GHz, 32 GB UDIMM DDR5 ECC (1 x 32 GB)
- Adopts industry-leading DDR5 ECC memory, supports 192 GB expansion, and can stably handle multi-tasking and high-density workloads.
- Built-in dual-port 2.5GbE and dual-port 10GbE; provides 3 PCIe Gen 4 slots for upgrading to 25GbE high-speed network, adding more M.2 SSDs, or cascading multiple storage expansion devices (JBOD) for multiple uses .
- Supports WORM (Write Once, Read Many) to protect data from being tampered with or deleted, ensuring data integrity and security.
- 3 x PCIe Gen 4 for flexible expansion.
- Dual 2.5GbE and dual 10GbE.
- Built-in high-performance AMD Radeon Graphics makes video editing/converting and multitasking smoother.
+
+
Overview
Specs
Reviews
CPU AMD Ryzen 7 9000 series 8 cores/16 threads 3.8 GHz, up to 5.5 GHz
CPU Architecture 64-bit x86
Graphics Processor AMD Radeon iGPU
Encryption EngineYes (AES-NI)
Hardware accelerated conversionYes
System memory 32 GB UDIMM DDR5 ECC (1 x 32 GB)
Maximum memory 192 GB (4 x 48GB)
Memory slots 4 x DDR5 UDIMM
Flash memory 4 GB (dual boot OS protection)
Hard Drive Slots 12 x 2.5" SATA 6Gb/s
System shipment does not include a solid state drive.
For a list of SSD compatibility, please
visit https: //www. qnap. com/compatibility/
Supported hard disk type 2.5 -inch SATA solid state drive
Hot-swap support Yes
M. 2 slot can be optionally connected via PCIe riser card
Compatible with NVMe SSDs above PCIe Gen
3. Please check the compatibility list
https: //www. qnap. com/compatibility/.
SSD cache acceleration support Yes
GPU passthroughYes
SR-IOV Yes
2.5 Gigabit Ethernet Port
( 2.5G /1G/100M)
2 ( 2.5G /1G/100M/10M)
10 Gigabit Ethernet Port 2 x 10GBASE-T
25 Gigabit Ethernet Port Optional PCIe Interface Card
Wake on LAN (WOL) Yes
Only supports 2.5G bE ports
Jumbo FrameYes
PCIe slot 3
Slot 1: Gen 4 x 8 or Gen 4 x 4*
Slot 2: Gen 4 x 4
Slot 3: Gen 4 x 8
*Slot 1 provides PCIe Gen 4 x 8 when slot 2 is not used; when slot 2 is used, slot 1 provides PCIe Gen
4 x 4.
USB 3.2 Gen 1 Port1
USB 3.2 Gen 2 (10Gbps)
Connection port
2 x USB 3.2 (1x Type-C with DPI, 1x Type-A) (10Gb/s)
HDMI output 1 x HDMI 1.4 b ( up to 3840 x 2160 @ 30Hz )
Upright appearance
LED indicators Power/Status, Network, USB, SSD 1-12
LCD Display/ButtonsYes
Push-button power, system reset, USB auto-backup
Dimensions (H x W x D) 157.2 × 368 × 362 mm
Dimensions do not include feet (feet may be up to 30mm / 1.18 inches depending on model)
Weight (net): 8 kg
Weight (total weight) 8.9 kg
Operating temperature 0 - 40°C (32°F - 104°F)
Storage temperature -20 - 70 °C (-4 °F - 158 °F)
Relative humidity 5-95% RH (non-condensing),
wet bulb: 27C ( 80.6F )
Power supply: 500W minimum, 100-240V
Fan 2 x 92mm, 12VDC
System warning buzzer
Kensington security slotYes
Standard Guarantee 5
Maximum number of simultaneous connections (CIFS)
Maximum memory
10000
CPU Architecture 64-bit x86
Graphics Processor AMD Radeon iGPU
Encryption EngineYes (AES-NI)
Hardware accelerated conversionYes
System memory 32 GB UDIMM DDR5 ECC (1 x 32 GB)
Maximum memory 192 GB (4 x 48GB)
Memory slots 4 x DDR5 UDIMM
Flash memory 4 GB (dual boot OS protection)
Hard Drive Slots 12 x 2.5" SATA 6Gb/s
System shipment does not include a solid state drive.
For a list of SSD compatibility, please
visit https: //www. qnap. com/compatibility/
Supported hard disk type 2.5 -inch SATA solid state drive
Hot-swap support Yes
M. 2 slot can be optionally connected via PCIe riser card
Compatible with NVMe SSDs above PCIe Gen
3. Please check the compatibility list
https: //www. qnap. com/compatibility/.
SSD cache acceleration support Yes
GPU passthroughYes
SR-IOV Yes
2.5 Gigabit Ethernet Port
( 2.5G /1G/100M)
2 ( 2.5G /1G/100M/10M)
10 Gigabit Ethernet Port 2 x 10GBASE-T
25 Gigabit Ethernet Port Optional PCIe Interface Card
Wake on LAN (WOL) Yes
Only supports 2.5G bE ports
Jumbo FrameYes
PCIe slot 3
Slot 1: Gen 4 x 8 or Gen 4 x 4*
Slot 2: Gen 4 x 4
Slot 3: Gen 4 x 8
*Slot 1 provides PCIe Gen 4 x 8 when slot 2 is not used; when slot 2 is used, slot 1 provides PCIe Gen
4 x 4.
USB 3.2 Gen 1 Port1
USB 3.2 Gen 2 (10Gbps)
Connection port
2 x USB 3.2 (1x Type-C with DPI, 1x Type-A) (10Gb/s)
HDMI output 1 x HDMI 1.4 b ( up to 3840 x 2160 @ 30Hz )
Upright appearance
LED indicators Power/Status, Network, USB, SSD 1-12
LCD Display/ButtonsYes
Push-button power, system reset, USB auto-backup
Dimensions (H x W x D) 157.2 × 368 × 362 mm
Dimensions do not include feet (feet may be up to 30mm / 1.18 inches depending on model)
Weight (net): 8 kg
Weight (total weight) 8.9 kg
Operating temperature 0 - 40°C (32°F - 104°F)
Storage temperature -20 - 70 °C (-4 °F - 158 °F)
Relative humidity 5-95% RH (non-condensing),
wet bulb: 27C ( 80.6F )
Power supply: 500W minimum, 100-240V
Fan 2 x 92mm, 12VDC
System warning buzzer
Kensington security slotYes
Standard Guarantee 5
Maximum number of simultaneous connections (CIFS)
Maximum memory
10000
