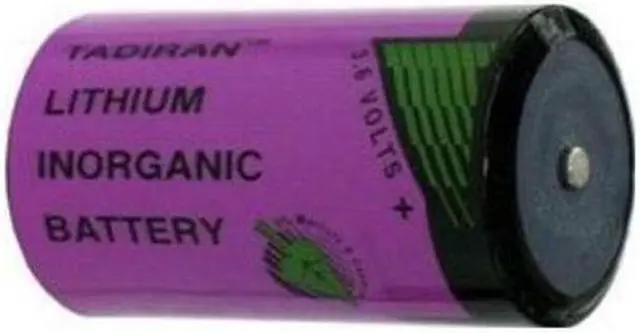

Tadiran TL-2300/S 3.6V D 16.5 Ah Lithium Battery (LSH20 / LS33600)

Voltage: 3.6 Volt
Capacity: 16.5 Ah
Size: D
Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
Brand: Tadiran
Termination Style: Button Top
Shelf Life: 10+ Years
Maximum Recomended Continuous Current: 250 mA
Maximum Pulse Current Capability: 500 mA
Diameter (max): 33 mm ( 1.3 in)
Height (max): 61.5 mm ( 2.4 in)
Typical Weight: 92.5 ( 3.26 oz)

High operating voltage, stable during most of the application lifetime
Some of the highest nominal capacities on the market today
Excellent reliability over extended operating life
Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)
Excellent resistance to humid environments
Low magnetic signature
Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
Less than 1% capacity loss during storage at ambient temperature before use

Compatible with
ER34615
ER34615H
ER34615C
ER34615M
ER32L615
Saft LSH20
Saft LS33600

This battery is not rechargeable. Do not try to recharge.
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Don't use different models of battery in series.
Soldering the tab should be finished in few seconds.
Do not use if the battery casing was mangled
