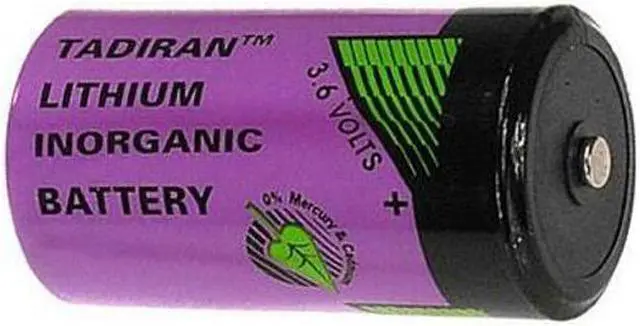

Tadiran TL-4920/S XOL Series 3.6V C 8.5 Ah Lithium Battery (ER26500 / LS26500)

Voltage: 3.6 Volt
Capacity: 8.5 Ah
Size: C
Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
Brand: Tadiran
Termination Style: Button Top
Shelf Life: 10+ Years
Maximum Recomended Continuous Current: 75 mA
Maximum Pulse Current Capability: 200 mA
Diameter (max): 26 mm ( 1.03 in)
Height (max): 50 mm ( 1.97 in)
Typical Weight: 49.5 g ( 1.75 oz)

High operating voltage, stable during most of the application lifetime
Some of the highest nominal capacities on the market today
Excellent reliability over extended operating life
Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)
Excellent resistance to humid environments
Low magnetic signature
Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
Less than 1% capacity loss during storage at ambient temperature before use

Compatible With
ER26500
LS26500
LS26500C
TL-5920
TL-2200
SB-C01
SB-C02
SL-770
XL-140F
XL-145F
PT-2200

This battery is not rechargeable. Do not try to recharge.
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Don't use different models of battery in series.
Soldering the tab should be finished in few seconds.
Do not use if the battery casing was mangled
