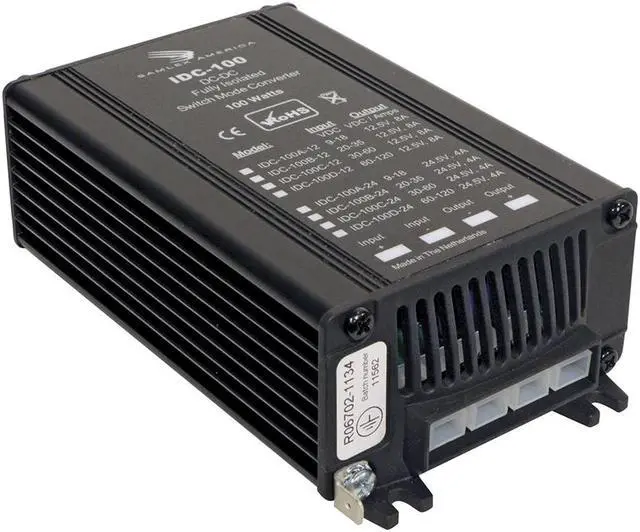

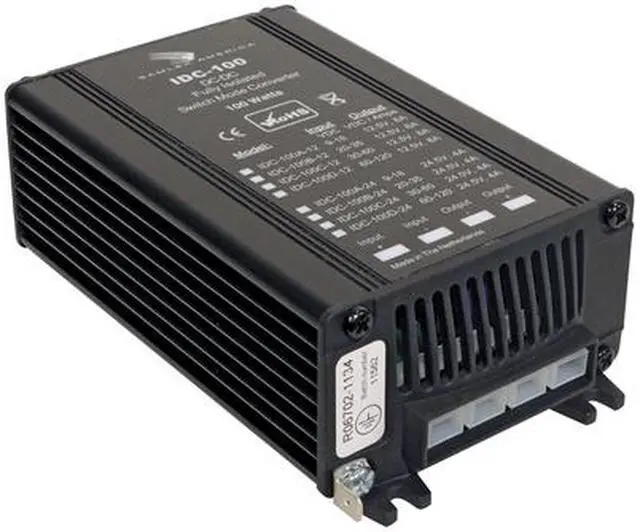

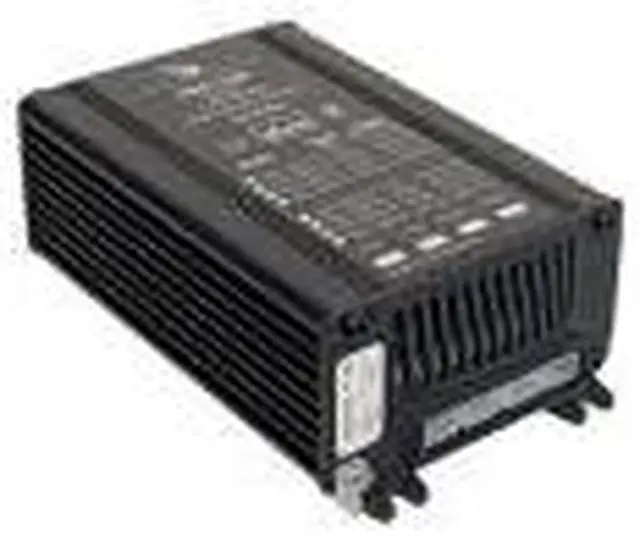

SAMLEX IDC-100A-12 SWITCHING DC-DC CONVERTER 9-18V INPUT

SAMLEX IDC-100A-12 SWITCHING DC-DC CONVERTER 9-18V INPUT100W Fully Isolated DC-DC Converter - 8A - 9-18V Input - 12.5V OutputIDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100A-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 8 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection.

The unit comes with 1/4 push-on flat blade quick disconnect connectors. IDC-100A-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
Features: Fully IsolatedShort Circuit ProtectedCurrent Limited2 Year WarrantySpecifications:
Input: 9.2 -18 VDC
Output: 12.5 VDC
Amps: 8
AmpsWeight: 1.2 (lbs)
Weight: 0.54 (kg)
Dimensions: 6 x 3.5 x 1.9 (in)
Dimensions: 15.2 x 8.9 x 4.8 (cm)
Safety:
CEWarranty: 2
Year LimitedApplications: Earth moving equipmentHeavy trucksBusesMarine vehiclesCB radios12
Volt lighting systemsAM/FM sound systemsWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings. ca. gov.
