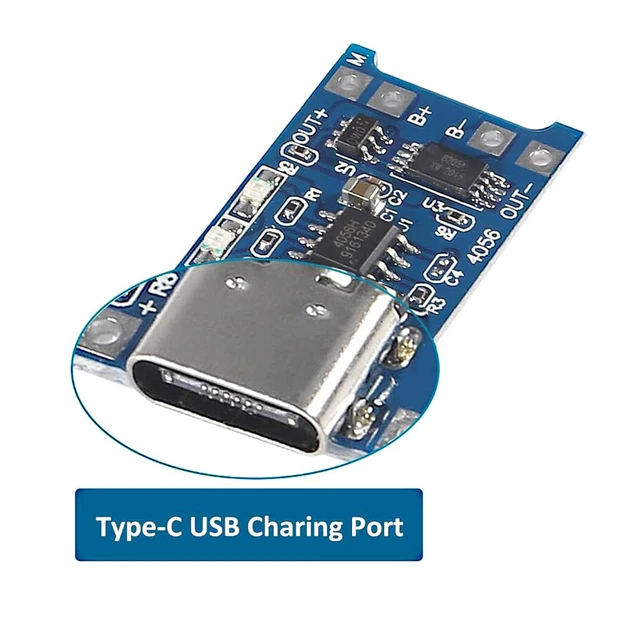

TP4056 Type-C USB 5V 1A 18650 Lithium Battery Charger Module: Input Interface: Type-C USB; Input Voltage: 4.35-6V (Recommended Voltage 5V)
Protection Function: Two-in-One Charging and Discharging Protection Function,vercharge Over Discharge and Over-current Protection; Battery Discharge Termination Voltage: 3.2V; Battery: Over-Current Protection Current 3A

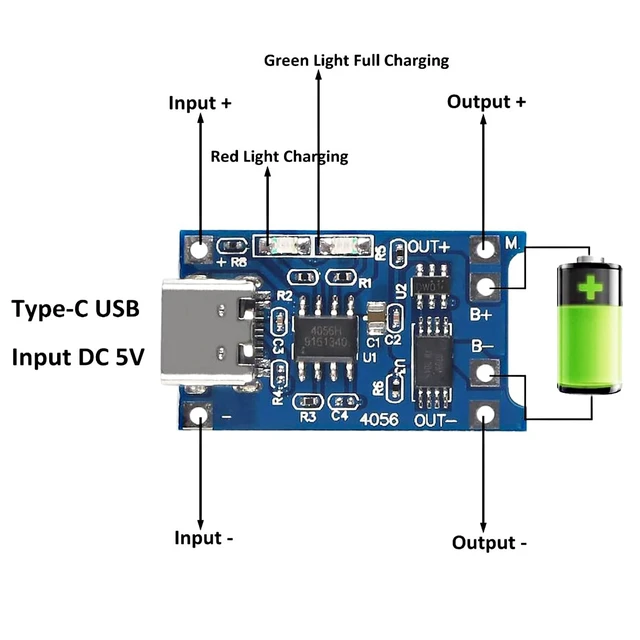

Light State: NO Load the Light NOT Bright, Red Light for Recharging,Green Light is FULL Charger and The Module Come With Solder Joints for Input Voltage Wiring,Which is Convenient for DIY
18650 Battery Holder: 18650 Battery Holder with Wires; Wire Length: 5.9"/15cm,Easy to Connect,Widly Used for Electronic Experiment,DIY Projects, PCB Circuit Projects, Family Appliances etc.
Application:This Module is Used for Single-Cell Lithium Battery or Multi-Cell Parallel Lithium Battery Charging, the Ammeter for Testing Current Can Only be Connected in Series to the 5V Input of the Charging Board
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
HOW TO USE:
1.There May Be NO Output Voltage When Connected with Battery At First Time,At this time, Please Try to Activate the Protection Circuit By Charger with 5V Voltage.
2. When Input with a Mobile Phone Charger, Please Make Sure that Output of the Charger Must Be 1A or Above.

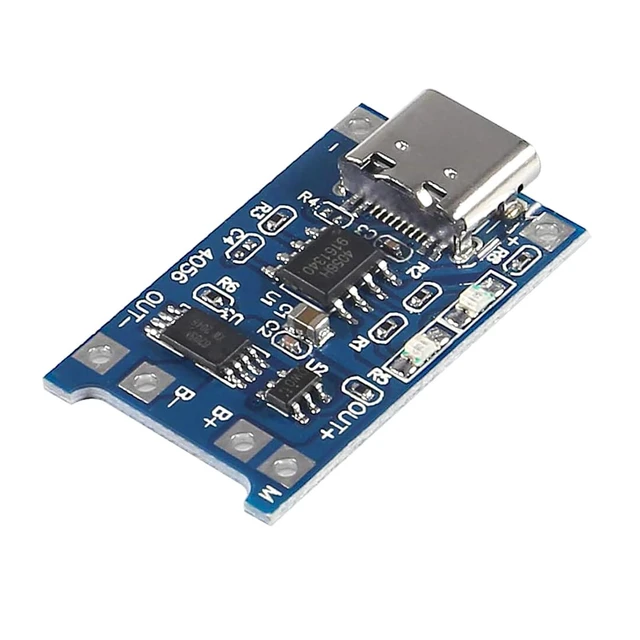

TP4056 Type-C Charger Module
Specificatins:
Input interface: Type-C USB
The input voltage: 4.35-6V (recommended voltage 5 v)
Charge cut-off voltage: 4.2 V + / - 1%
Maximum charging current output: 1000 ma
The battery overcharge protection voltage: 4.28 V
Battery overcharge lifting voltage: 4.00 V
The battery discharge protection voltage: 3.0 V
Battery Discharge Termination Voltage: 3.2V
Battery: Over-Current Protection Current 3A

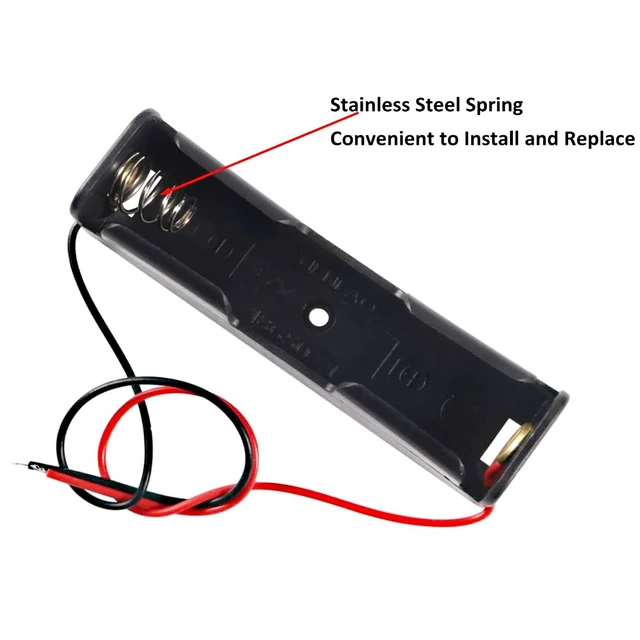

18650 Battery Holder
1-Slot Battery Holder Size: 75 * 20 * 18 mm
Material: ABS Plastic Shell

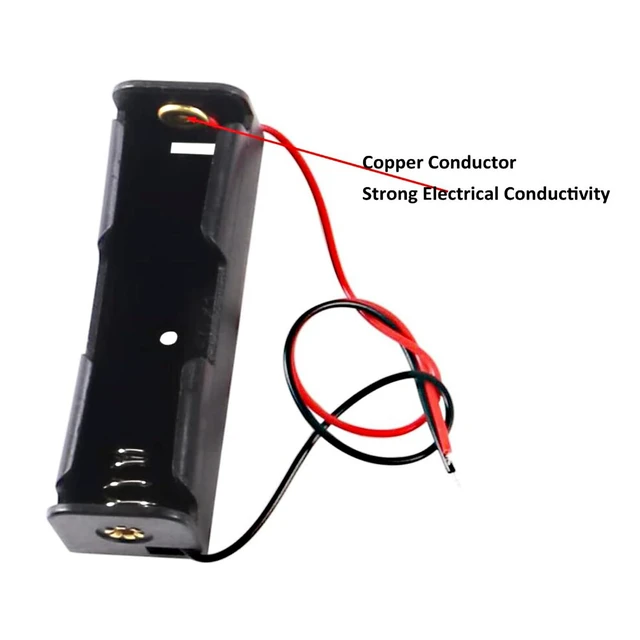

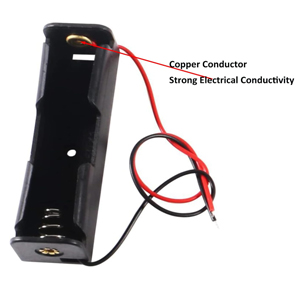

With Copper Conductor Contacts to Ensure Good Conductivity.
With Wires, used for DIY Connecting.
The Battery Holder has Compartments or Chambers for Holding Battery. It is easy to Conduct Electricity!
With Wires for Easily Connecting, Can be Directly Inserted into the Circuit Board for Soldering.
18650 Battery Holder Kit with Wires used for Electronic Experiment Projects, PCB Parallel or Series Circuit, also can be Directly Inserted into the Circuit Board for Soldering.
HOW TO USE:
1.There May Be NO Output Voltage When Connected with Battery At First Time,At this time, Please Try to Activate the Protection Circuit By Charger with 5V Voltage.
2. When Input with a Mobile Phone Charger, Please Make Sure that Output of the Charger Must Be 1A or Above.
TP4056 Type-C Charger Module
Specificatins:
Input interface: Type-C USB
The input voltage: 4.35-6V (recommended voltage 5 v)
Charge cut-off voltage: 4.2 V + / - 1%
Maximum charging current output: 1000 ma
The battery overcharge protection voltage: 4.28 V
Battery overcharge lifting voltage: 4.00 V
The battery discharge protection voltage: 3.0 V
Battery Discharge Termination Voltage: 3.2V
Battery: Over-Current Protection Current 3A
18650 Battery Holder
1-Slot Battery Holder Size: 75 * 20 * 18 mm
Material: ABS Plastic Shell
With Copper Conductor Contacts to Ensure Good Conductivity.
With Wires, used for DIY Connecting.
The Battery Holder has Compartments or Chambers for Holding Battery. It is easy to Conduct Electricity!
With Wires for Easily Connecting, Can be Directly Inserted into the Circuit Board for Soldering.
18650 Battery Holder Kit with Wires used for Electronic Experiment Projects, PCB Parallel or Series Circuit, also can be Directly Inserted into the Circuit Board for Soldering.

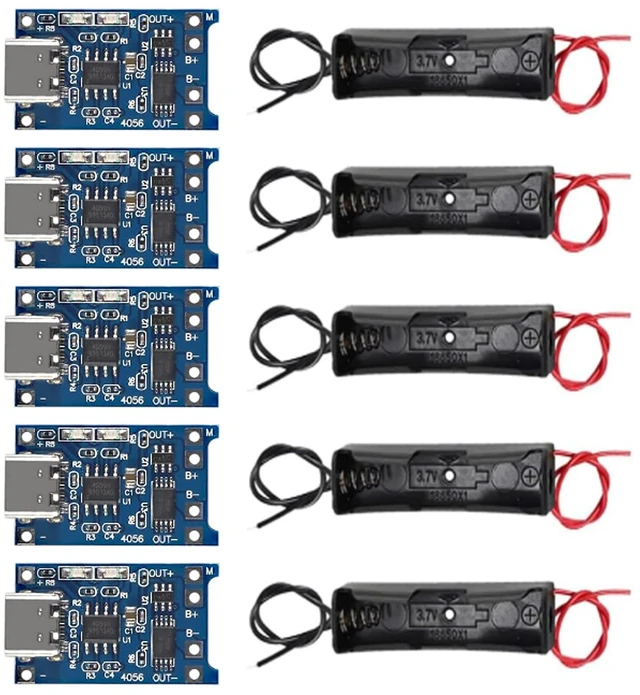

5pcs TP4056 Type-C USB 5V 1A 18650 Lithium Battery Charger Module with Dual Protection Function + 5pcs 18650 Battery Holder
Learn more about the Detailed Specifications
Model
Brand
AEDIKO
Details
Specifications
5 volts, 1 amps, 1.02 L x 0.67 W x 0.2 H inches, 0.05 kilograms, Type-C USB, 6, 3M
