PFCTART LiFePO4 Battery 12V 30Ah Lithium Iron Phosphate Deep Cycle BMS Home RV Camping US

Features

Automotive Grade Lithium Battery PFCTART lithium iron batteries have exceptional quality since they are manufactured by Automotive Grade LiFePO4 Cells with higher energy density, more stable performance & greater power. Highest-level safety based on UL Testing Certificate for the cell inside the battery. This makes li-iron batteries perfect for solar home, RV, campers, motor homes, off-grid applications.

10 Years lifetimePFCTART LiFePO4 battery provides 5000+ cycles, which is more than 10 times to Lead Acid with 300~600 cycles. PFCTART LiFePO4 battery has a 10-year service life, three times longer than the Lead Acids 3-year lifetime.

95%* Efficiency PFCTART LiFePO4 battery's flat discharge curve holds above 12.8V for up to 95%, of its capacity usage, providing astronomical boosts in run-time compared to only 50% in Lead Acid. This product is your best choice for outdoor camping power and indoor easy installation.

1/3* Lightweight PFCTART LiFePO4 Battery weighs only 8.81 lbs for one module, only 1/3* the weight of lead acid batteries, which makes it an easy choice for RVs, Marine and Off-Grid Applications when mounting or mobility is in the consideration.

100% Protection PFCTART LiFePO4 battery has built-in BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in high-temp cut off prevents charging over 167 °F (75 °C). Without memory effect, no matter what state the battery is, it can be used as soon as it is charged. PFCTART LiFePO4 battery is IP65 level waterproof, which set you free from worrying to install indoors or outdoors.

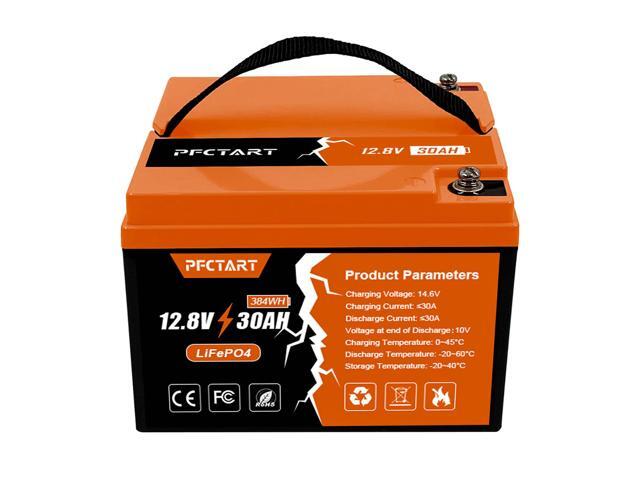

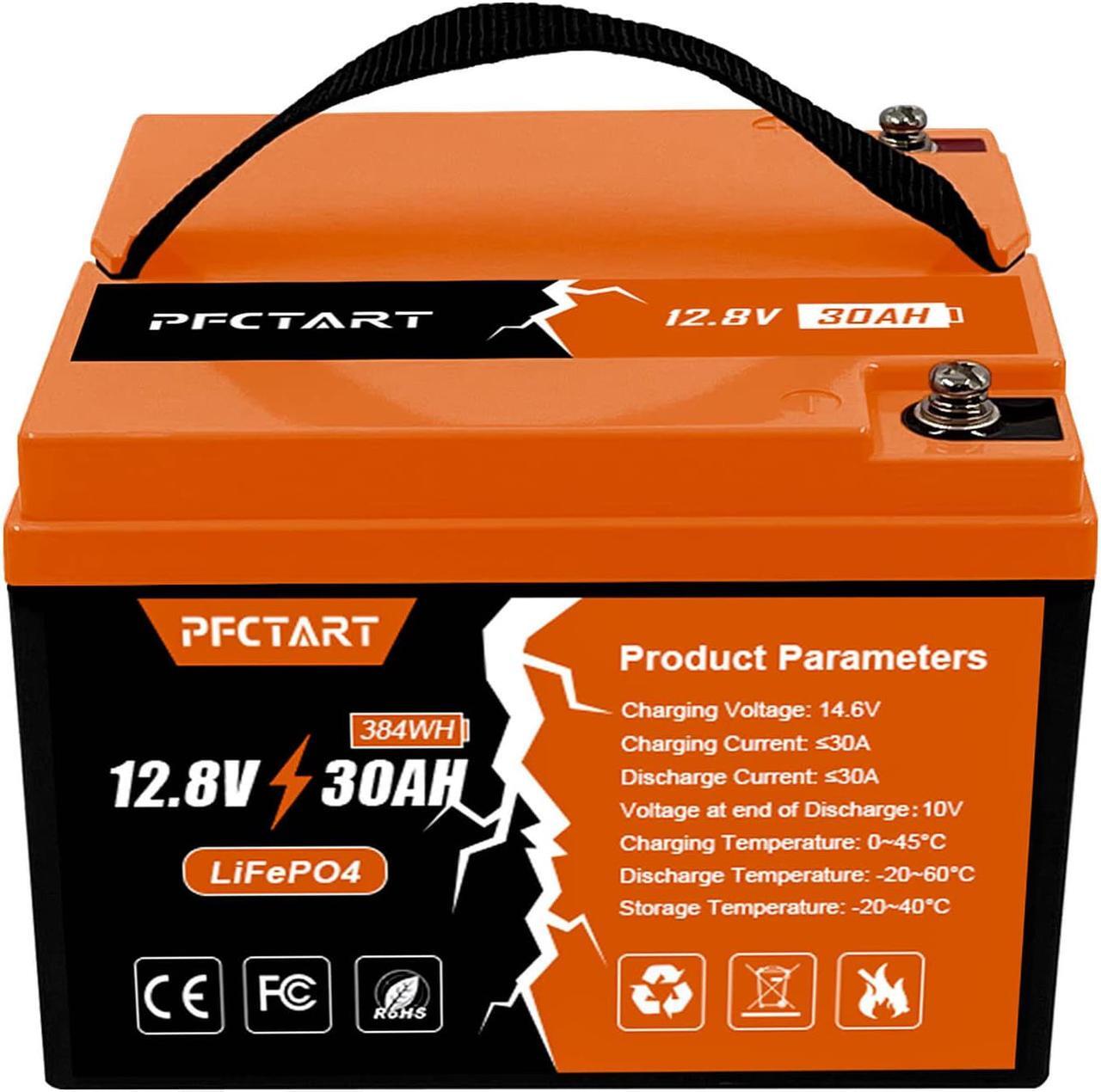

Specifications

Battery type: LIFEPO4

MODEL: 30Ah 12.8V (4S5P)

Rated capacity: 30Ah (384WH)

Normal voltage: 12.8V

Discharge termination voltage: 10.0V

Charging voltage: 14.6V

Internal resistance: 180m

Single cell: IFR 32700 3.2V 6000mAh

Standard charging.

Continuous current: 0.2C 5A

Continuous voltage: 14.6V

Cut-off current: 0.01 C

Standard discharge: Constant current 0.2C 5A end voltage 10.0V

Max. charging continuous current: 30A

Maximum discharge continuous current: 30A

Operating temperature range.

Charge: 0~45

Discharge: -20~60

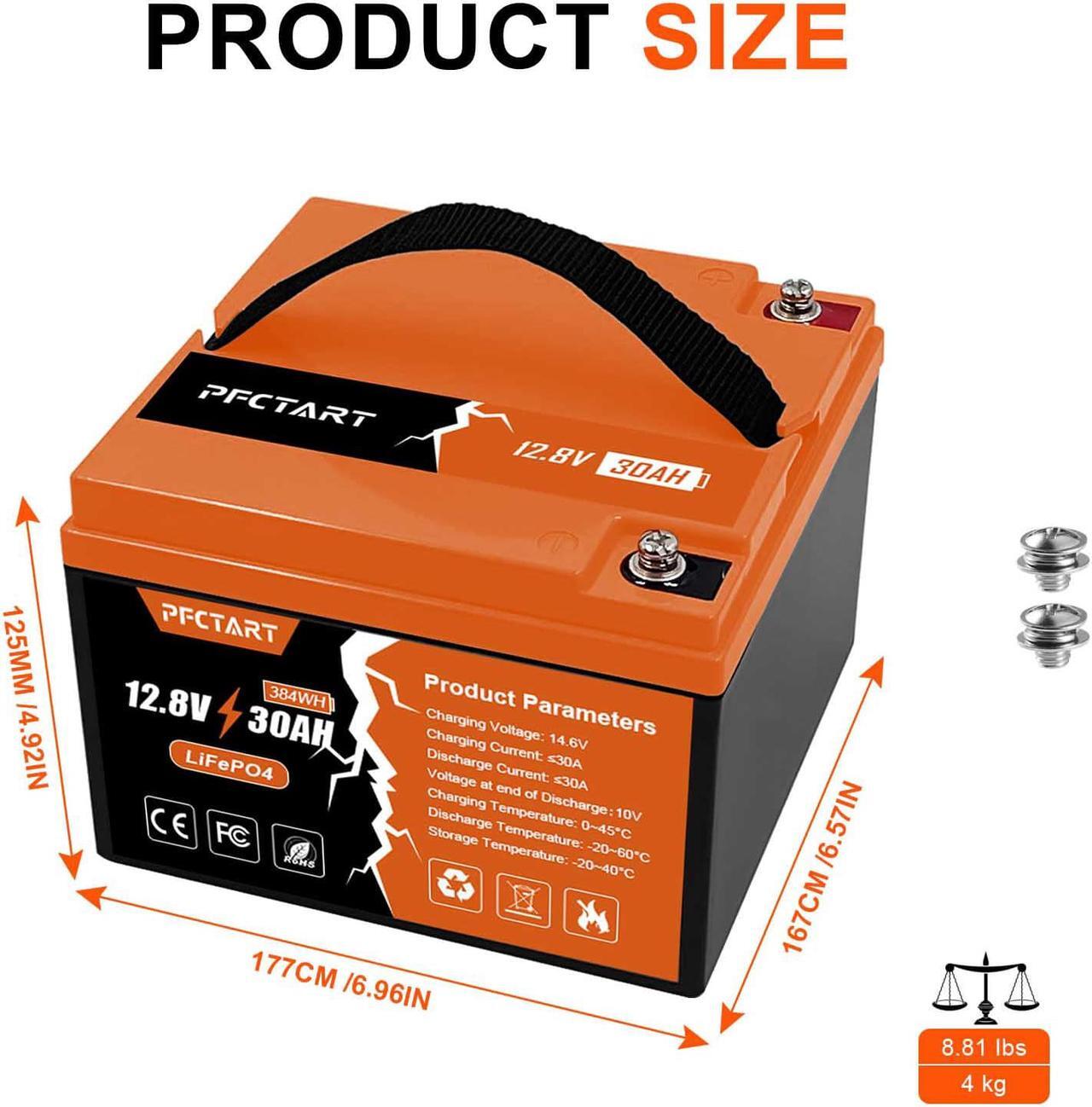

Product size: 177*167*125mm

Weight: 4kg( 8.81 lbs)

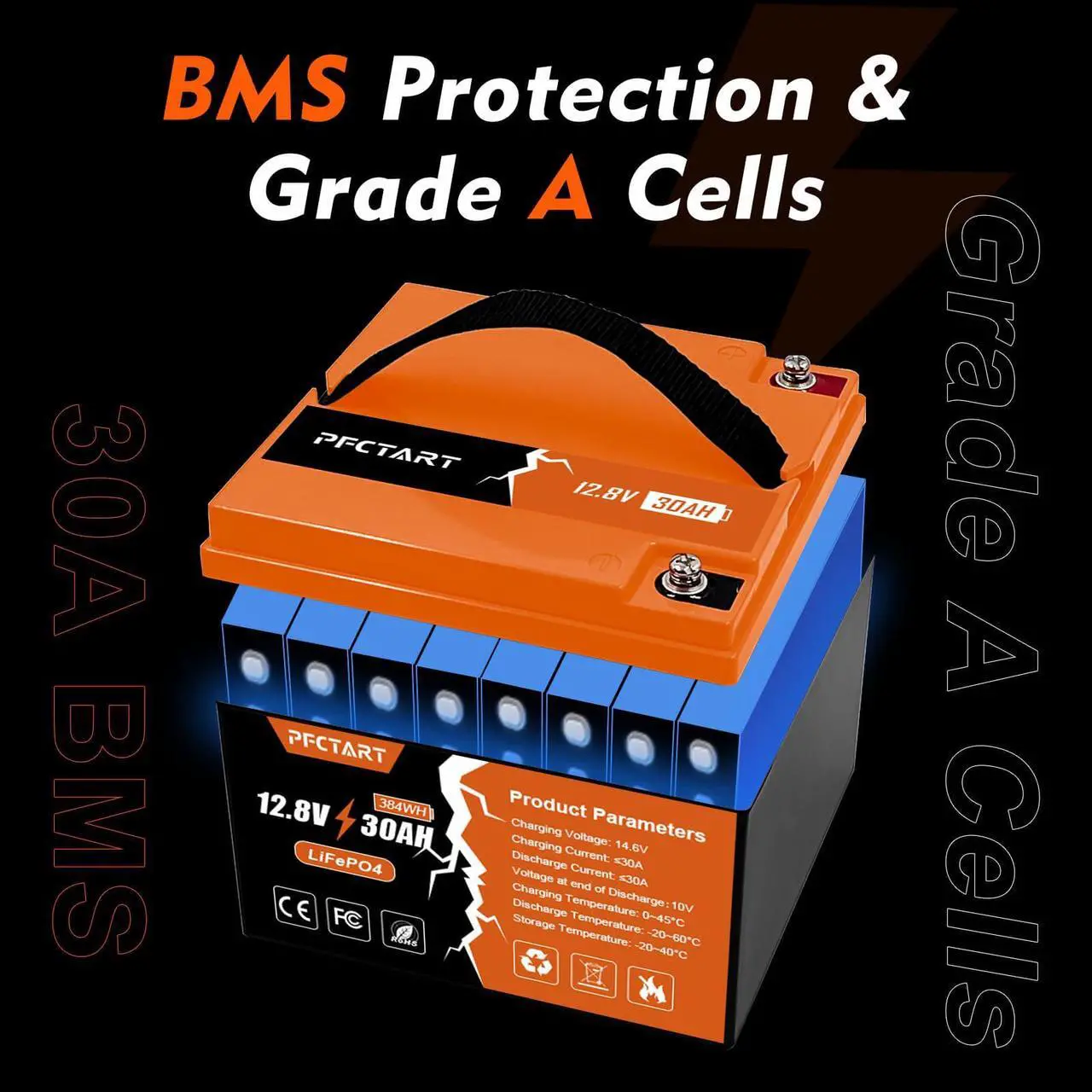

BMS protection

Cell overcharge detection voltage: 3.90V ±50mV

Cell overcharge recovery voltage: 3.80V ±100mV

Cell over-discharge detection voltage: 2.00V ±100mV

Cell over-discharge recovery voltage: 2.50V ±100mV

Rated operational charge current: 30A

Over current detection: 60±5A

PCM impedance: 50m


Note

It does not have series/parallel protocol, please do not use it for multiple series or parallel installations.
