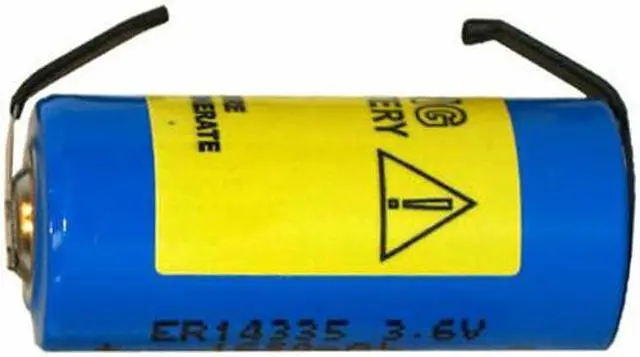

Chemistry: Lithium-thionyl chloride (Li-SOCl2) technology
Nominal capacity: 1650 mAh
Open circuit voltage: 3.66V (at +20C +68F)
Nominal voltage: 3.6V (at 1mA +20C +68F)
Max.
Continuous current: 70 mA Max
Pulse current: 140 mA
Brand: Blue Sleeve
Storage Temperature: +30C +86 F max (recommended)
Operating temperature: -55C / +85C
Terminal: Spot Welded Tabs on Both Ends
Diameter (max): 14.5 mm ( 0.55 in)
Height (max): 33.5 mm ( 1.32 in)
Typical weight: 14g ( 0.5 oz)
Backup power for circuit board.
General purpose; camera/electronic cells
Medical equipment; military/aerospace
Telecommunications; water/electricity meter
LED lighting applications
Others
Tadiran TL-2155, Tadiran TL-4955, Tadiran TL-5155, Tadiran TL-5955
Xeno XL-055F
This battery is not rechargeable. Do not try to recharge.
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need or consult ABLE.
Don't use different models of battery in series.
Soldering the tab should be finished in few seconds.
Do not use if the battery casing was mangled
