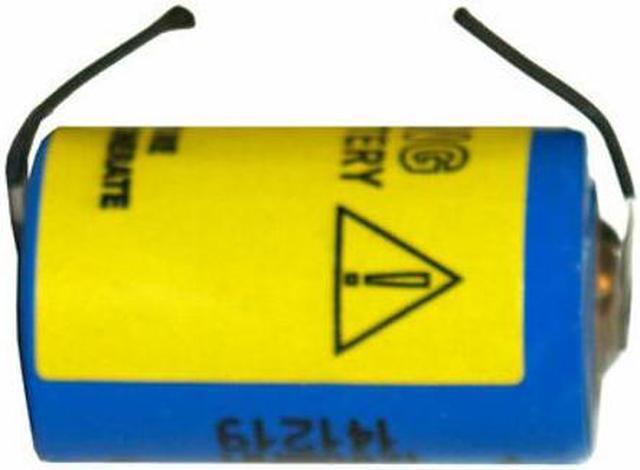

Chemistry: Lithium-thionyl chloride (Li-SOCl2) technology
Nominal capacity: 1200 mAh
Open circuit voltage: 3.66V (at +20C +68F)
Nominal voltage: 3.6V (at 1mA +20C +68F)
Storage Temperature: +30C +86 F max (recommended)
Brand: Power Portable
Terminal: Spot Welded tabs on each end
Operating temperature: -55C / +85C
Diameter (max): 14.5 mm ( 0.55 in)
Height (max): 25.25 mm (1 in)
Typical weight: 12g ( 0.4 z)
Backup power for circuit board.
General purpose; camera/electronic cells
Medical equipment; military/aerospace
Telecommunications; water/electricity meter
LED lighting applications
Others
Tadiran TL-5902, TL-2150, TL-5151, TL-5902, TL-5101, TL-5111, Saft LS-14250, LS-14250c, Toshiba ER3v, Sonnenschein SL-350/S, SL-750/S, SL-150/S, pmd 14250, sx 14250, tt 14250, AMD 14250, tx 14250, ca 14250, alpha 14250, km 14250, BM 14250, IP 14250, ex 14250, qm 14250, gx 14250, ww 14250, dx 14250, sm 14250, bk 14250
This battery is not rechargeable. Do not try to recharge.
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need or consult ABLE.
Don't use different models of battery in series.
Soldering the tab should be finished in few seconds.
Do not use if the battery casing was mangled
The manufactured date appears on the battery. The battery has a shelf life of 7 - 10 years.
