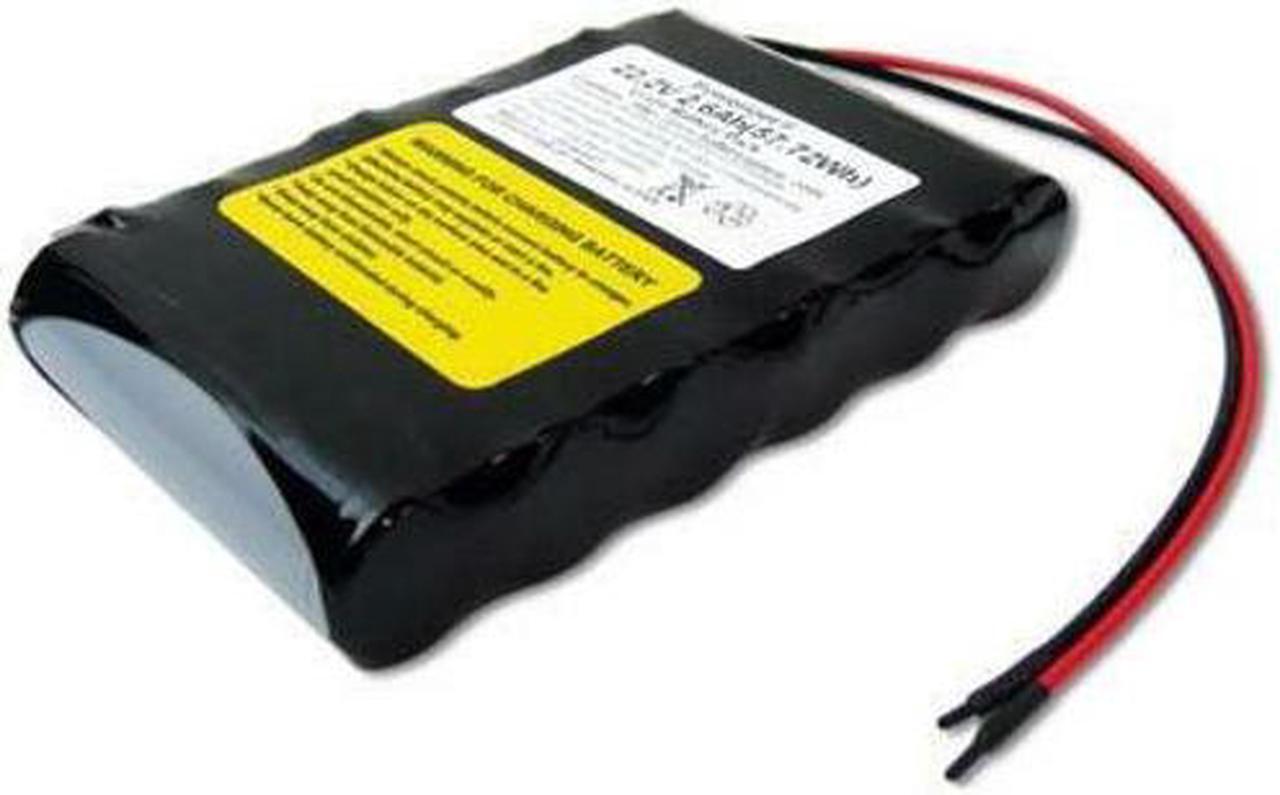

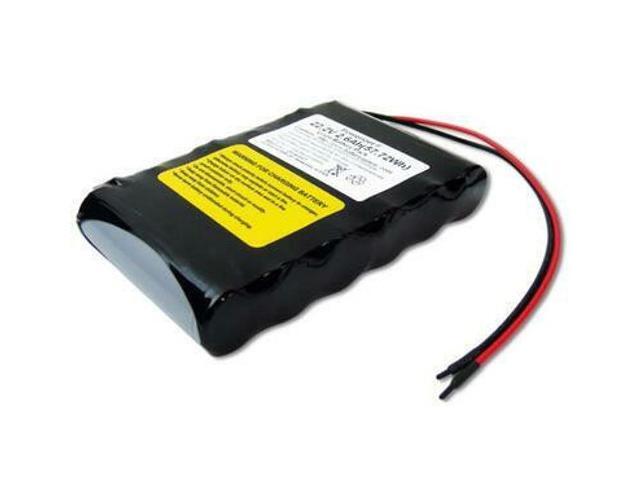

22.2 Volt Lithium Ion Battery Pack (2600 mAh) with Protection IC
- 22.2 Volt Lithium Ion Battery Pack (2600 mAh) with Protection IC
+
+
Overview
Specs
Reviews
Li-Ion Size: 6 x 18650 Cells (cylindrical)
Cell Type: 2600mAh (ICR18650 B4)
Capacity: 2600 mAh
Chemistry: Lithium Ion (Li-Ion)
Working Voltage: 22.2V
Peak Voltage: 25.9V
Cut off voltage: 16.5V
Protection: PCB - 6 Amp (Protects from Overcharge, Overdischarge, Over Drain and Short Circuits)
Protection: Polyswitch - 2 amp (Limits Max Discharge and Protect wrong Polarity)
Max Charging Current: 2 Amp
Max Discharging Current: 2 Amp (Limited by Polyswitch)
Length: 4.3" (109mm)
Width: 2.8" (71mm)
Height: 0.75" (19mm)
Weight: 11 Oz (312 Gr)
No memory effect
Longer storage life then NiMH Batteries
Light weight and higher energy density than any rechargeable battery
Installed PCB (6 Amp) will prevent the battery pack from over charge (> 25.95V ), over discharge( < 15V), Overdrain (> 6.0A mp) and Short Circuits. It helps protect battery chemistry integrity and prolongs battery life.
2 Amp polyswitch installed to limit max. discharging current at 2 A and to protect wrong polarity.
The battery module is wrap by PVC shrink and with 18 G wire leads
UN 38.3 Passed for safe transport
Cell Type: 2600mAh (ICR18650 B4)
Capacity: 2600 mAh
Chemistry: Lithium Ion (Li-Ion)
Working Voltage: 22.2V
Peak Voltage: 25.9V
Cut off voltage: 16.5V
Protection: PCB - 6 Amp (Protects from Overcharge, Overdischarge, Over Drain and Short Circuits)
Protection: Polyswitch - 2 amp (Limits Max Discharge and Protect wrong Polarity)
Max Charging Current: 2 Amp
Max Discharging Current: 2 Amp (Limited by Polyswitch)
Length: 4.3" (109mm)
Width: 2.8" (71mm)
Height: 0.75" (19mm)
Weight: 11 Oz (312 Gr)
No memory effect
Longer storage life then NiMH Batteries
Light weight and higher energy density than any rechargeable battery
Installed PCB (6 Amp) will prevent the battery pack from over charge (> 25.95V ), over discharge( < 15V), Overdrain (> 6.0A mp) and Short Circuits. It helps protect battery chemistry integrity and prolongs battery life.
2 Amp polyswitch installed to limit max. discharging current at 2 A and to protect wrong polarity.
The battery module is wrap by PVC shrink and with 18 G wire leads
UN 38.3 Passed for safe transport
