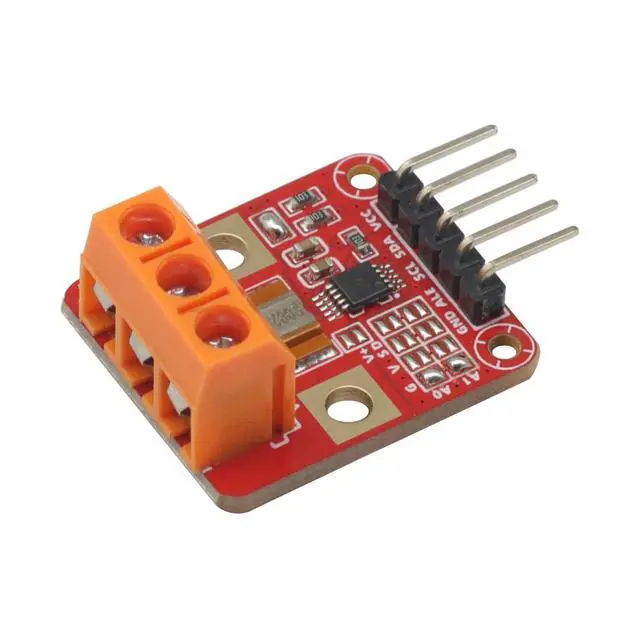

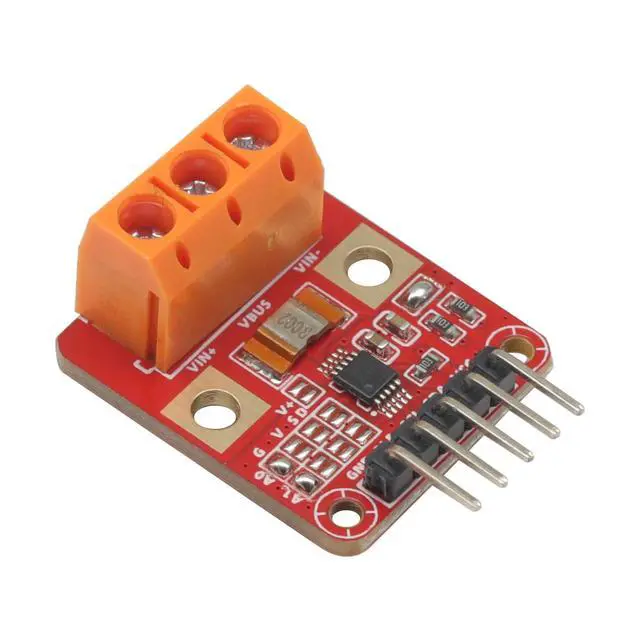

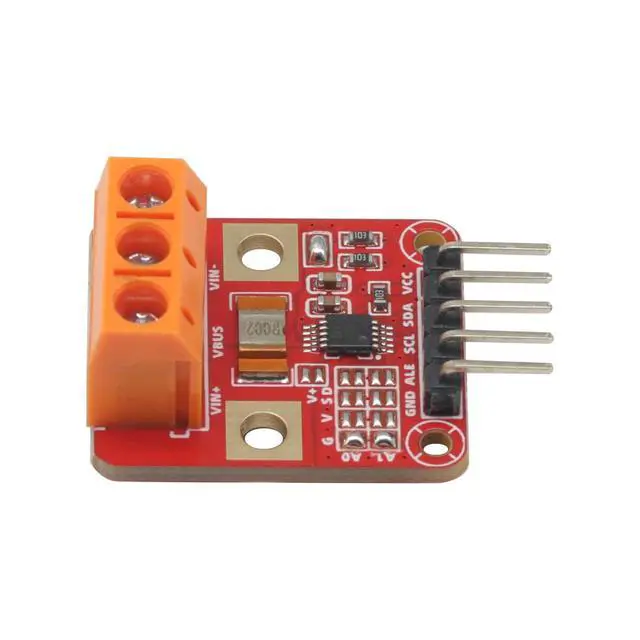

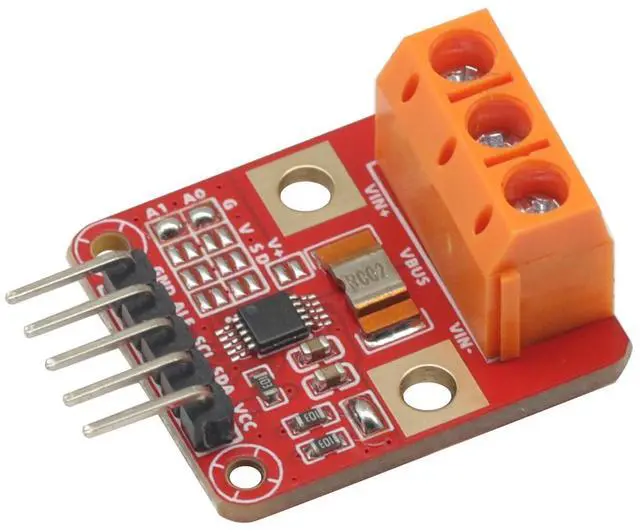

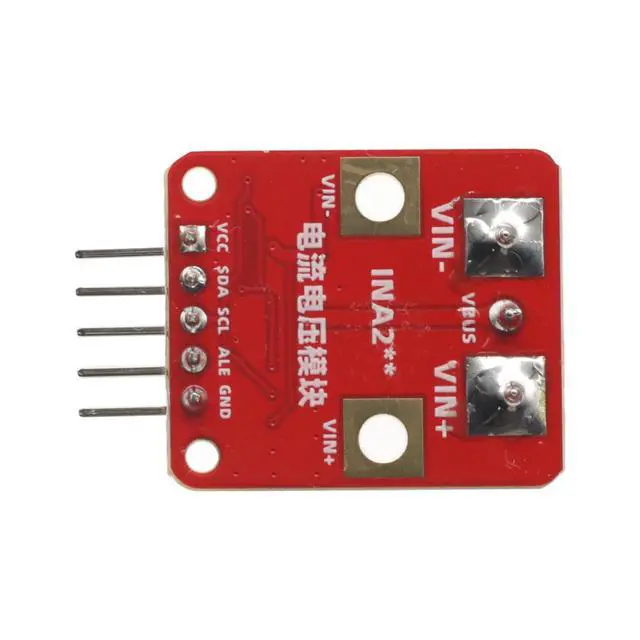

INA228 High Precision Current Voltage Power Monitor Sensor Module for Measuring Voltage Current
- Measurement voltage: -0.3 V to 85V; Measurement current: 10A (R002 resistor 24V voltage); Supply voltage: 2.7V to 5.5V; Interface: I2C,I2C address: 16 addresses can be set by solder pads I2C; Accuracy: Current ±1%, Voltage ±0.5%
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Measurement voltage: - 0.3 V to 85V
Measurement current: 10A (R002 resistor 24V voltage)
Supply voltage: 2.7V to 5.5V
Interface: I2C

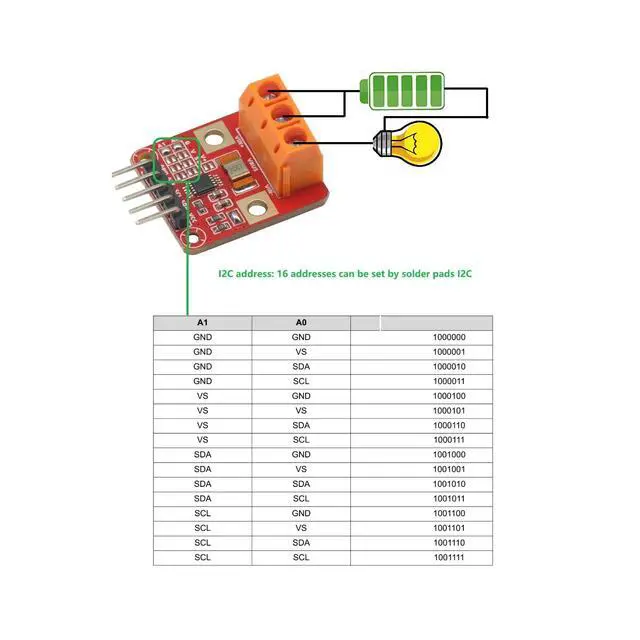

I2C address: 16 addresses can be set by solder pads
I2C Accuracy: Current ±1%, Voltage ± 0.5 %
Resolution: 20-bit
Current consumption: 640µA
Energy/Charge accuracy: 1.0 % (For Full-scale)
Measurement current: 10A (R002 resistor 24V voltage)
Supply voltage: 2.7V to 5.5V
Interface: I2C
I2C address: 16 addresses can be set by solder pads
I2C Accuracy: Current ±1%, Voltage ± 0.5 %
Resolution: 20-bit
Current consumption: 640µA
Energy/Charge accuracy: 1.0 % (For Full-scale)
